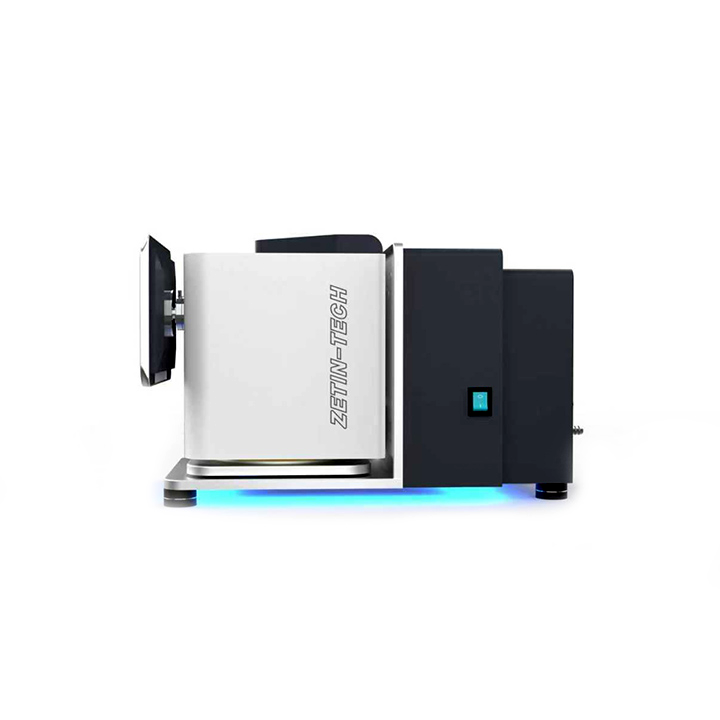

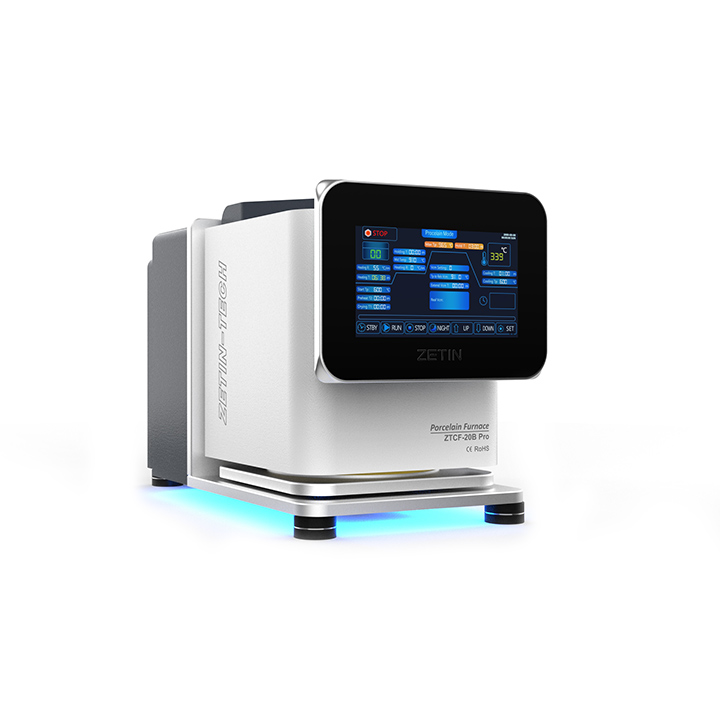

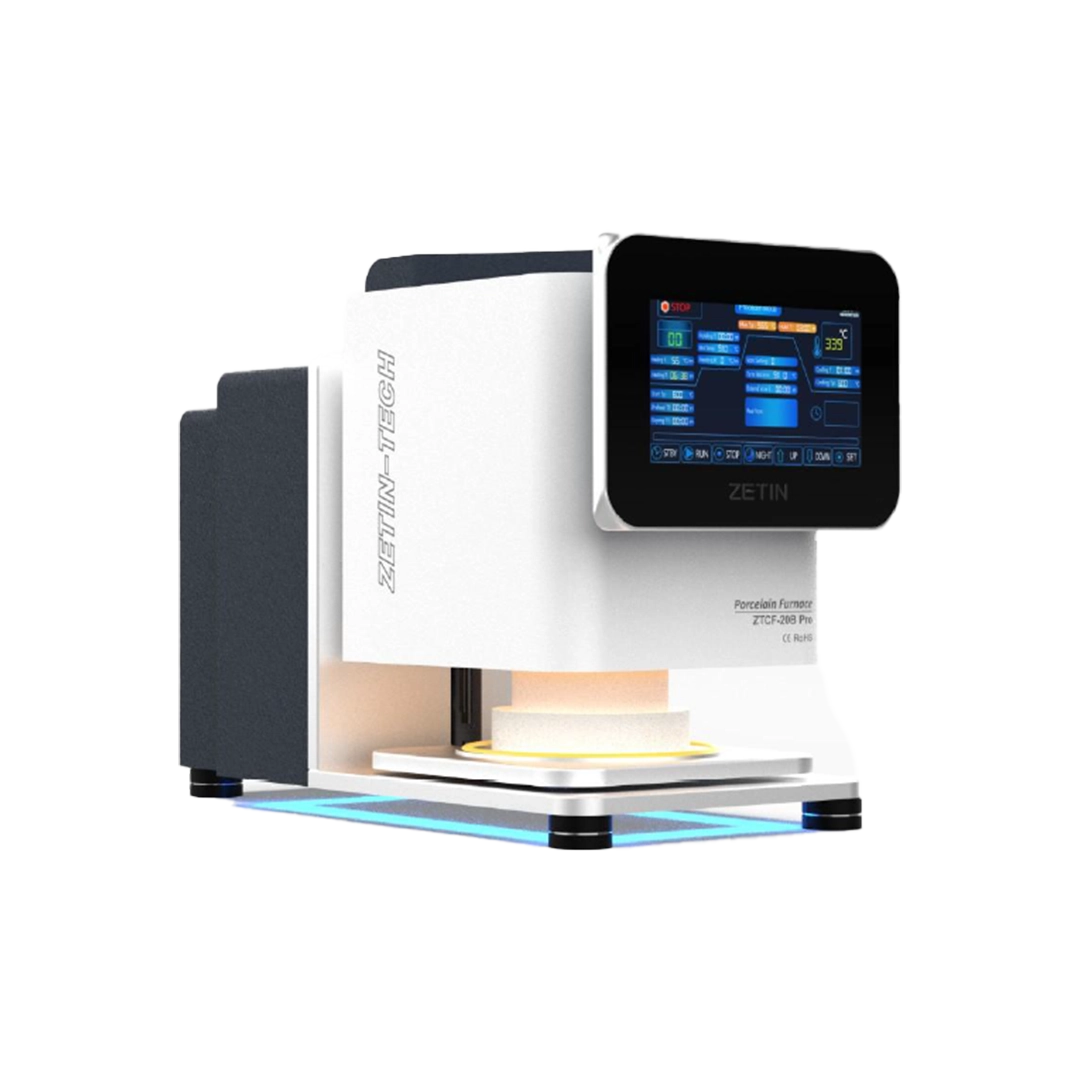

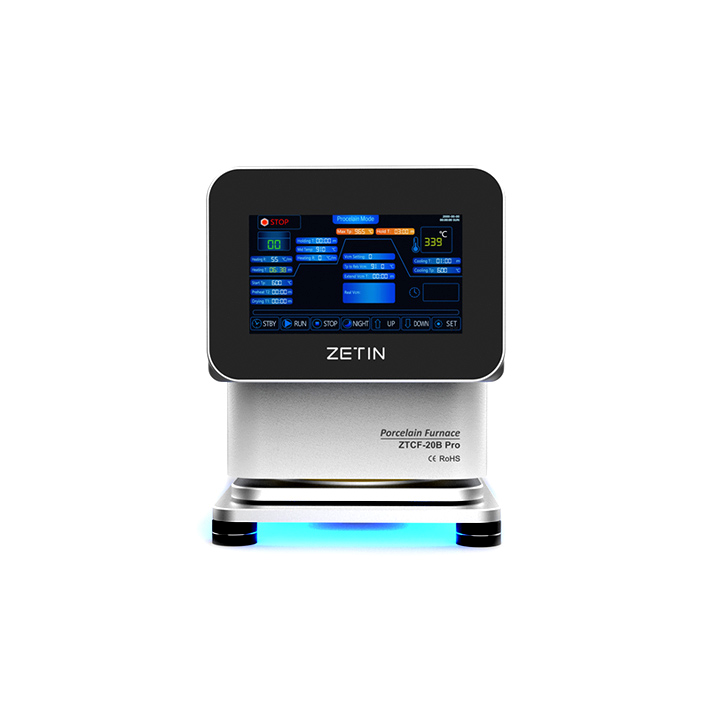

Zetin Porcelain Furnace ZTCF-20B Pro

SKU:123241
  • Compact Design
  • Precise Temperature Control
  • Advanced Vacuum System
Product enquiryIn stock
Contact Us
WhatsApp
Technical SupportDelivery & Setup

Product Description

Zetin Porcelain Furnace ZTCF-20B Pro is designed for accurate porcelain firing with stable temperature control and reliable vacuum performance. Its compact lifting chamber structure reduces overall size while maintaining efficient heating and smooth operation for daily dental laboratory workflows.

Zetin Porcelain Furnace ZTCF-20B Pro With PID intelligent temperature control and imported heating wire, the furnace delivers uniform heating and precise temperature accuracy within ±1°C. The large color touch screen provides a clear visualization interface for easy operation.

Specifications

Dimensions
460 × 220 × 300 mm
Net Weight
18 Kg
Chamber Size
Ø100 × 70 mm :
Voltage
220V, 50/60 Hz
Programs:
100 programs (expandable up to 500 programs)
Heating Rate:
≤140°C/min
Maximum Vacuum:
-98 kPa
Maximum Temperature:
1300°C
Temperature Accuracy
±1°C
Control System:
PID intelligent temperature control
Heating Element:
Imported heating wire
Power
1600 W
Vacuum System:
Integrated vacuum sensing system
Display:
Large color touch screen

Features

Compact Design

Lifting chamber structure reduces footprint while maintaining high performance.

Precise Temperature Control

PID system ensures stable firing accuracy within ±1°C.

Advanced Vacuum System

Imported sensor provides reliable vacuum stability during firing cycles.

Glass Ceramic Compatibility

Multi-stage heating supports a wide range of ceramic materials.

Preset Program Library

Built-in programs (Ivoclar, Vita, Noritake) for fast workflow setup.

Intuitive Touch Interface

Large color display with icon-based navigation for easy operation.
