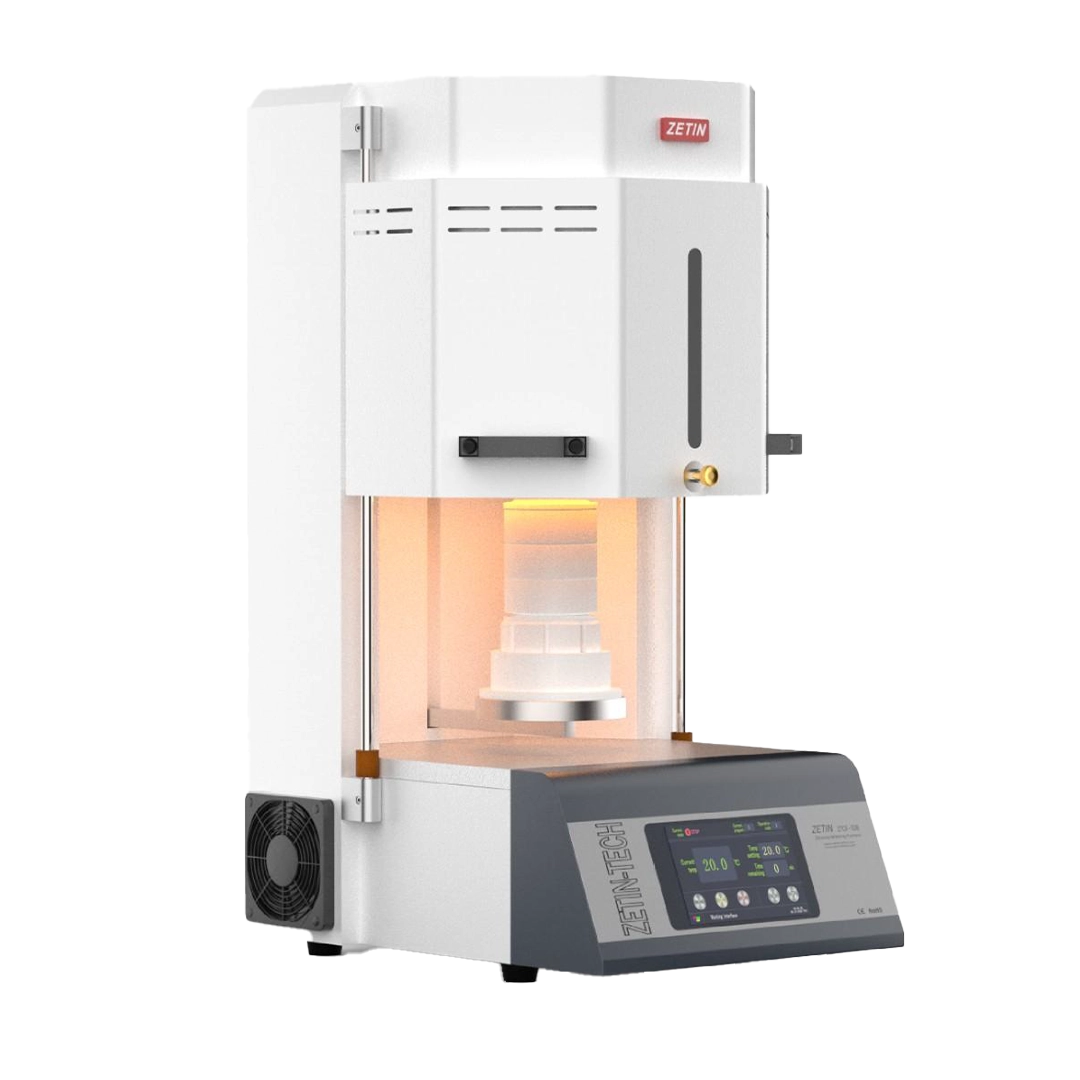

Zetin Sintering Furnace ZTCF-30B Plus

SKU:123143
  • Double Efficiency
  • Max 150 units
  • High-Quality Sintering
Unit priceIn stock
AED 15.900,00
WhatsApp
Technical SupportDelivery & Setup

Product Description

Zetin Sintering Furnace ZTCF-30B Plus is designed to deliver rapid and stable sintering performance for dental zirconia restorations. With a complete fast sintering cycle of only 65 minutes, including heating, holding, and cooling, it significantly shortens production time while maintaining high sintering quality. The Zetin Sintering Furnace ZTCF-30B Plus is equipped with a high-purity heating element and PID intelligent temperature control; the furnace ensures uniform temperature distribution and precise control within ±1°C.



Specifications

Model
ZTCF-30B Plus
Max.Temperature
1730°C
Temperature Accuracy
±1℃
Total Program No
100 programs, with power-off memory function
Chamber Size
Ø 110*120 mm
Fast Program
No.2
Cleaning Program
No.40
Heating Element
High purity heater especially for dentistry
Touch Screen
7” TFT Color
Regular Program
Can stack 3 layers of the crucible and sinter 150 units teeth;
Power
3KW
Voltage
220V 50/60HZ 110V 50/60HZ
Size
590*470*850 mm (L*W*H)
Net Weight
85 kg

Features

Double Efficiency

Fast sintering,65 minutes including (heating, holding, and cooling), resolve expedited projects.

Max 150 units

Can sinter 3 layers of crucibles up to 150 units,improving production efficiency.

High-Quality Sintering

High-purity dental silicon-molybdenum rods,no pollution, uniform temperature,avoiding under-firing, no inaccurate color

Precision Temperature Control

PID Intelligent temperature control system, achieves a temperature control accuracy of ±1°C to enhance product quality.

Program Preset Function

It can store 40 programs, enabling one-click selection of preset programs, fast and efficient.

Energy-Saving

Using imported insulation materials, energy-efficient and pollution-free, with excellent heat retention to ensure uniform temperature distribution.

High-Definition Touch Screen

Featuring large-size touch screen, data visualization interface, and icon-based operation buttons,simple and easy to use.

Memory Function

Resilient to sudden power outages, it can resume work from saved data after restart,ensuring uninterrupted operation.

Documents

Product catalog & brochure

Zetin Sintering Furnace ZTCF-30B Plus

Explore the product information and technical details.

View / downloadOpens in a new tab
