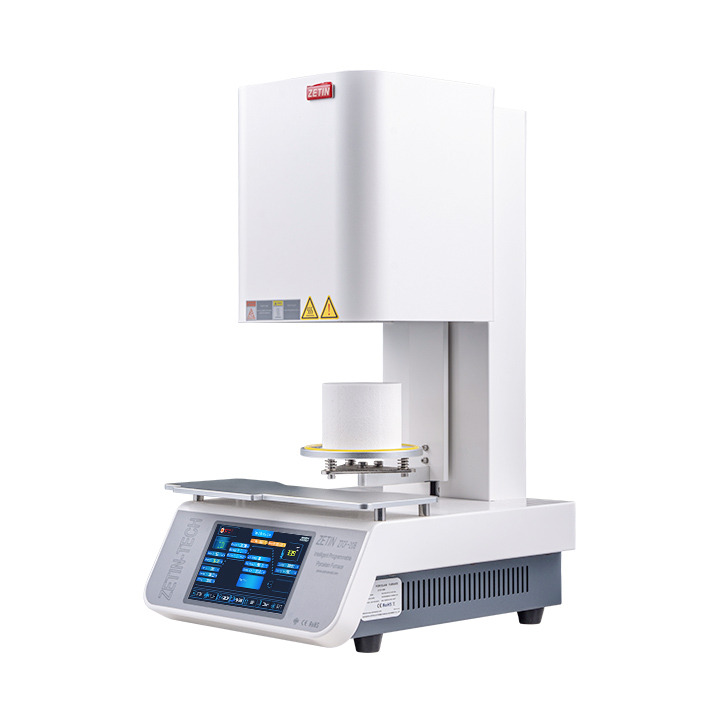

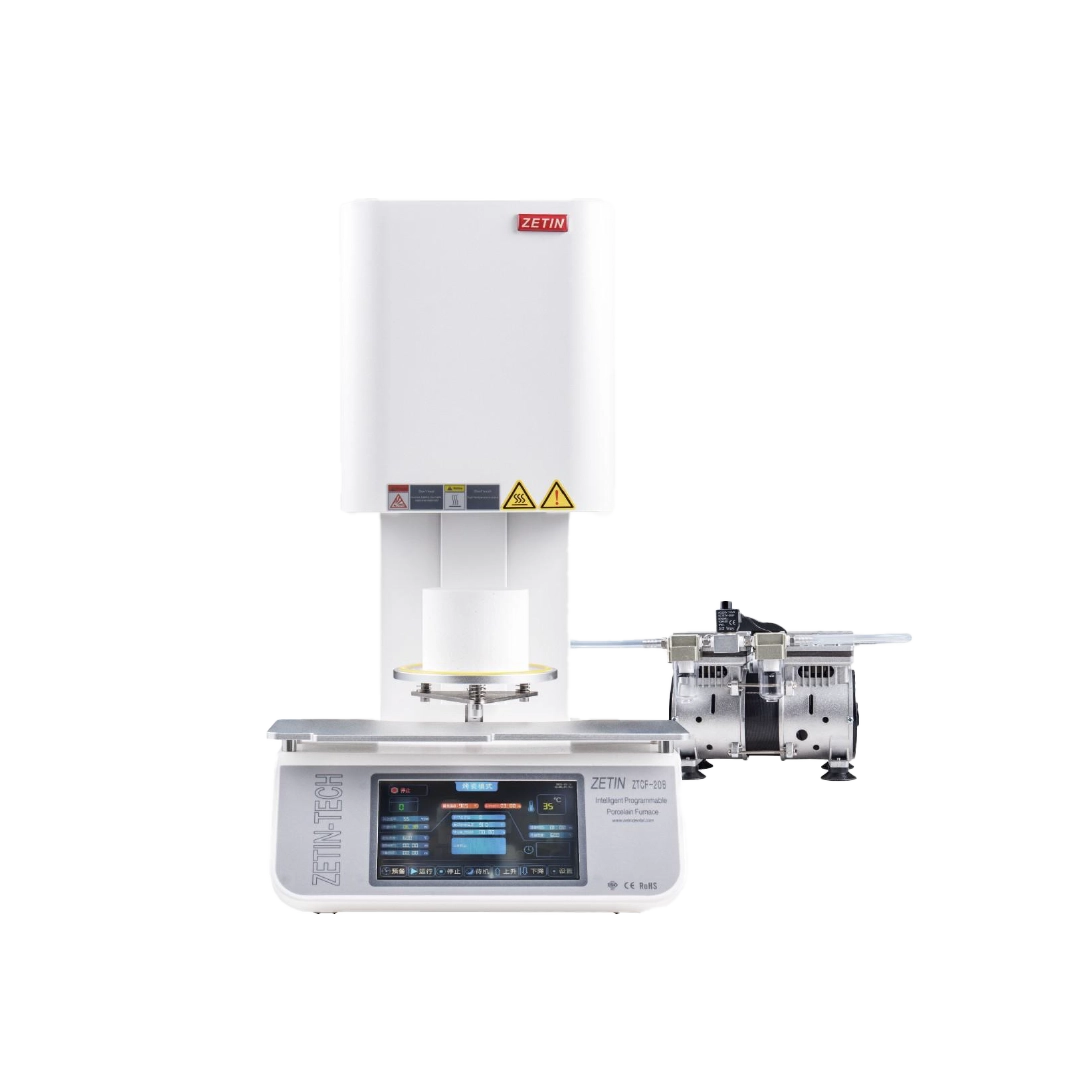

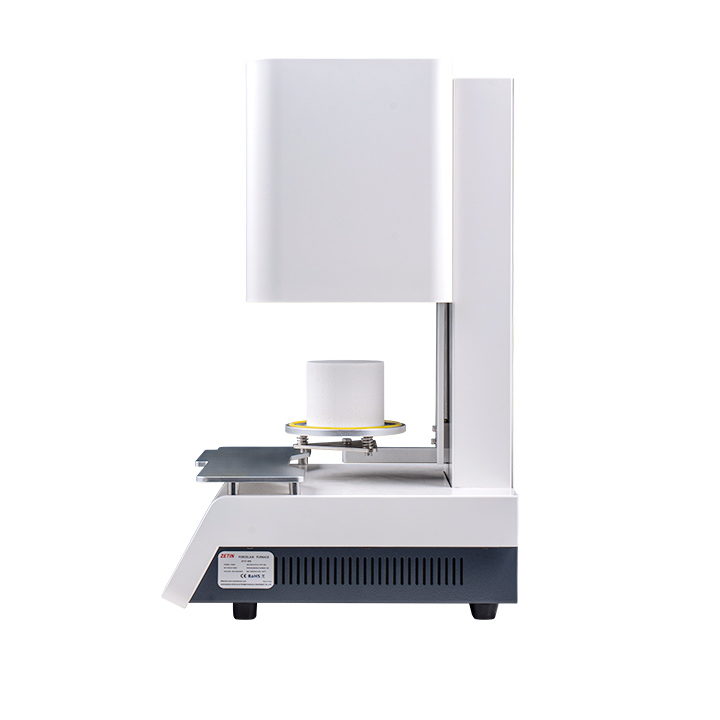

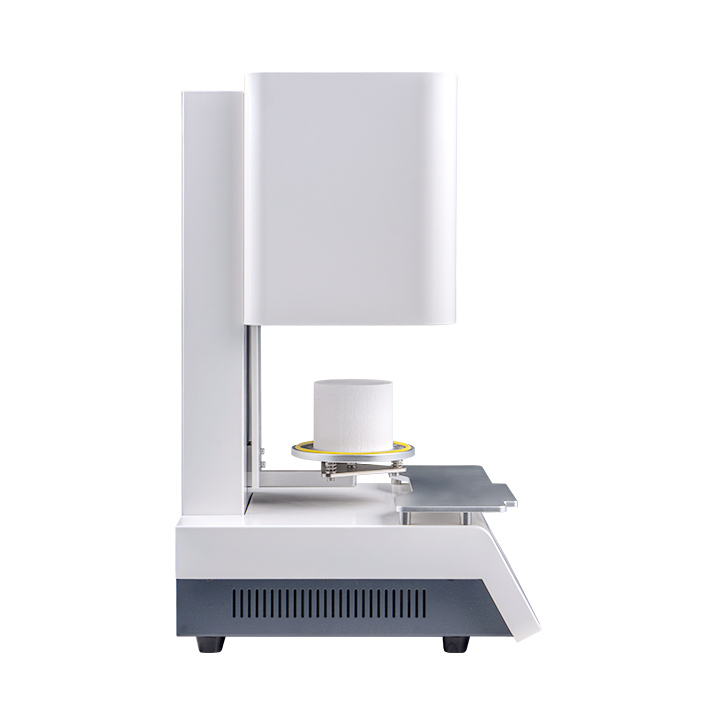

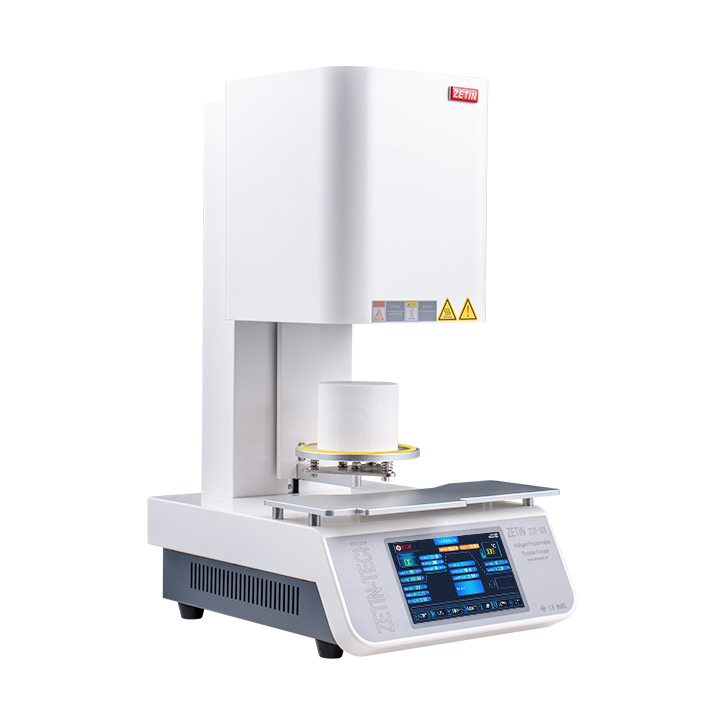

Zetin Porcelain Furnace ZTCF-20B

SKU:123239
  • High-Precision PID Temperature Control
  • Uniform & Long-Life Heating System
  • Intelligent Program Storage
Unit priceIn stock
AED 6.900,00
WhatsApp
Technical SupportDelivery & Setup

Product Description

Zetin Porcelain Furnace ZTCF-20B is a high-performance solution engineered for creating superior dental restorations. It utilizes a high-quality imported heating wire for uniform heat distribution up to 1300°C, effectively avoiding under-firing and ensuring accurate, consistent color.

Operation is streamlined and intuitive thanks to a large-sized, high-definition touch screen with an icon-based interface. The furnace comes pre-equipped with programs for popular Ivoclar, Vita, and Noritake powders, allowing users to start working immediately.

Specifications

model
ZTCF-20B
Max.Temperature
1300℃
Heating Rate
≤140℃/min
Temperature Accuracy
±1℃
Power
1600W
Voltage
220V, 50/60HZ
Chamber Size
Ø100mm*70mm
Max.Vacuum
-98Kpa
Size
380*320*610 mm ( L*W*H )
Total Program No
100 programs (Can extend to 500 programs )
Net Weight
21 KG

Features

High-Precision PID Temperature Control

Achieves exceptional firing accuracy with a temperature deviation of only ±1°C, ensuring consistent porcelain quality, accurate shades, and reliable restoration results.

Uniform & Long-Life Heating System

Equipped with high-quality heating elements that provide uniform heat distribution, pollution-free operation, and long service life for stable daily performance.

Intelligent Program Storage

Stores up to 100 firing programs (expandable to 500), including preset programs for major porcelain systems such as Ivoclar, VITA, and Noritake, allowing easy and flexible operation.

Maintenance-Free Oil-Free Vacuum System

Features a low-noise, oil-free vacuum pump with accurate vacuum measurement up to -98 kPa, providing a clean and efficient firing environment without regular maintenance.

Large Color Touchscreen Interface

The intuitive full-color touchscreen displays all firing parameters clearly, enabling simple program selection, modification, and operation.

Advanced Thermal Insulation & Component Protection

Utilizes high-performance insulation materials and a unique vacuum pipeline filtration system to maintain temperature stability, improve energy efficiency, and extend the lifespan of internal components.
