Milling Machine

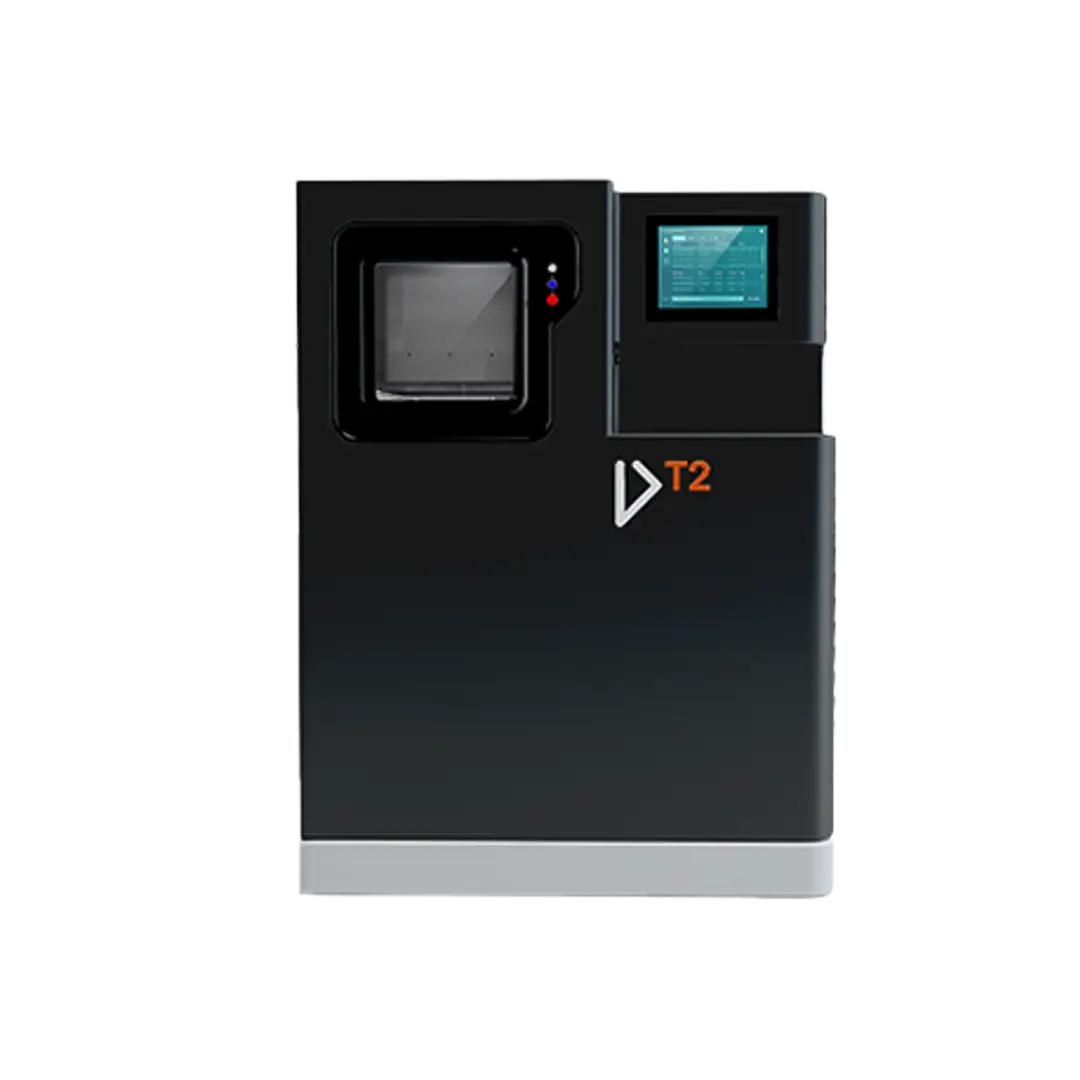

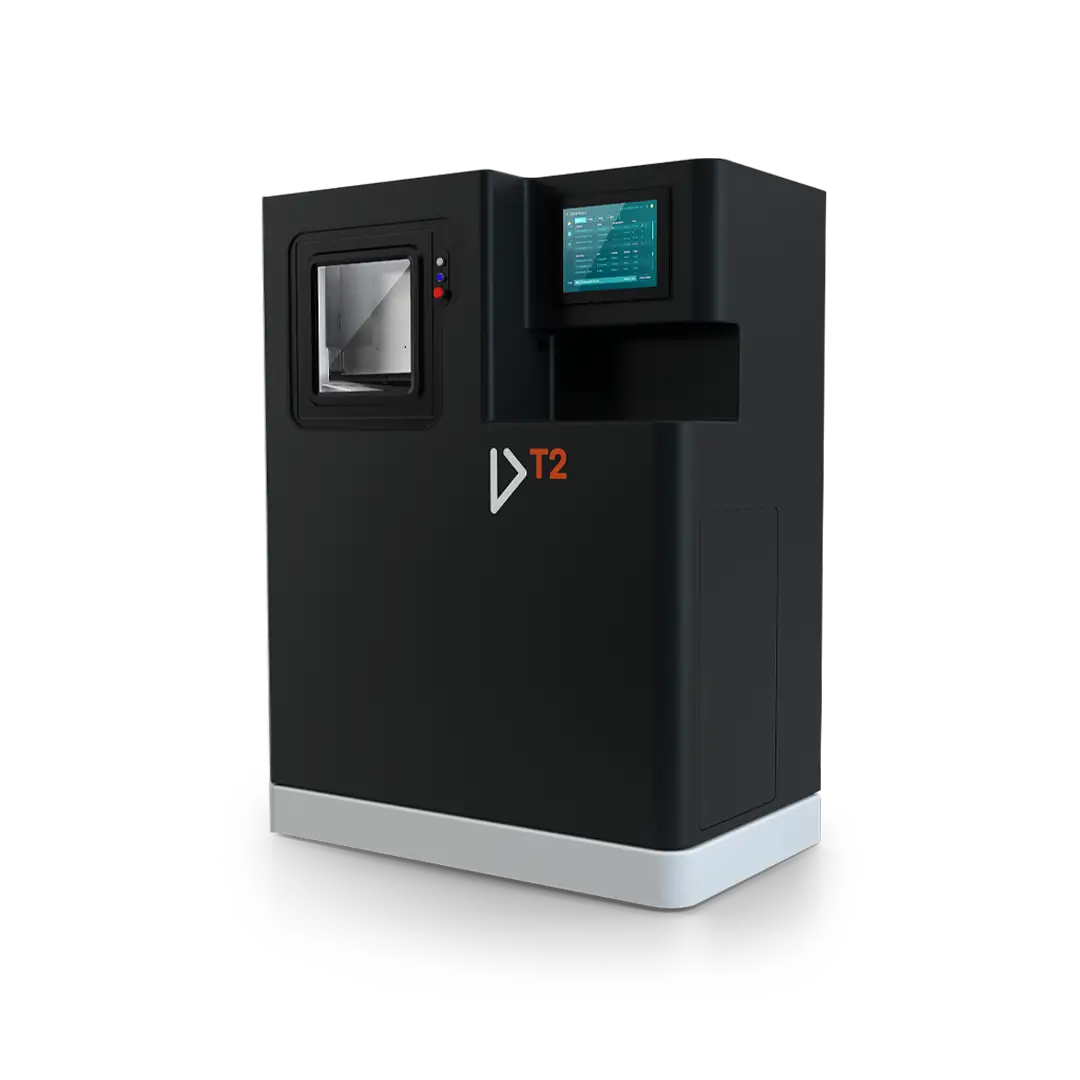

Dyamach DT2 Milling Machine

SKU:112209
Weight
590 Kg / 1300.73 lb
Unit priceIn stock
AED 399.900,00
WhatsApp
Technical SupportDelivery & Setup

Product Description

Dyamach DT2 Milling Machine
Overview

Dyamach DT2 Milling Machine is a stable and powerful 5-axis vertical CNC milling machine engineered for high-precision machining of demanding materials such as titanium and cobalt-chromium. Designed for dental laboratories and milling centers aiming to expand production capabilities, the Dyamach DT2 Milling Machine delivers unparalleled performance and reliability in metal machining processes.
Built around a rigid, compact structure, the Dyamach DT2 Milling Machine minimizes vibration and maximizes stability to ensure exceptional tool life and surface finish quality. Its advanced system architecture allows you to reduce tool wear while increasing machining speed, making it ideal for delivering consistent, high-quality parts even under continuous operation.
Equipped with a high-speed spindle and a 36-position automatic tool carousel, the DT2 supports both dry and wet machining, enabling uninterrupted workflows and optimal flexibility. The automatic calibration and robust axis motion further enhance precision and repeatability, contributing to increased productivity and profitability in demanding production environments.

Specifications

Model
DT2
Machining type
Wet & Dry
Axis
5 Servo Axis (Rotative Axis A)
Size
125 x 70 x h160 cm / 49.21 x 27.56 x h62.99 inch
Weight
590 Kg / 1300.73 lb
Power supply
230V 50/60Hz
Power
5 kW
Rated pressure
6 Bar
Spindle power
2,6 kW
Spindle speed
50.000 rpm
Spindle collet
Ø 3 mm (Optional) – 4 mm (Optional) – 6 mm (Standard) 0.12 inch (Optional) - 0.16 inch (Optional) - 0.24 inch (Standard)
Blank diameter
Ø 98±0.5
Input increment
X,Y,Z=0.001mm A,B=0.001°
Axis repeatability
X,Y,Z=0.005mm A,B=0.005°
Axis travels
X=165 Y=140 Z=110 A=±360 B=+45-225
Axis speed
X,Y,Z=4500mm/min A,B=4500°/min
Processing
Anatomical bridges and crown - Bridge and Crown - Bridge and Wax crown - Abutment - Bars and bridges - Selective laser melting - Glass ceramic - Denture - Partial Prosthesis - Bite - Primary and secondary with screw thread
Materials
Zirconium - Wax Dry / Wet - Pmma Dry / Wet - Peek - Composite - Carbon - Plastic materials - Glass fiber - Glass ceramic - Aluminium - Titanium - Cobalt chrome - Pre-milled Tit / CoCr

Features

Size and weight

125 x 70 x h160 cm / 590 Kg 49.21 x 27.56 x h62.99 inch / 1300.73 lb

Spindle power and speed

2,6 kW / 50.000 rpm

Machining type

Dry / Wet

Collet diameter

Ø 3 mm (Optional) – 4 mm (Optional) – 6 mm (Standard)0.12 inch (Optional) - 0.16 inch (Optional) - 0.24 inch (Standard)

Automatic calibration

YES

Rack carousel

36 tools

Documents

Product catalog & brochure

Dyamach DT2 Milling Machine

Explore the product information and technical details.

View / downloadOpens in a new tab
