Dyamach AS1 Milling Machine
Milling Machine

Dyamach AS1 Milling Machine

SKU: 112207
244,900.00 AED
Fast Delivery Available from local UAE stock for rapid dispatch and installation.
Technical Support Product guidance, onboarding, and technical assistance from our team.
Trusted Distribution Supplied by Futuremirates with genuine products and after-sales support.

Product Description

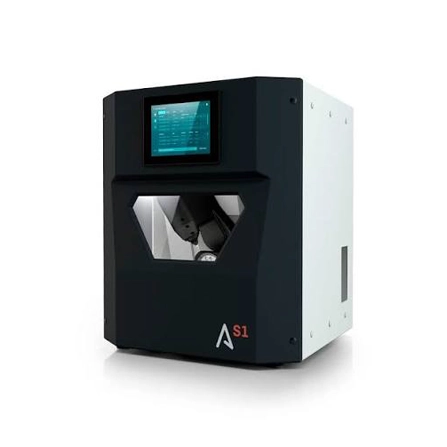

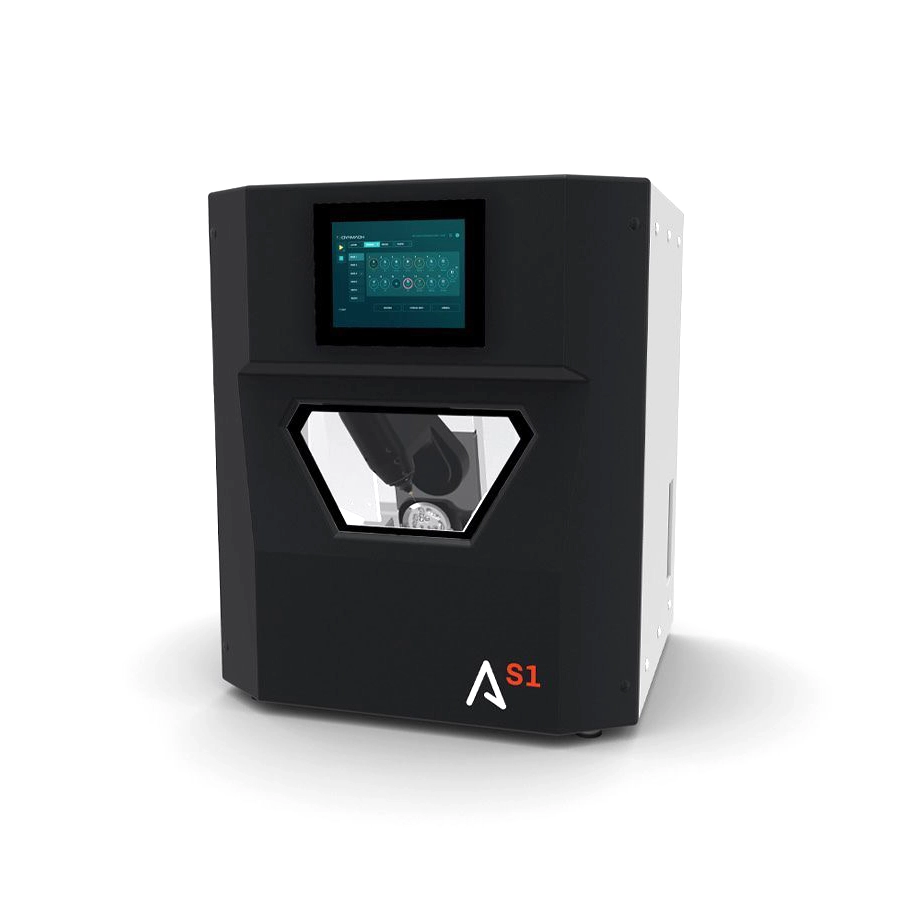

Dyamach AS1 Milling Machine
Overview

Dyamach AS1 Milling Machine is an advanced 5-axis dental milling machine engineered to deliver exceptional precision, efficiency, and versatility for modern dental laboratories. Designed for both dry and wet milling applications, the AS1 can process a wide range of materials, including zirconia, PMMA, PEEK, lithium disilicate, titanium, and cobalt-chrome. Its innovative tilting-head spindle technology, automatic calibration system, and 18-tool automatic changer ensure highly accurate and reliable production of crowns, bridges, implant abutments, dentures, and complex prosthetic restorations. Combining high-performance milling capabilities with user-friendly operation, the Dyamach AS1 is an ideal CAD/CAM solution for dental labs seeking superior quality, productivity, and workflow optimization.

Specifications

Model
AS1
Machining type
Wet & Dry
Axis
5 Servo Axis
Size
86 x 78 x h103 cm / 33.86 x 30.71 x h40.55 inch
Weight
300 Kg / 661.39 lb
Spindle Power
1 KW
Rated pressure
6 Bar
Spindle speed
60.000 rpm
Spindle collet
Ø 3 mm - 4 mm - 6 mm / 0.12 inch - 0.16 inch - 0.24 inch
Blank diameter
Ø 98±0.5
Input increment
X,Y,Z=0.001mm A,B=0.001°
Axis repeatability
X,Y,Z=0.005mm A,B=0.005°
Processing
Anatomical bridges and crown - Bridge and Crown - Bridge and Wax crown - Abutment - Bars and bridges - Selective laser melting - Glass ceramic - Denture - Partial Prosthesis - Bite - Primary and secondary with screw thread
Materials
Zirconium - Wax Dry / Wet - Pmma Dry / Wet - Peek - Composite - Carbon - Plastic materials - Glass fiber - Glass ceramic - Aluminium - Titanium - Cobalt chrome - Pre-milled Tit / CoCr

Features

Size and weight
86 x 78 x h103 cm / 300 Kg --- 33.86 x 30.71 x h40.55 inch / 661.39 lb
Spindle power and speed
1 kW / 60.000 rpm
Machining type
Dry / Wet
Collet diameter
Ø 3 mm / 4 mm / 6 mm Ø 0.12 inch / 0.16 inch / 0.24 inch
Automatic calibration
YES
Spindle tilt degrees
-92° > 42°
Removable rack-type tool magazine
18 tools
Rapid loading / unloading
Disc holder
