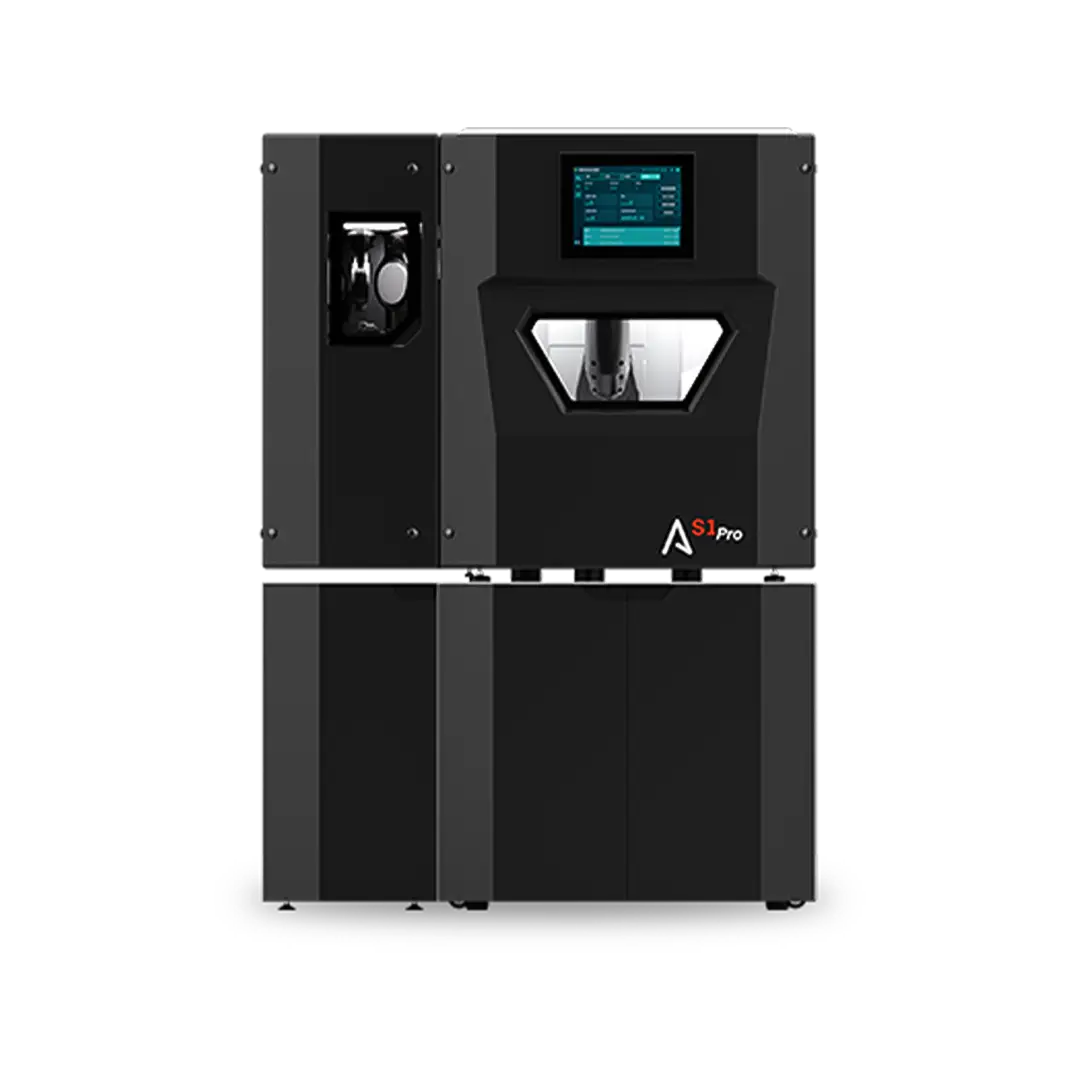

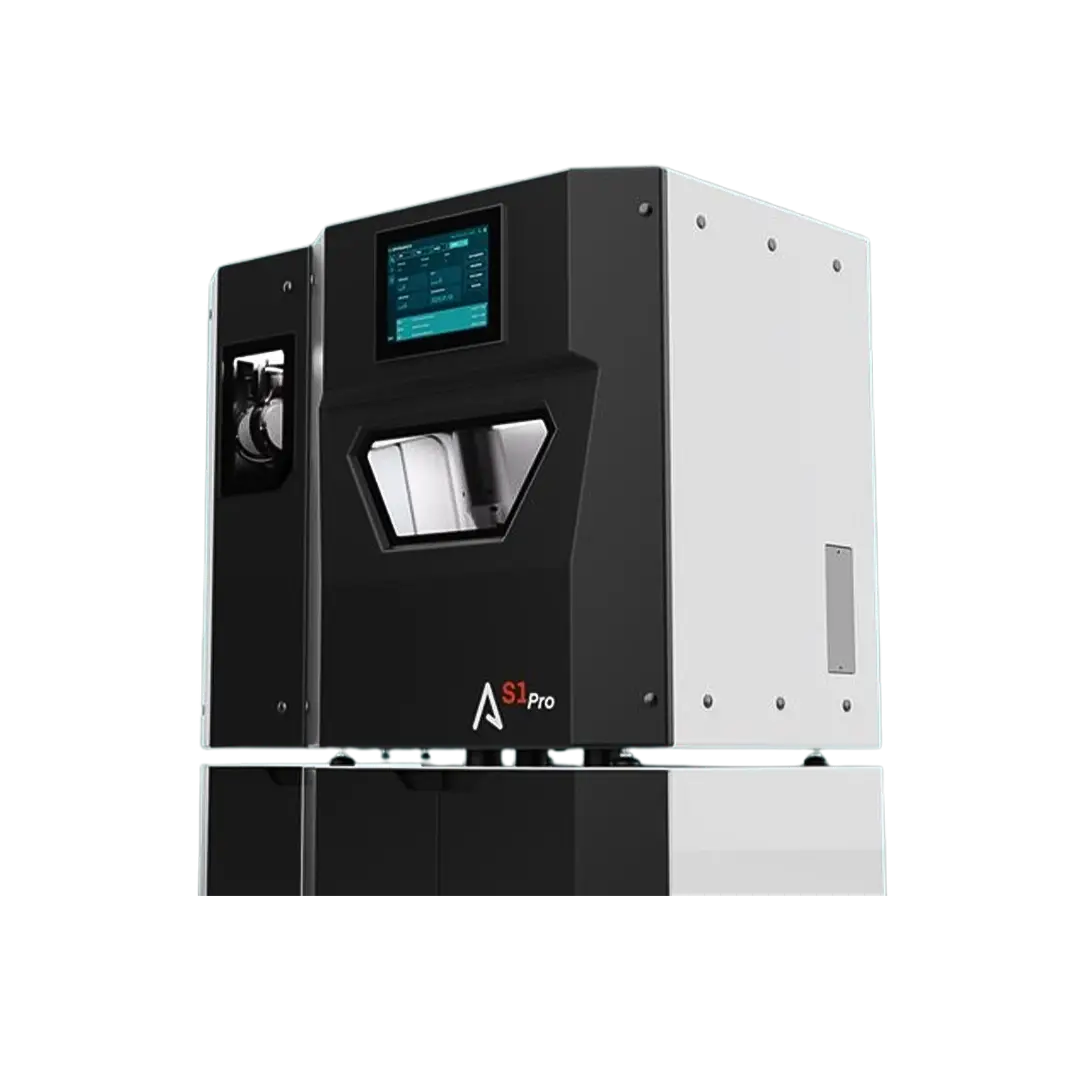

Dyamach AS1 PRO Milling Machine

SKU: 112208
322,900.00 AED 326,900.00 AED
Fast Delivery Available from local UAE stock for rapid dispatch and installation.
Technical Support Product guidance, onboarding, and technical assistance from our team.
Trusted Distribution Supplied by Futuremirates with genuine products and after-sales support.

Product Description



Dyamach AS1 PRO Milling Machine
Overview

Dyamach AS1 PRO Milling Machine is a high-performance 5-axis dental milling machine designed for professional dental laboratories that require precision, versatility, and automation.
Equipped with a tilting spindle head, the AS1 PRO enables complex milling strategies and delivers exceptional accuracy across a wide range of materials, including zirconia, PMMA, composites, titanium, and cobalt-chrome.
With features such as an automatic loading/unloading system, 18-tool removable magazine, and automatic calibration, the AS1 PRO supports continuous, operator-independent production—significantly increasing workflow efficiency.
Its capability for both wet and dry milling further expands its application range, making it ideal for manufacturing crowns, bridges, abutments, bars, dentures, and other advanced dental restorations.
The latest AS1 PRO models offer an enhanced user-friendly interface, improved ergonomics, and seamless integration with modern digital workflows, providing dental technicians with a reliable and intuitive milling solution for high-precision restorative production.

Specifications

Model
AS1 PRO
Machining type
Wet & Dry
Axis
5 Servo Axis
Size
120 x 78 x h175 cm / 47.24 x 30.71 x h68.90 inch
Weight
300 Kg / 661.39 lb
Power supply
230V 50/60Hz
Spindle Power
1 KW (AS1) / 3.7 KW (AS1 Power)
Rated pressure
6 Bar
Spindle speed
60.000 rpm
Spindle collet
Ø 3 mm - 4 mm - 6 mm / 0.12 inch - 0.16 inch - 0.24 inch
Blank diameter
Ø 98±0.5
Input increment
X,Y,Z=0.001mm A,B=0.001°
Axis repeatability
X,Y,Z=0.005mm A,B=0.005°
Processing
Anatomical bridges and crown - Bridge and Crown - Bridge and Wax crown - Abutment - Bars and bridges - Selective laser melting - Glass ceramic - Denture - Partial Prosthesis - Bite - Primary and secondary with screw thread
Materials
Zirconium - Wax Dry / Wet - Pmma Dry / Wet - Peek - Composite - Carbon - Plastic materials - Glass fiber - Glass ceramic - Aluminium - Titanium - Cobalt chrome - Pre-milled Tit / CoCr

Features

Size and weight
120 x 78 x h 175 cm / 510 Kg 47.24 x 30.71 x h 68.90 inch / 1124.36 lb
Spindle power and speed
1 kW / 60.000 rpm
Machining type
Dry / Wet
Collet diameter
Ø 3 mm (Optional) – 4 mm (Optional) – 6 mm (Standard) --- 0.12 inch (Optional) - 0.16 inch (Optional) - 0.24 inch (Standard)
Automatic calibration
YES
Spindle tilt degrees
-92° > 42°
Removable rack-type tool magazine
18 tools
Rapid loading / unloading
Disc holder
8 position automatic loader
Disc holder
