Elosdent T5 - 5-Axis Milling Machine
State-of-the-art economy 5-axis milling machine for precision and efficiency.
5-Axis Technology
Industrial Grade
Economy Model

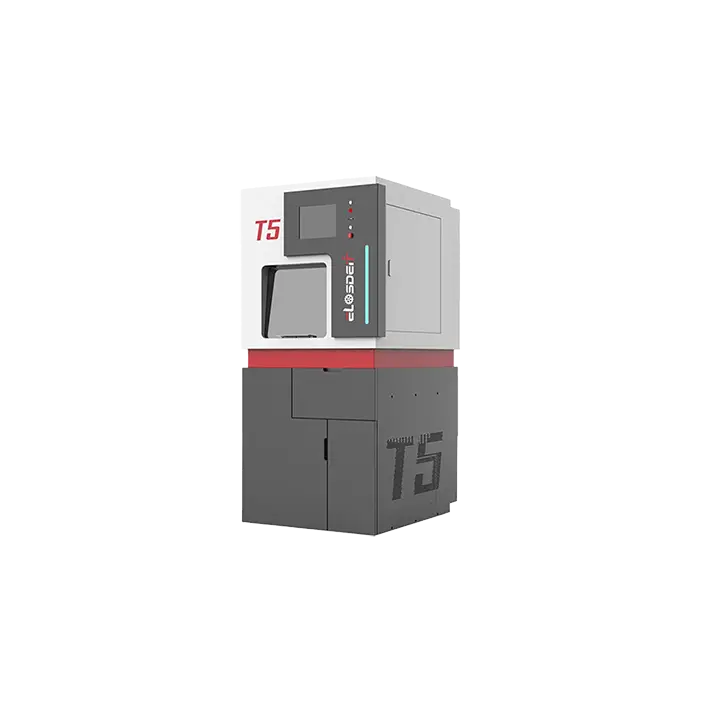

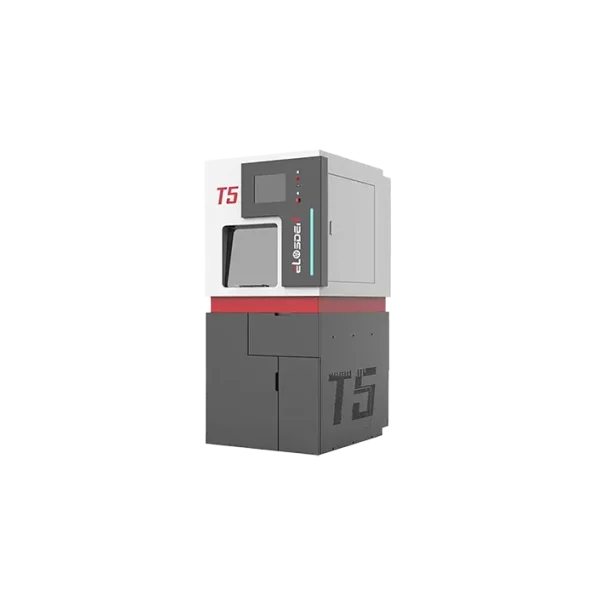

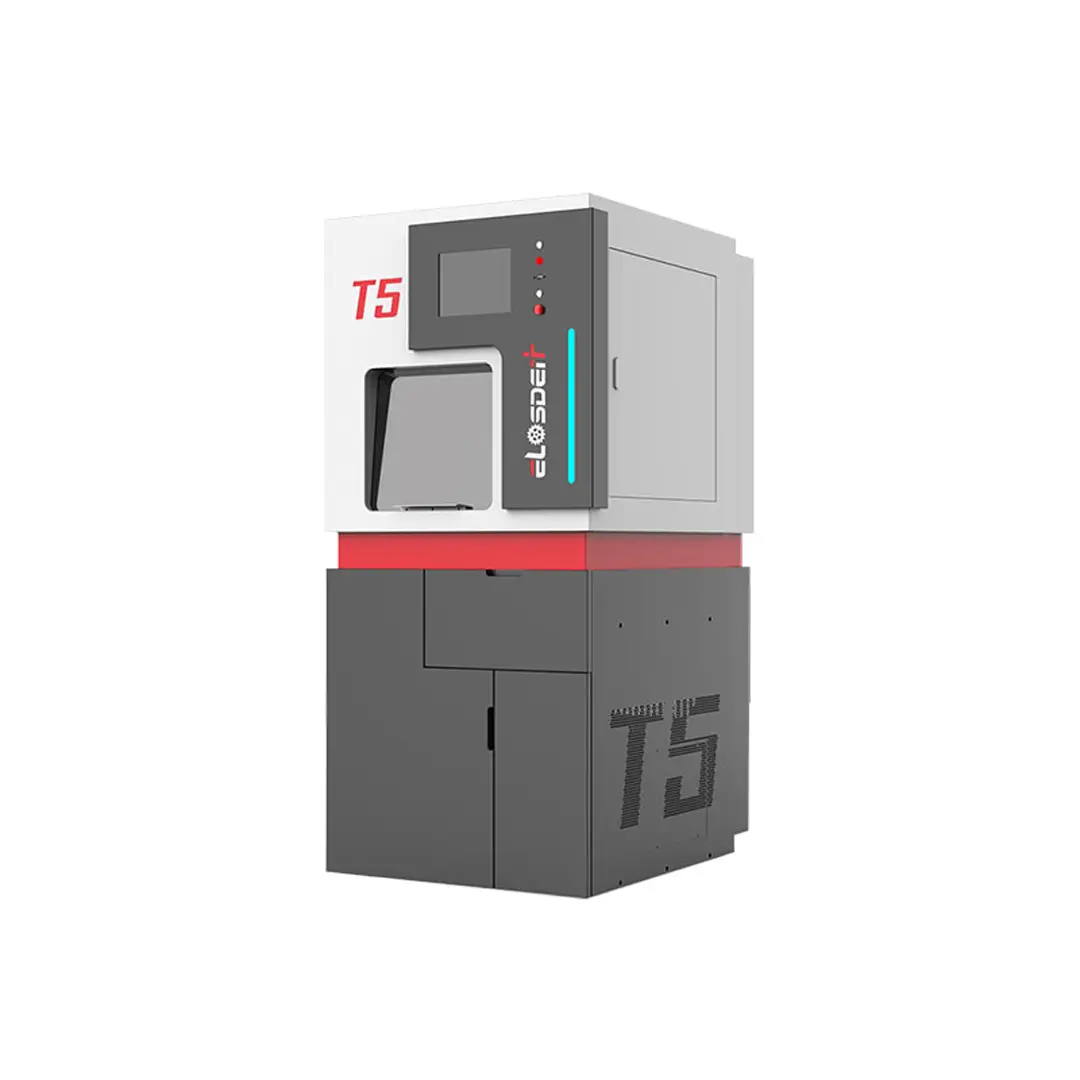

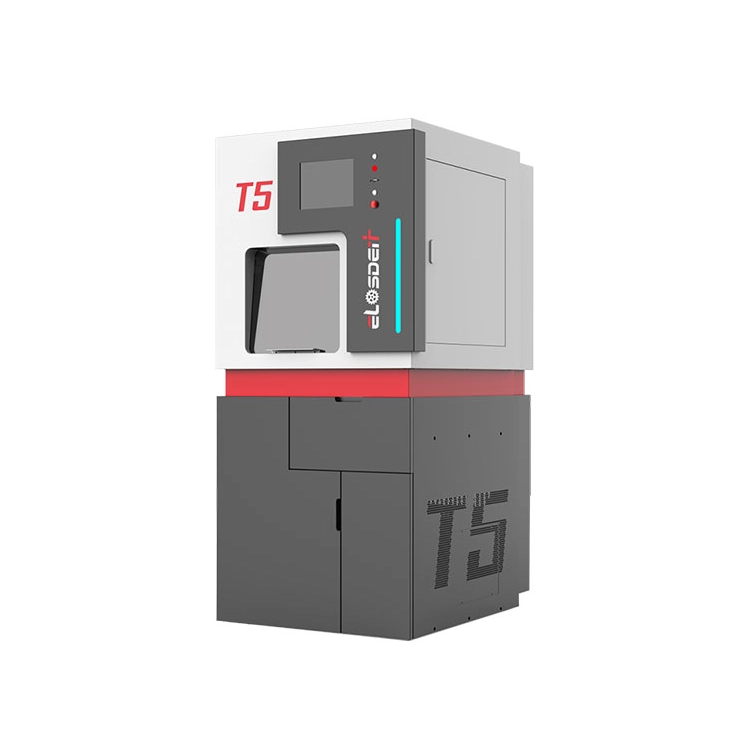

Elosdent T5 Overview
The **Elosdent T5** is a state-of-the-art economy 5-axis milling machine, expertly designed for dental professionals seeking precision and efficiency. With its robust mechanical structure and industrial-grade integration, the **Elosdent T5** offers unparalleled accuracy and repeatability. Ideal for a wide range of dental applications, this machine ensures seamless results for materials such as titanium, PMMA, PEEK, wax, dentures, and premill abutments.
**Elosdent T5** stands out with its durable ball-milled cast iron body, advanced spindle technology, and automatic tool measurement capabilities. Its compact yet powerful design makes it a must-have for modern dental labs. To discover more about the **Elosdent T5**, click here.
Technical Specifications
Dimensions (XYZ limits)
180 × 220 × 160 mm
Machine Size
820 × 1060 × 1820 mm
Weight
900 kg
Spindle Power
2.5 kW
Spindle Speed
Up to 60,000 rpm
A-Axis Angle
±25°
B-Axis Angle
-40° to 220°
Tool Library
20 tools (automatic selection)
Repeatability
4 µm
Positioning Accuracy
6 µm
Material Versatility
Titanium, PMMA, PEEK, wax, dentures, premill abutments
Key Features of Elosdent T5
Economy 5-Axis Machine
Perfectly balanced performance and cost, ideal for complex dental milling without breaking the bank.
Durable Build
Features a robust ball-milled cast iron body ensuring exceptional stability and longevity for continuous operation.
High-Speed Spindle
Equipped with a powerful 2.5kW spindle, reaching speeds up to 60,000rpm for incredibly fast and efficient processing.
20-Tool Library
Offers an extensive 20-tool library with automatic tool selection, significantly boosting operational efficiency and versatility.
5-Axis Precision
Achieve intricate geometries with XYZ limits: 180x220x160mm; A-angle: ±25°; B-angle: -40° to 220°.
Compact Design
Despite its power, it measures just 820x1060x1820mm and weighs 900kg, making it suitable for modern dental labs.
Exceptional Accuracy
Boasts a repeatability of 4µm and positioning accuracy of 6µm for flawless and consistent results.
Material Versatility
The Elosdent T5 handles a wide array of materials including titanium, PMMA, PEEK, wax, dentures, and more, offering broad application.
Customer Reviews
"The build quality of this machine is truly excellent, and its precision for dental work is unparalleled. I am completely satisfied!"
"High speed and versatility with different materials make this machine an essential tool for our laboratory. The support is also excellent."
"A perfectly professional and user-friendly machine. I highly recommend it for anyone looking for high precision and efficiency."
Leave a Review
Documents & Downloads
Find essential documents and resources for your **Elosdent T5** milling machine below.
