Milling Machine Heymill-D11
The Heymill-D11 delivers unparalleled precision in 5-axis DRY milling
5-Axis Technology
Spindle Power : 0.75KW
Tool Capacity : 5 pieces
Milling Machine Lodden Heymill-D11 Overview

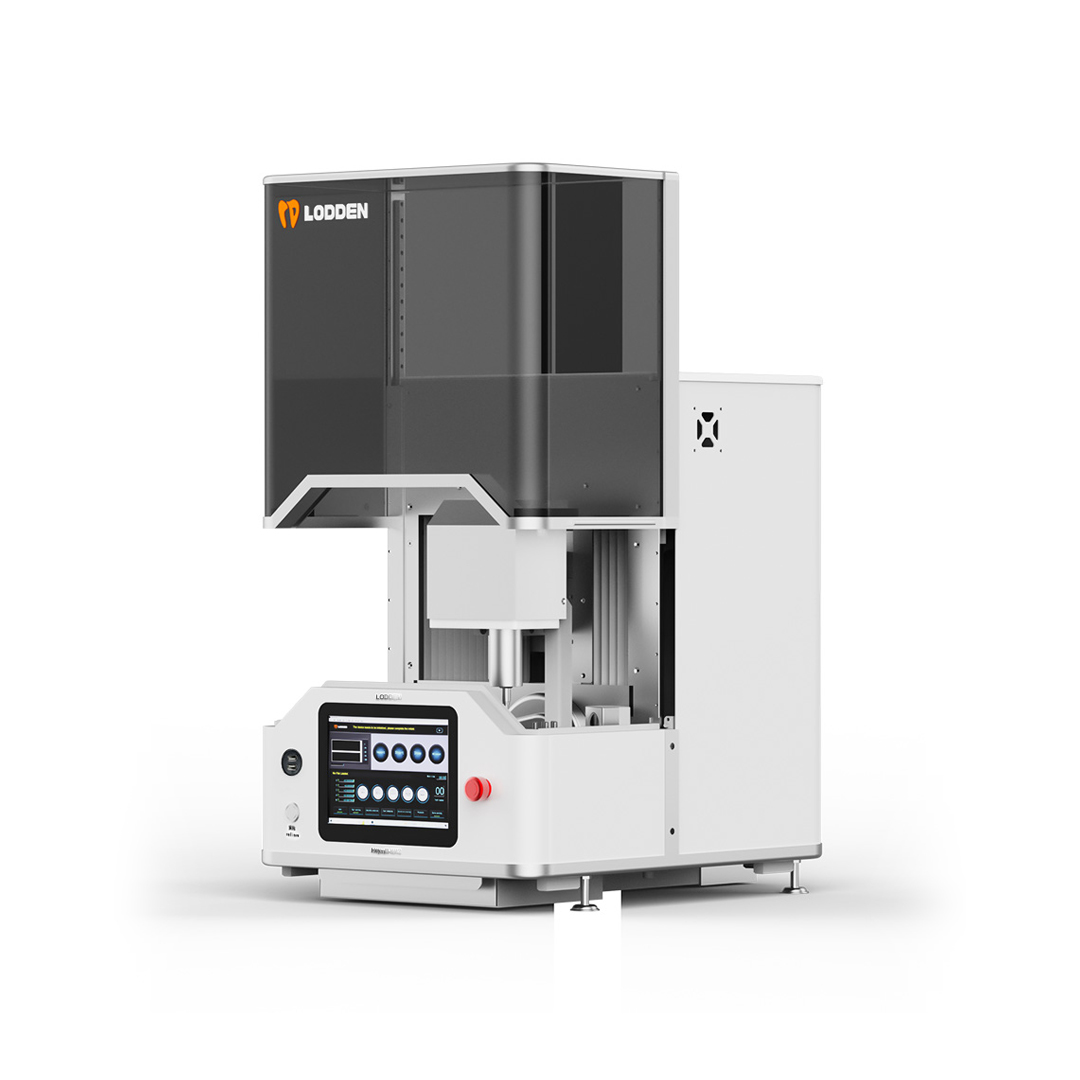

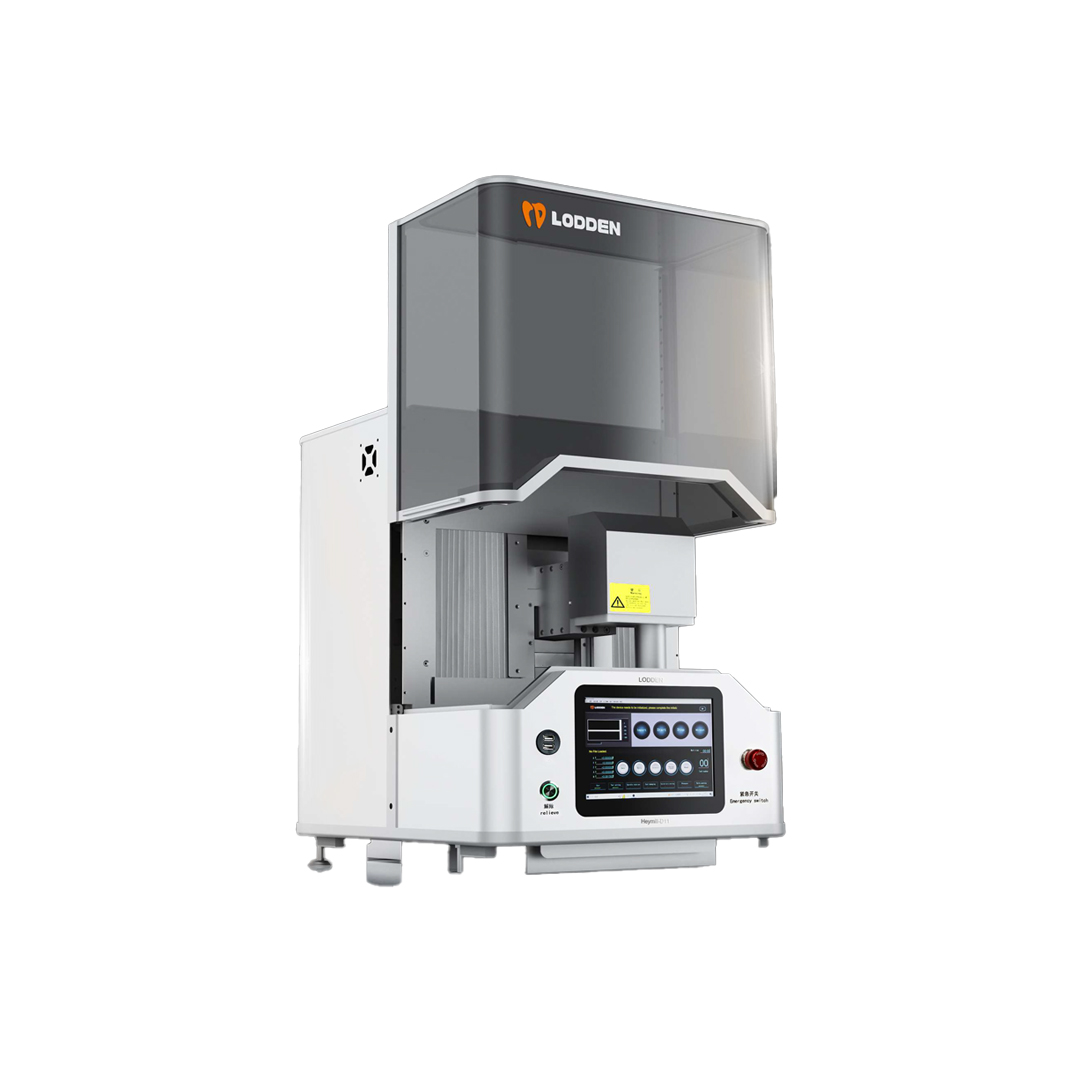

The Dry Milling Machine Lodden Heymill-D11 Dry Milling Machine is a cutting-edge 5-axis milling solution designed specifically for precision dental restorations. This machine is highly versatile, capable of milling various materials, including Zirconia, PMMA, WAX, and PEEK, to produce crowns, bridges, and other restoration shapes with micron-level accuracy.
Key features of the Milling Machine Lodden Heymill-D11 include its 90° milling capability, an integrated HD camera for enhanced monitoring, and an intuitive status feedback system that uses tri-color lights and sound prompts. It boasts an impressive grinding accuracy of 0.02mm, ensuring consistent processing stability and significantly reducing the need for costly rework.
The Milling Machine Lodden Heymill-D11 is suitable for a wide array of dental applications such as implant bars, screw-retained bridges, abutments, inlays, onlays, veneers, crowns, bridges, PMMA model casts, bite splints, and dentures.You can get more information here.
Technical Specifications
Brand
Lodden
Axes
5 (X, Y, Z, A, B)
A-axis Rotation
360 degrees
B-axis Rotation
30 degrees

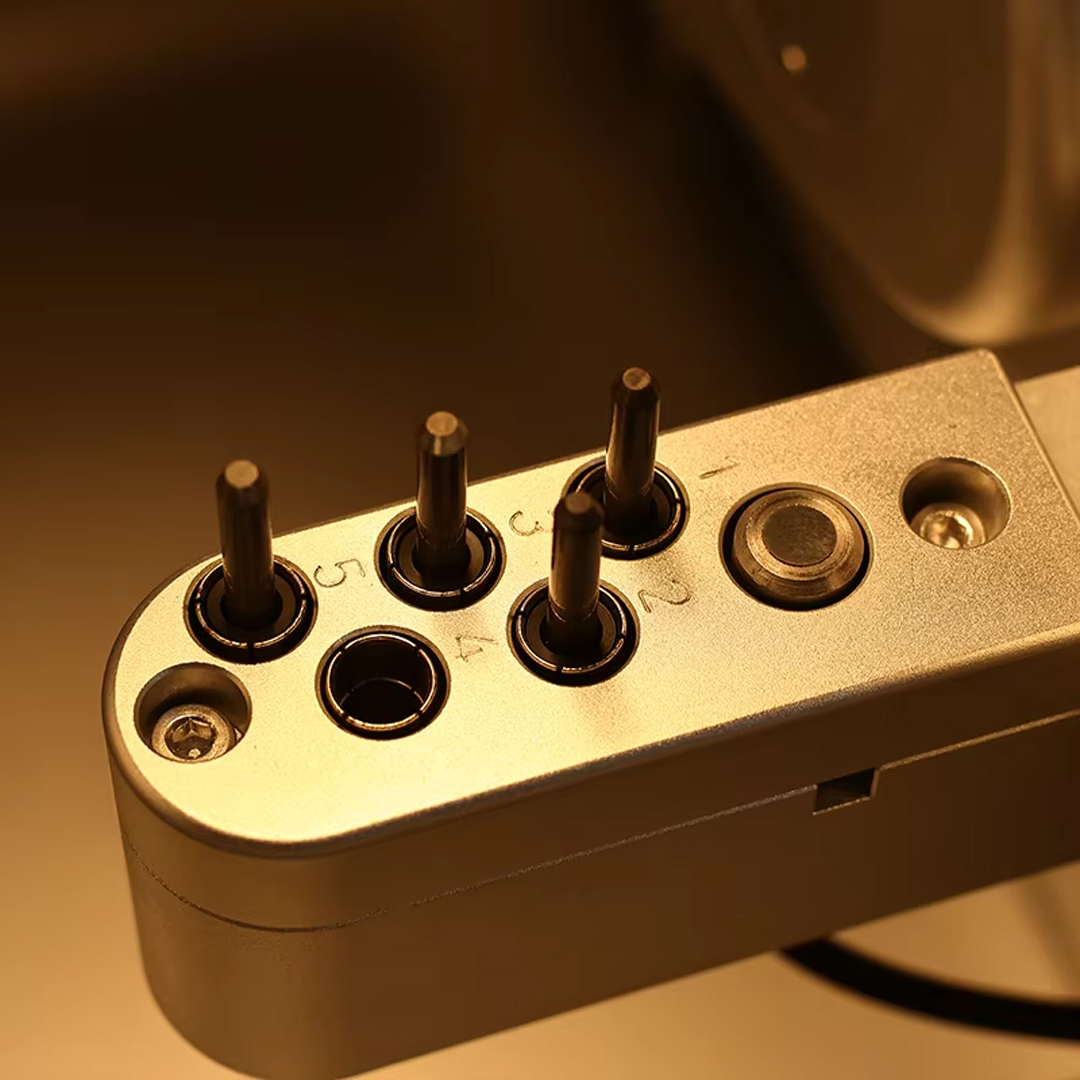

Tools
5 pieces
Control System
Fly motor
Milling Mode
Dry
Supply Voltage
220V
Spindle Power
0.75KW
Application Materials
Zirconia, PMMA, WAX, PEEK
Packing Weight
127KG
Rated Frequency
50/60HZ
Air Pressure
0.5-0.8MPA
Spindle Rotation Speed
60000rpm/min
Key Features of Milling Machine Lodden Heymill-D11
5-Axis Milling Capability
This machine offers full 5-axis simultaneous milling, providing exceptional versatility and precision for even the most complex dental restorations.
High Precision & Accuracy
It boasts a grinding accuracy of 0.02mm and an overall system accuracy under 20 microns, ensuring that every restoration fits perfectly.
90° Milling Function
This unique feature allows for precise formation of occlusal surfaces on anterior dental prostheses, optimizing their shape and natural appearance.
Integrated HD Camera
A built-in 1080P camera lets you monitor the entire milling process in real-time, even remotely, for enhanced oversight and quality control.

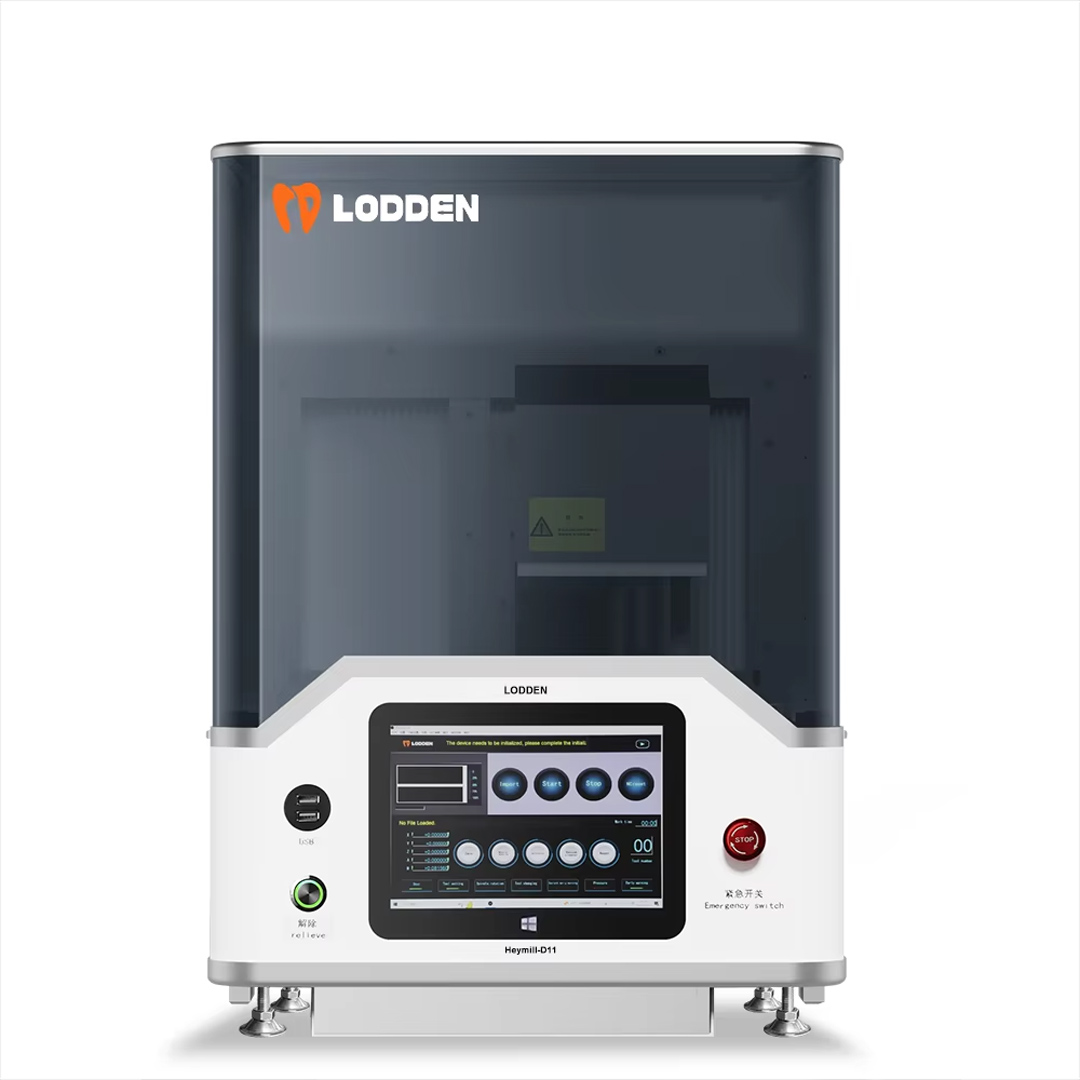

Intuitive Status Feedback
The machine provides clear operational status updates through tri-color lights (standby, running, warning) and sound prompts, making it easy to understand.
Broad Material Compatibility
It's designed to mill a wide range of popular dental materials, including Zirconia, PMMA, WAX, and PEEK.
High-Speed Spindle
Equipped with a powerful spindle that reaches speeds of 60000 rpm/min, ensuring efficient and rapid milling operations.
Automatic Air Pressure Protection
The system includes an automatic protection function that activates when air pressure fluctuates, safeguarding the milling machine and ensuring consistent performance.
