3D Printer Digital Dental

UNIZ U Cure

Type: CAD/CAM Machining Capabilities: Dry and Wet milling Axes: 5 continuous axes Monitor: 15.6-inch touchscreen Integrated Components: Built-in camera, Closed water circuit with filters Spindle Power: 3.2…

SKU:122213
  • Ultra‑Fast Curing
  • High Energy Density
  • Uniform Light Distribution
Product enquiryIn stock
Price on request
Technical SupportDelivery & Setup

Product Description



U Cure Overview

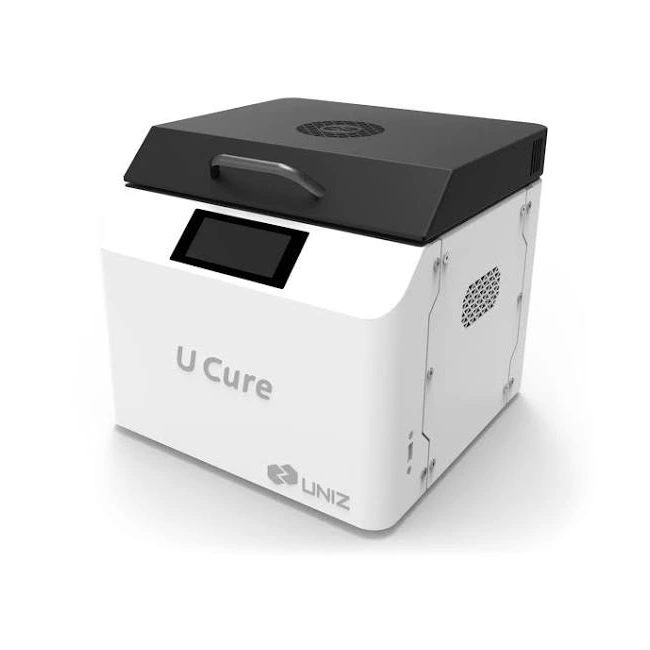

The UNIZ U Cure is a high‑performance LED post‑curing station designed for dental 3D printed appliances.
With an energy density of 120,000 mJ/cm² and 90% curing uniformity, it delivers tackiness‑free surfaces and consistent accuracy.
An algorithm‑optimized LED array ensures reliable curing results across different appliance types.

The system features simulation‑proven multi‑directional UV light combined with a multi‑angle reflector, ensuring accurate curing at any placement on the turntable.
Its patent‑pending nitrogen‑free tackiness elimination method supports clean and effective post‑processing.
Built with a full metal, corrosion‑resistant structure, UNIZ Cure is designed for durability.



Specifications

Model
U Cure
Dimensions
280 × 280 × 250 mm (W × D × H)
Net Weight / Gross Weight
7 kg / 8.3 kg
Light Source
UV LED
LED Wavelength
395 nm
LED Power Output
75 W
UV Energy Density
120,000 mJ/cm²
UV Irradiance
400 mW/cm²
Curing Time
1–30 mins
LED Operation Temperature
5–35°C
Output Voltage
DC 24 V

Features

Ultra‑Fast Curing

Fully cures most dental appliances in as little as 1 minute.

High Energy Density

Delivers 120,000 mJ/cm² for effective and consistent curing.

Uniform Light Distribution

Achieves 90% curing uniformity across the curing area.

Optimized LED Array

Algorithm‑optimized LEDs ensure stable and repeatable curing performance.

Multi‑Directional UV Light

Simulation‑proven light distribution supports accurate curing at any placement.

Nitrogen‑Free Tackiness Elimination

Patent‑pending method eliminates surface tackiness without nitrogen.

Wide Curing Time Range

Adjustable curing time from 1 to 30 minutes.

Durable Metal Structure

Corrosion‑resistant full metal body ensures long‑term reliability.

Documents

Product catalog & brochure

UNIZ U Cure

Explore the product information and technical details.

View / downloadOpens in a new tab
