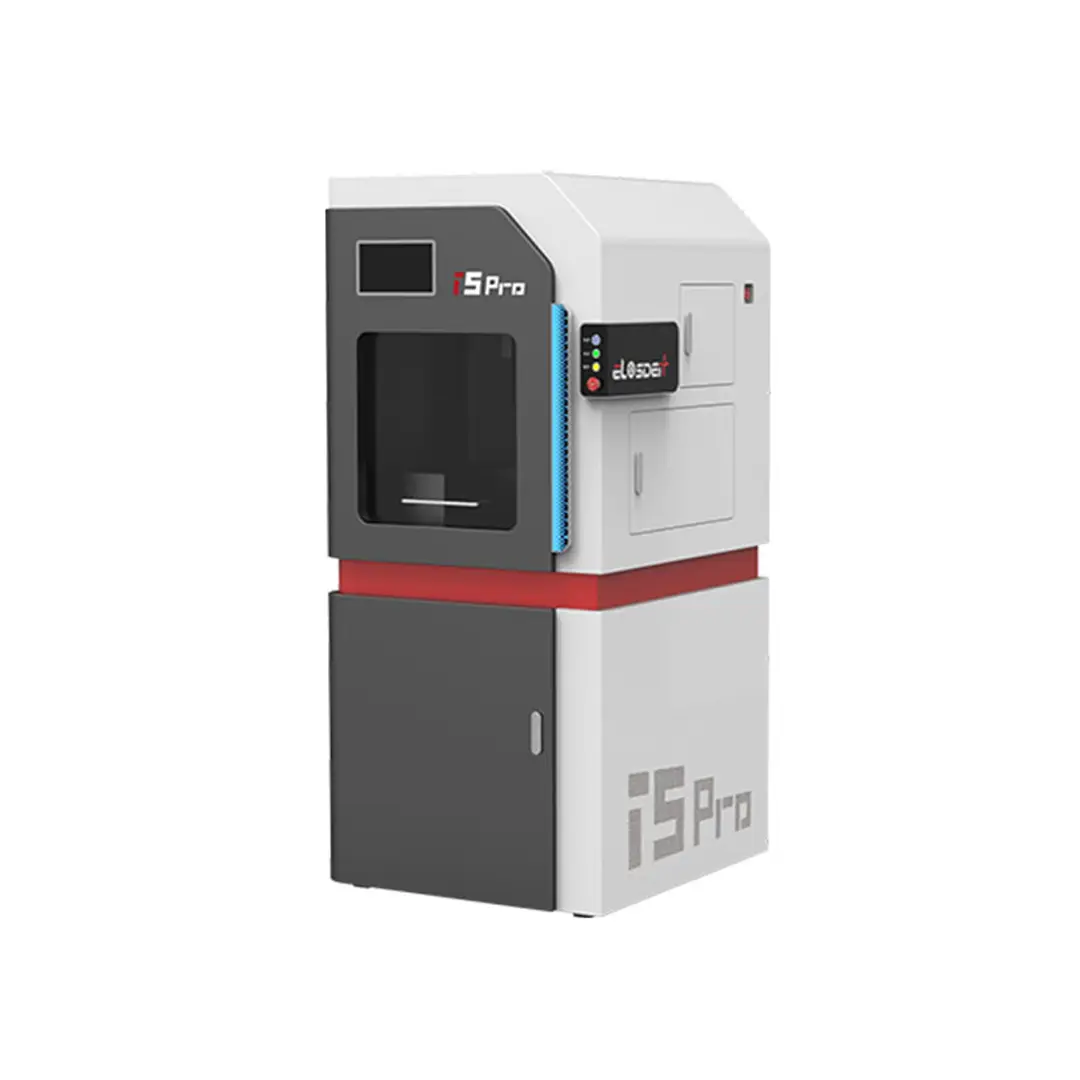

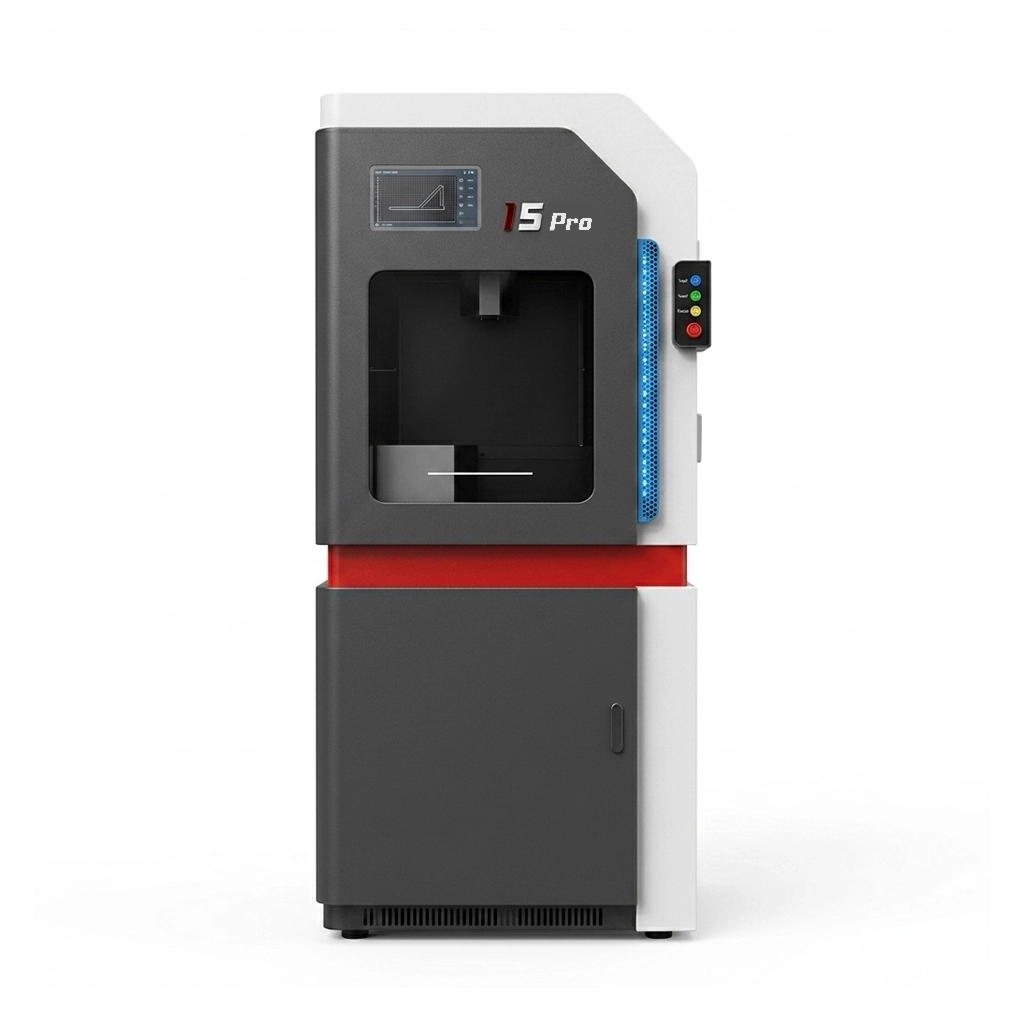

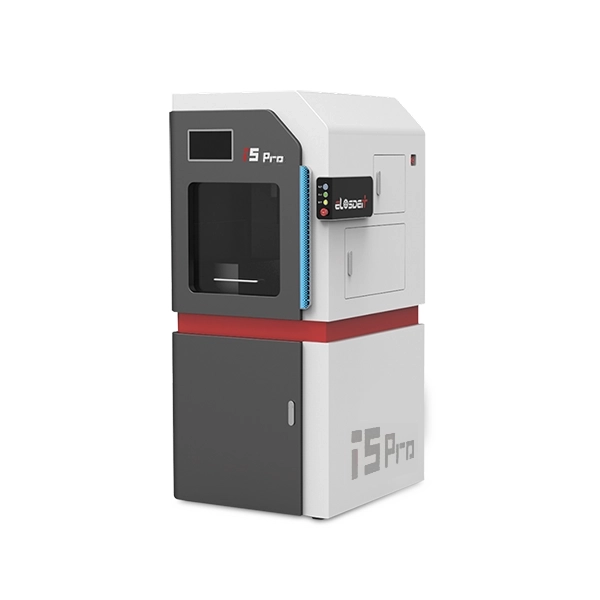

Elosdent i5 Pro Milling Machine
The Elosdent i5 Pro Milling Machine: Redefining precision and efficiency for all your dental milling needs.
5-Axis Milling
Wet & Dry Capability
Auto Calibration
Wide Material Range
Elosdent i5 Pro Overview
The Elosdent i5 Pro Milling Machine is a premium 5-axis wet and dry milling unit, designed to meet the highest standards of precision and versatility in dental laboratories. As a state-of-the-art CAD/CAM solution, the Elosdent i5 Pro is engineered for the efficient and accurate fabrication of a comprehensive range of dental prosthetics, including crowns, bridges, inlays, onlays, veneers, custom abutments, and more, across a wide variety of materials.
Distinguishing itself with true simultaneous 5-axis motion and both wet and dry milling functionality, the Elosdent i5 Pro effortlessly processes a comprehensive spectrum of dental materials. From robust Zirconia (pre-sintered), PMMA, WAX, Glass-Ceramics, Composite, PEEK, and even Titanium for pre-milled abutments and bars, this machine handles it all. Its high-performance spindle and generous 8-tool magazine minimize manual intervention, optimizing workflow for both high-volume production and specialized custom fabrications. The Elosdent i5 Pro's compact design and robust construction ensure reliable, long-term operation within any dental facility, boosting productivity and enabling a diverse range of in-house manufacturing capabilities.
Technical Specifications
Milling Axes
5 simultaneous axes
A-axis Angle
±35°
B-axis Angle
±35° for 140×150 disk cube / ±45° for 98mm disk
Accuracy
5 µm (High Precision)
Repeatability Accuracy
3 µm
Weight
1200 kg
Tool Magazine
8 tools (Automatic Tool Changer)
XYZ Limit
160×320×200 mm
Machine Size
940×1080×1910 mm
Spindle
High-frequency, High-performance (3.0 kW)
Max Speed
40,000 rpm
Processable Materials
Titanium (square disk / round disk / blank, pre-milled abutments & bars), Zirconia (pre-sintered), PMMA, PEEK, WAX, Resin ceramics, CoCr, Glass-Ceramics, Composite
Milling Time (Approx.)
Crown: 18–23 minutes, Abutment: 15 minutes, Bar: 3–3.5 hours, Framework: 3–4 hours
Key Features of Elosdent i5 Pro Milling Machine
True 5-Axis Simultaneous Milling
Experience complete freedom in processing complex geometries and undercuts, ensuring superior fit and marginal integrity for every restoration with its advanced 5-axis capabilities, including A-axis (±35°) and B-axis (±35°/±45°) angles.
Versatile Wet & Dry Milling
Seamlessly switch between dry milling for materials like Zirconia and WAX, and wet milling for Glass-Ceramics and Titanium, thanks to the integrated cooling system, maximizing material compatibility.
Automated Tool Changer (8 Positions)
Boost efficiency with an automatic tool changer featuring 8 positions, reducing manual intervention and enabling continuous, unattended operation for diverse tooling requirements.
Unmatched Precision & Auto Calibration
Achieve consistently accurate results with 5 µm accuracy and 3 µm repeatability, further enhanced by an auto-calibration function that maintains optimal milling precision over time.
High-Performance Spindle (40,000 RPM)
Benefit from a powerful, high-frequency 3.0 kW spindle capable of 40,000 RPM, ensuring rapid material removal, exceptional detail, and a superior surface finish on all restorations.
Extensive Material Compatibility
Process a broad spectrum of dental materials, including Zirconia (pre-sintered), PMMA, PEEK, WAX, Resin Ceramics, CoCr, Glass-Ceramics, Composite, and various forms of Titanium (including pre-milled abutments and bars).
Optimized & Efficient Milling Times
Achieve impressive production speeds with optimized milling times, such as 18–23 minutes for a crown and 15 minutes for an abutment, maximizing lab throughput and profitability.
User-Friendly Interface & Quiet Operation
Navigate effortlessly through milling processes with an intuitive user interface. The machine's design also ensures significantly quiet operation, contributing to a better lab environment.
Compact & Robust Design for High Productivity
The Elosdent i5 Pro Milling Machine combines a compact footprint (940×1080×1910 mm) with robust 1200 kg construction, offering stability and reliability for consistent, high-volume production in any dental facility.
