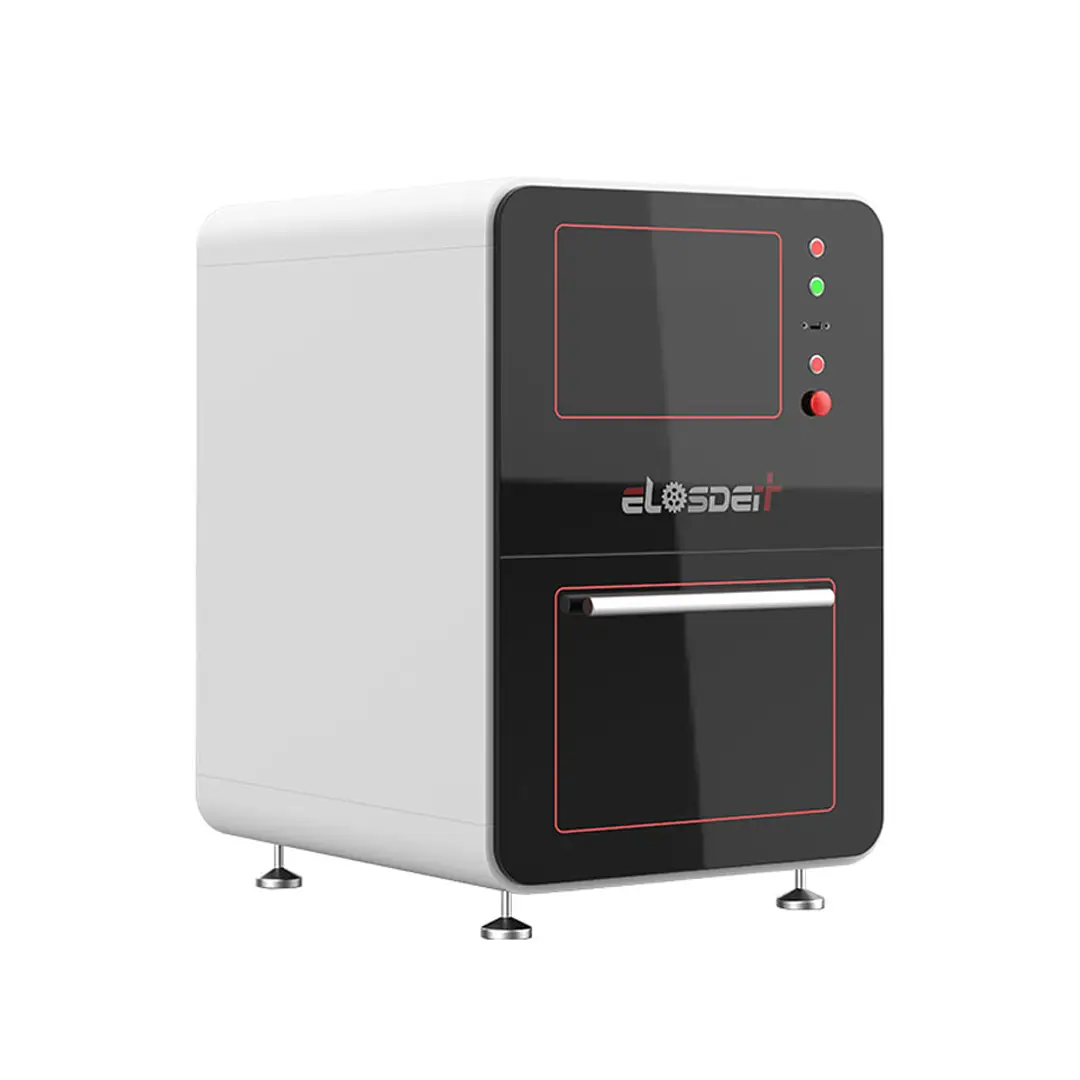

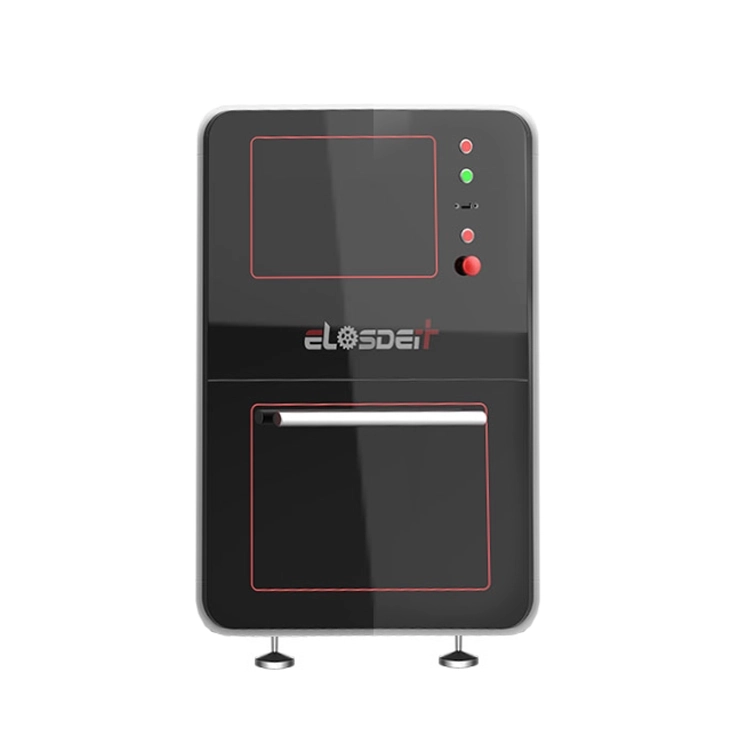

Elosdent E4 Milling Machine
Milling Machine digital dentistry

Elosdent E4 Milling Machine

SKU: 133030
Contact Us
Fast delivery
1-2 days within UAE
First order discount
Use code BIOWELCOMES and get 5% off
Free shipping
On all orders over 150 AED
Quantity:

Product Description



Elosdent E4 Milling Machine Overview

The Elosdent E4 Milling Machine sets a new standard in dental technology with its unmatched precision and versatility. Featuring a 4-axis system, including a 360° A-axis and ±30° B-axis, this machine delivers exceptional accuracy down to 7µm, ensuring flawless results for materials like glass ceramic, PMMA, and resin.

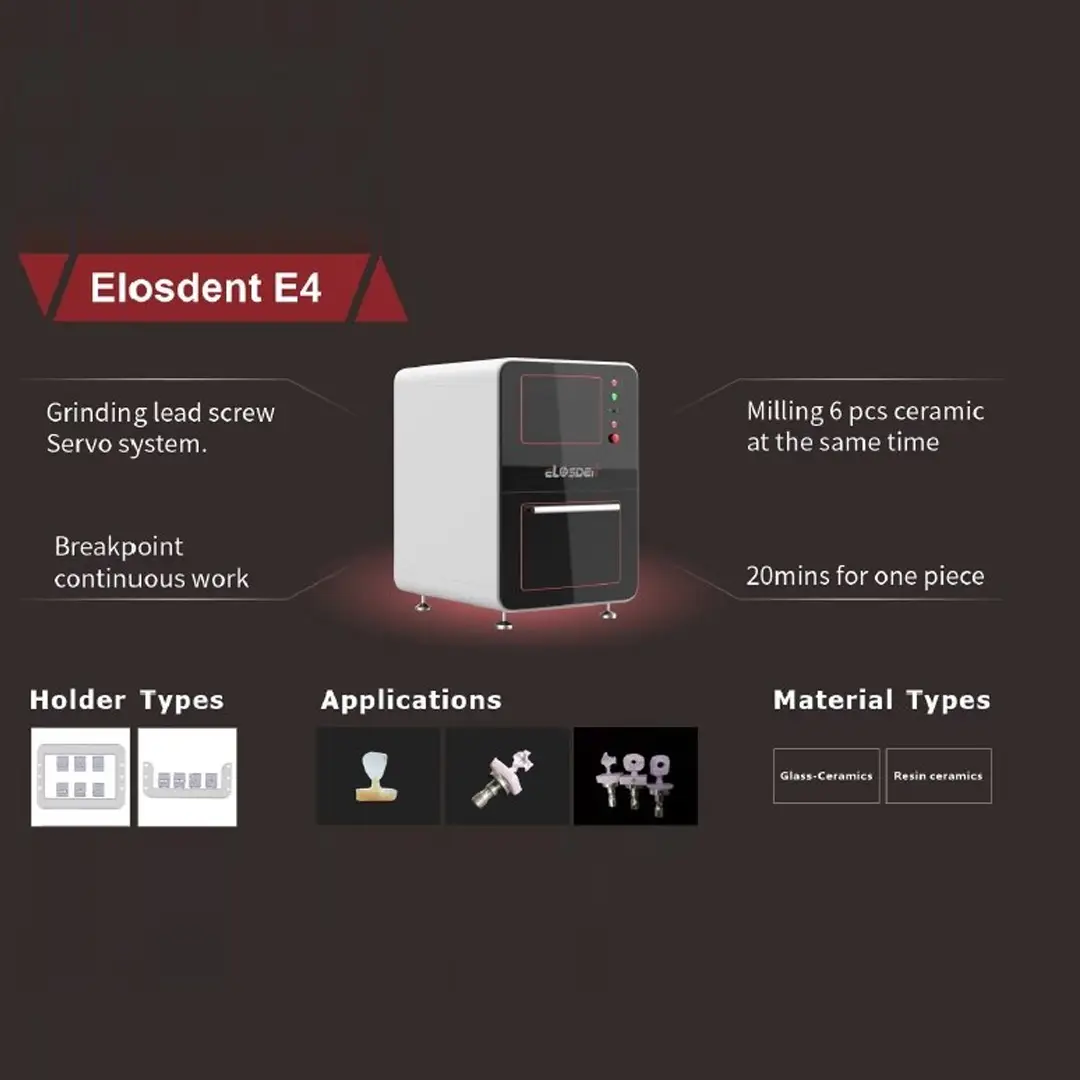

Elosdent E4 Milling Machine is equipped with a powerful 1.8/2.2/2.5 kW spindle (optional) and a high-speed servo system, the E4 can reach speeds of up to 60,000 RPM, significantly reducing milling time. Its 8-tool magazine and breakpoint continuous work feature allow for uninterrupted production, while the ability to mill 6 ceramic pieces simultaneously boosts productivity. Get more information here.

Specifications

Axes
4 A-axis Angle 360° (capable of milling at 90°) B-axis Angle ±30°
Spindle Power
1.8/2.2/2.5 kW (optional)
Accuracy
7 µm
Repeatability Accuracy
5 µm
Tool Magazine
8 tools
Max Speed
60,000 RPM
Machine Size
510 × 650 × 800 mm
Weight
150 kg
Optional Features
Cast Iron Bed, High-Precision Tool Compensation, Precision-Ground Lead Screw, High-Quality Guide Rail, High-Speed Servo System
Milling Time
Glass Ceramic: 13-18 mins, PMMA: 10 mins, Resin: 15 mins

Features

Multi-Axis Precision
The 4-axis system, including 360° A-axis and ±30° B-axis, ensures intricate and accurate milling for complex dental restorations.
High-Speed Performance
With a max speed of 60,000 RPM and optional high-speed servo system, the E4 delivers rapid processing without compromising quality.
Breakpoint Continuous Work
Resume milling seamlessly after interruptions, saving time and materials while maintaining workflow efficiency.
Batch Milling Capability
Mill up to 6 ceramic pieces simultaneously, significantly increasing productivity for high-volume dental labs.
Optional High-Precision Tools
Enhance accuracy with optional high-precision tool compensation and precision-ground lead screws for flawless results.
Compact & Robust Design
The machine's compact dimensions (510 × 650 × 800 mm) and optional cast iron bed ensure stability and fit in any lab environment.
