Elosdent
C5 Zirconia 5-Axis Milling Machine
Precision Excellence, Embrace the Future
6µm Accuracy
60,000 RPM
5-Axis Flexibility

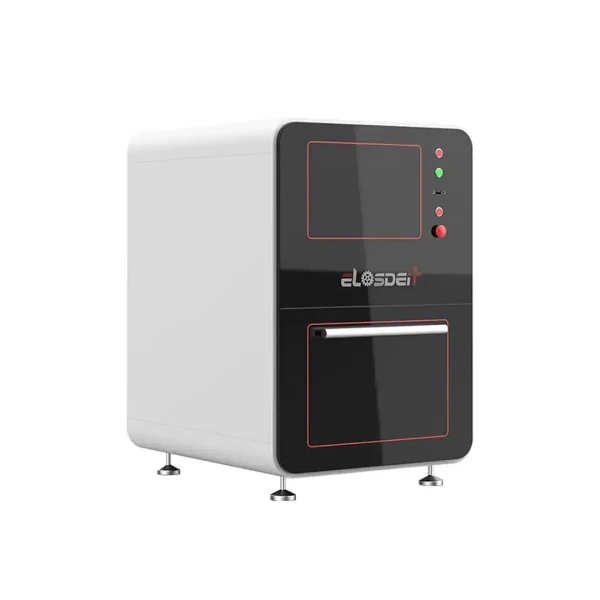

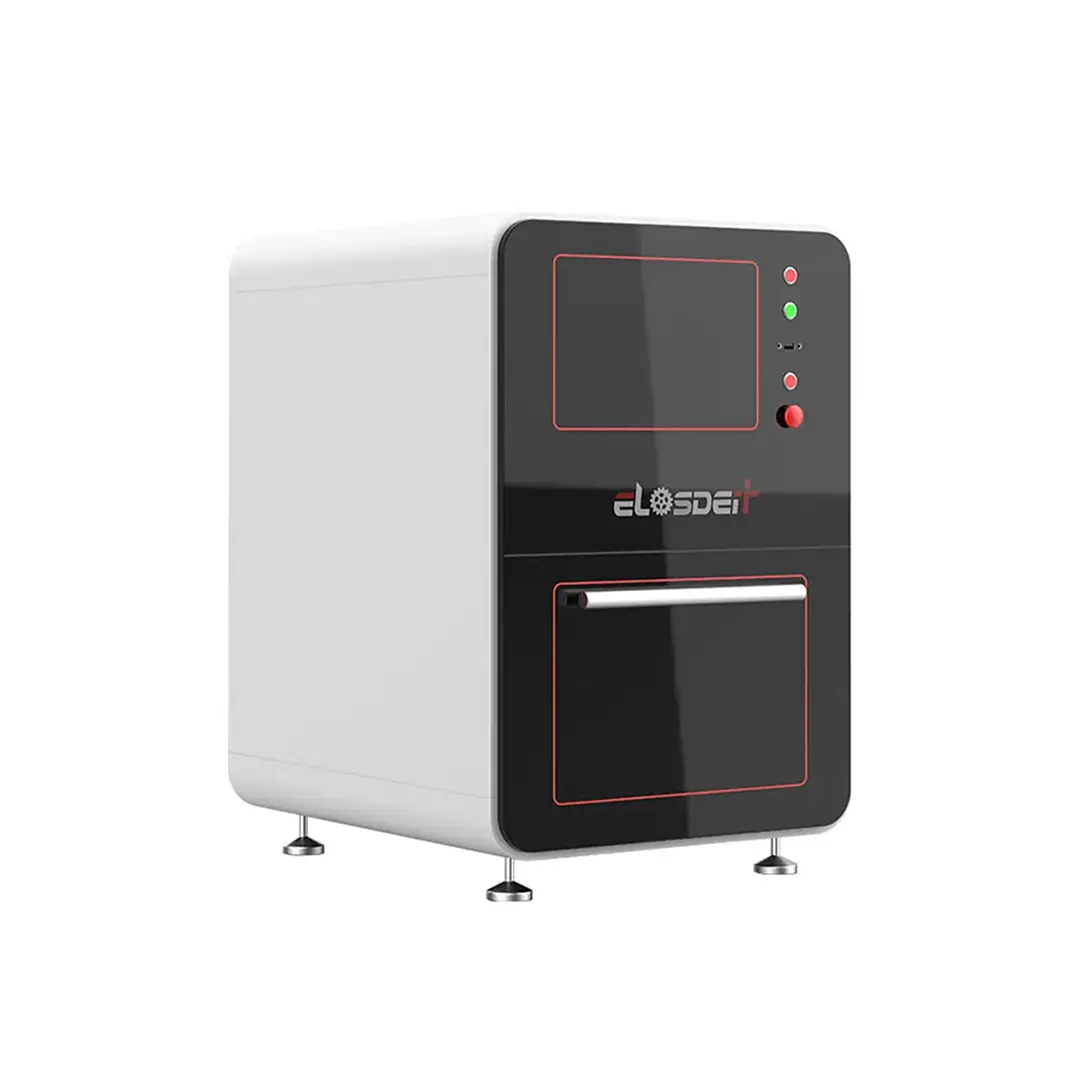

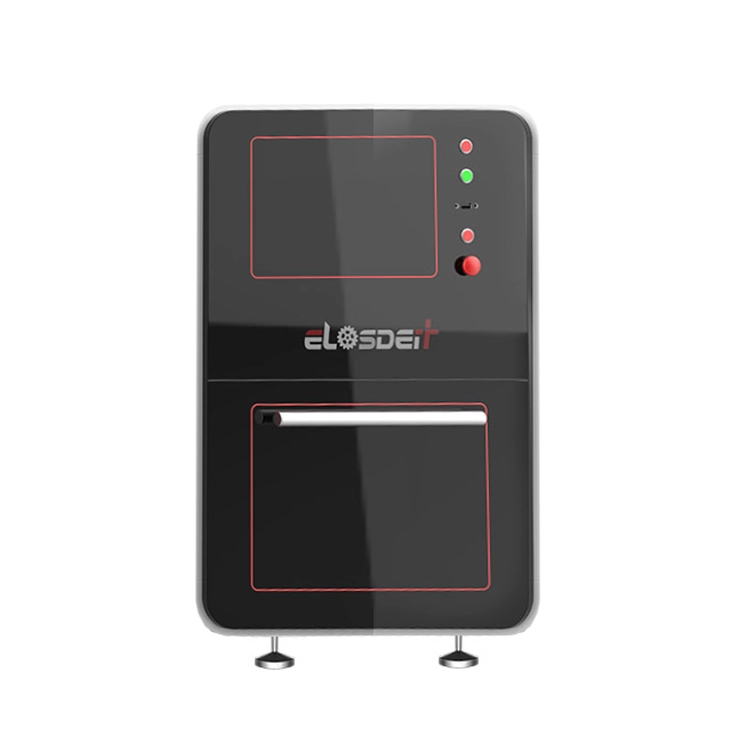

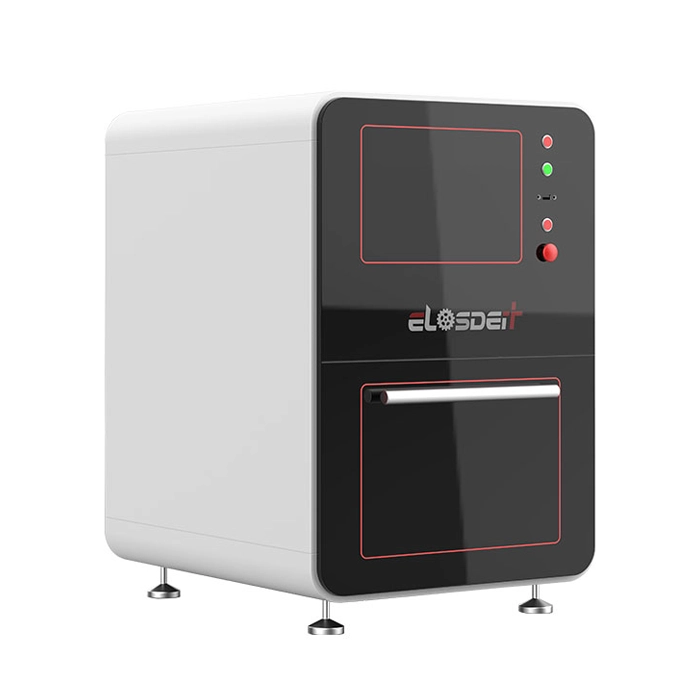

Elosdent C5 Milling Machine Overview
The Elosdent C5 Zirconia 5-Axis Milling Machine is a state-of-the-art solution designed for professionals who demand excellence. With an impressive accuracy of 6µm and repeatability of 5µm, this machine ensures flawless results for materials like Zirconia, WAX, and PMMA. Its 5-axis capability, including a 360° A-axis and ±30° B-axis, allows for intricate designs and complex geometries, making it ideal for dental labs and industrial applications.
Combining power and innovation, the C5 offers optional spindle power up to 2.5 kW and a blazing-fast speed of 60,000 rpm. The machine’s robust construction, optional cast iron bed, and high-precision assembly process guarantee durability and reliability. Whether you're crafting dental prosthetics or precision industrial parts, the Elosdent C5 delivers efficiency, speed, and unmatched quality.Get more information here.
Technical Specifications
Axes
5
Machine Size
510 × 650 × 800 mm
A-Axis Angle
360° (capable of milling at 90°)
B-Axis Angle
±30°
Spindle Power
0.5/1.8/2.2/2.5 kW (optional)
Max Speed
60,000 rpm
Accuracy
6 µm
Repeatability Accuracy
5 µm
Weight
150 kg
Tool Magazine
10 tools
Milling Time
Zirconia: 10mins, WAX: 3mins, PMMA: 10mins
Optional Features
Cast Iron Bed, High-Precision Tool Compensation, High-Quality Guide Rail, Precision-Grinding Lead Screw, High-Speed Servo System
Key Features of Elosdent C5
5-Axis Mastery
Achieve complex geometries effortlessly with full 360° A-axis and ±30° B-axis movement.
Ultra-Fast Milling
Reduce production time with a max speed of 60,000 rpm and efficient milling cycles.
Surgical Precision
Deliver flawless results with 6µm accuracy and 5µm repeatability.
Robust Build
Optional cast iron bed and high-quality guide rails ensure long-term durability.
Smart Tool Management
10-tool magazine for seamless workflow and minimal downtime.
Customizable Power
Choose spindle power from 0.5 kW to 2.5 kW to match your needs.
