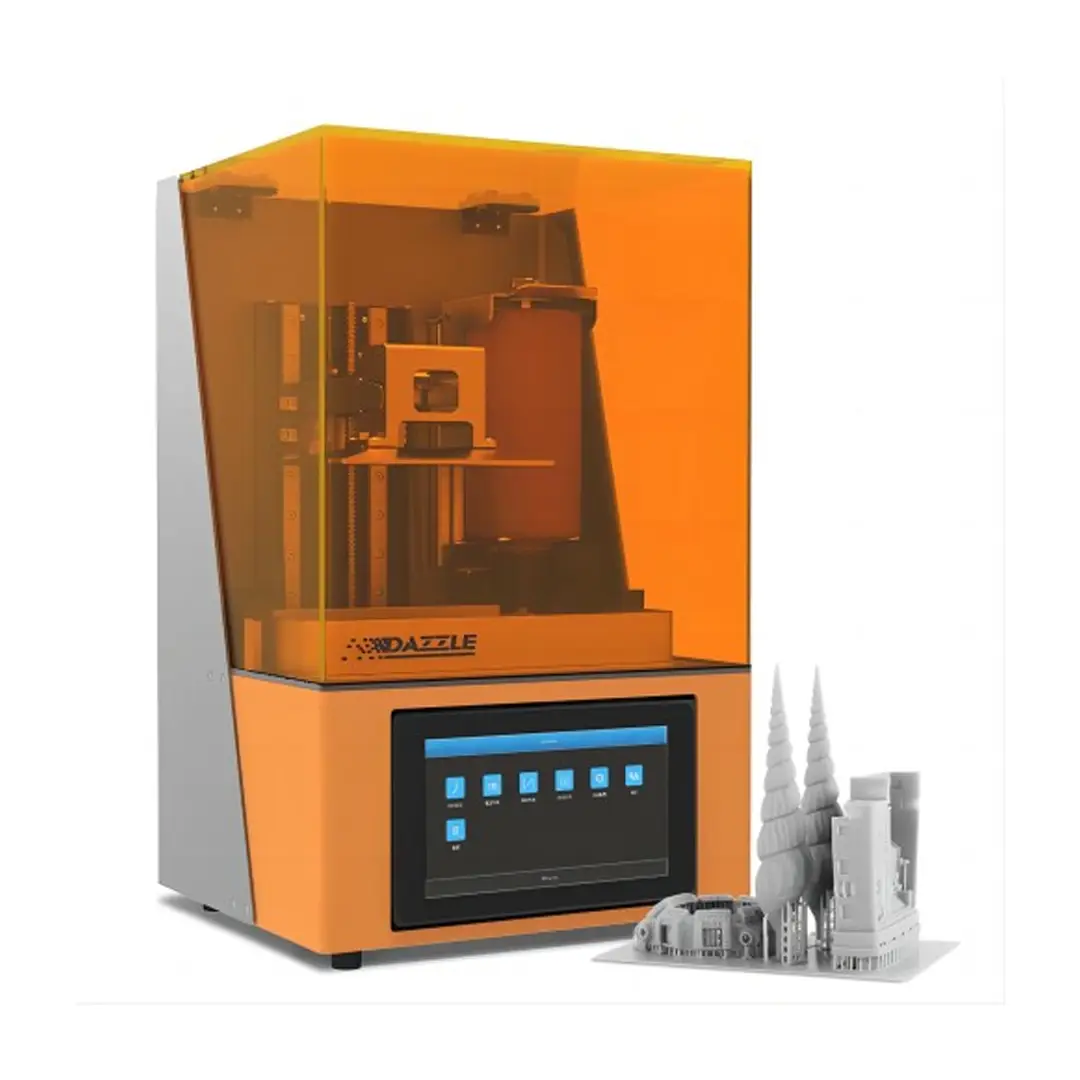

Dazzle L140 3D Printer Overview

The Dazzle L140 3D Printer is a high-precision LCD (MSLA) Stereolithography printer. It offers a build volume of 140(L)*78(W)*150(H)mm and utilizes a 2K LCD panel (2560*1440 Pixel) for detailed pattern generation. With an XY resolution of 50µm and Z resolution of 10µm, it ensures accurate and fine prints. The L140 is equipped with a 405nm, 80W parallel uniform UV LED light source and features high-precision dual linear Z-axis slides for stability. It incorporates both water and air cooling systems, as well as an automated air-purification system. Connectivity options include USB and Ethernet, and it boasts a smart 7-inch full-color touch screen that is 90° rotatable. The printer supports automatic and manual support generation and is managed by DDStarter software, allowing control of multiple printers for mass production. It is compatible with Dazzle resin and third-party resins.

Technical Specifications

Model NO.
L140 3D Printer
Technology Type
LCD (MSLA)
Overall Size
380(L)*380(W)*580(H)mm
Build Volume (X,Y,Z)
140(L)*78(W)*150(H)mm
XY Resolution
50µm
Z Resolution
10µm
Layer Thickness
0.025/0.035/0.05/0.1mm
Printing Speed
12-36mm/hr
Net Weight
25kg
Pattern Generation
2K LCD panel (2560*1440 Pixel)
Light Source
405nm, 80W, parallel uniform UV LED light
Z-Axis Slide
High-precision dual linear slides
Input Format
.STL/.OBJ/.SLC/.DDEP/.DDWP
Cooling System
Water Cooling System + Air Cooling System
Air-purification System
Automated Air-purification System
Connectivity
USB/Ethernet
Screen
Smart 7 inches full-color touch screen, 90° rotatable
Software
DDStarter
Systems Requirement
Windows, Mac
Supports
Automatic and manual supports generation (optional)
Resin
Dazzle resin, compatible with 3rd party resin.
Input Power
100-240V, 50-60Hz, 2A
Warranty
One year warranty, lifetime free technical support consult

Key Features of Dazzle L140

2K High Resolution

Features a 2K LCD panel for detailed and precise prints.

Dual Linear Z-Axis Slides

Ensures stability and accuracy during printing.

Advanced Cooling Systems

Includes both water and air cooling for optimal performance.

Automated Air Purification

Enhances user safety and print quality.

Smart Touch Screen

A 7-inch full-color touch screen for intuitive control.
