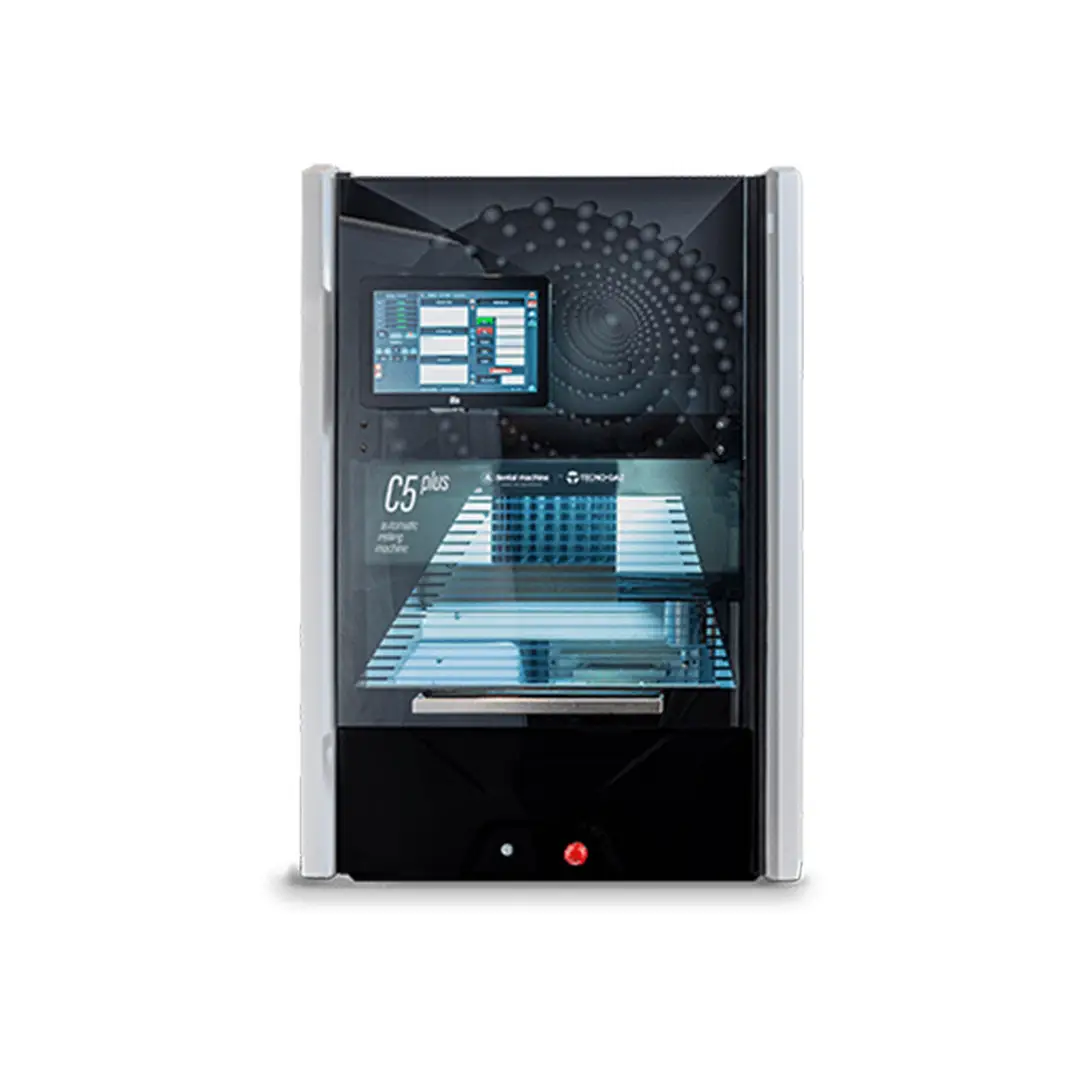

Tecno-Gaz C5 Plus Milling Machine

SKU: 122114
Contact Us
Fast Delivery Available from local UAE stock for rapid dispatch and installation.
Technical Support Product guidance, onboarding, and technical assistance from our team.
Trusted Distribution Supplied by Futuremirates with genuine products and after-sales support.

Product Description

C5 Plus Overview

The Tecno-Gaz C5 Plus Milling Machine is a sophisticated 5-axis numerically controlled worktop milling machine designed for both dry and wet milling applications in modern dental laboratories and clinics. It represents a medium-level solution from Tecno-Gaz, offering exceptional precision and versatility to maximize the advantages of CAD/CAM technology and ensure a high return on investment.

With its 5-axis continuous interpolation, the C5 Plus is capable of producing a wide range of prosthetic works, including crowns, bridges, hybrid abutments, models, attachments, and veneers. It excels in milling various materials, from pre-sintered metals to soft materials, silicates, and thermoplastics, such as wax, PMMA, different resins, composites, pre-sintered zirconium dioxide, aluminium oxide, hydroxyapatite, titanium (grades 2 and 5), and Cr-Co. The machine features a powerful Jäger spindle, an automatic tool changer with up to 18 tools, and wet cooling capability, ensuring optimal performance and durability for diverse milling operations. Read More ...



Specifications

Model
C5 Plus
Milling Type
Dry and Wet Milling (with external unit supplied)
Spindle
3.1 kW at 60,000 rpm Jäger
Number of Axes
5-axis continuous interpolation
Tool Changer
Automatic, 18 tool positions
Tool Diameter (Shaft)
6 mm
Tool Length
37-50 mm
Tool Measurement Precision
± 0.001 mm (1 µ)
Tool Failure Detection
Automatic
Dimensions (W x D x H)
660 x 1000 x 950 mm
Weight
220 kg
Power Supply
220-240 V; 50-60 Hz (single phase)
Compressed Air
7 atm (ext.) - 80 l/min
Axis Motors
Servo Brushless with encoder
Noise Level
< 60 dB
Linear Axis Resolution
± 0.00005 mm (0.05 µ)
Rotation Axis Resolution
± 0.0008 rad
Compatible Materials
Wax, PMMA, Resins, Composite, Pre-sintered Zirconium Dioxide, Aluminium Oxide, Hydroxyapatite, Titanium (Grades 2 & 5), Cr-Co

Features

5-Axis Continuous Interpolation
Ensures optimal milling angles and precision for complex prosthetic elements and implantology.
Broad Material Compatibility
Processes pre-sintered metals, soft materials, silicates, and thermoplastics, including titanium and Cr-Co.
Powerful Jäger Spindle
Features a 3.2 kW, 60,000 rpm spindle for optimal milling performance on various materials.
18-Position Automatic Tool Changer
Allows for uninterrupted workflow and automatic tool management with high precision.
Dry and Wet Milling Capabilities
Versatility to handle a wide range of materials and indications, with external wet cooling supplied.
High ROI for CAD/CAM
Developed to maximize the advantages of CAD/CAM technology and provide a significant return on investment.
High Precision & Resolution
Features linear and rotation axis resolutions that ensure exceptional accuracy in every milling operation.
User-Friendly Design
A numerically controlled worktop machine designed for ease of use in dental laboratory environments.
Ideal for Implantology
The 5-axis movement is crucial for precisely milling implant components at optimal positions and angles.
