Tecno-Gaz Onyx 8.0 Autoclave
The Integrated Sterilization System with High Load Capacity.
Class B Sterilization (Implied)
8 kg Load Capacity
Integrated System

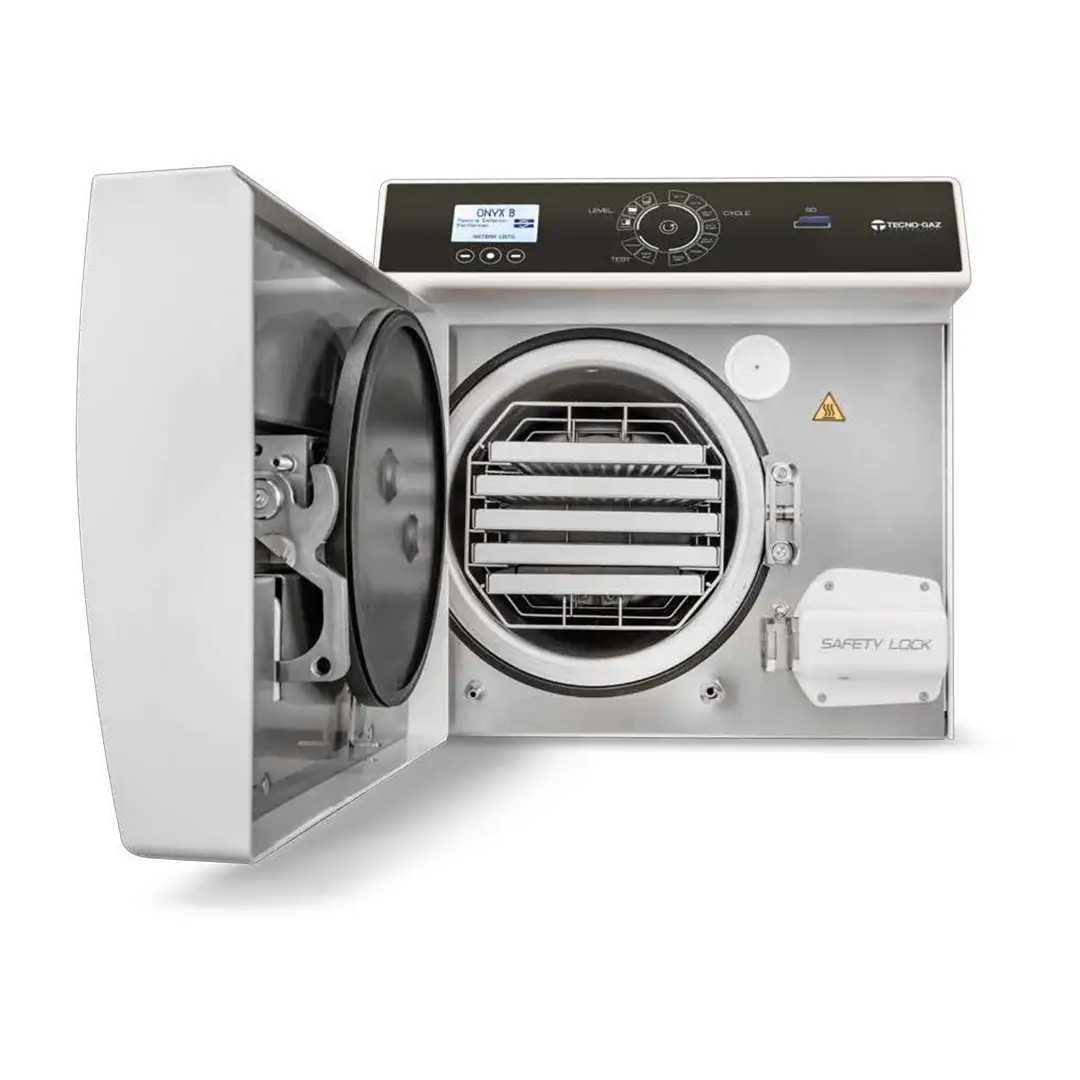

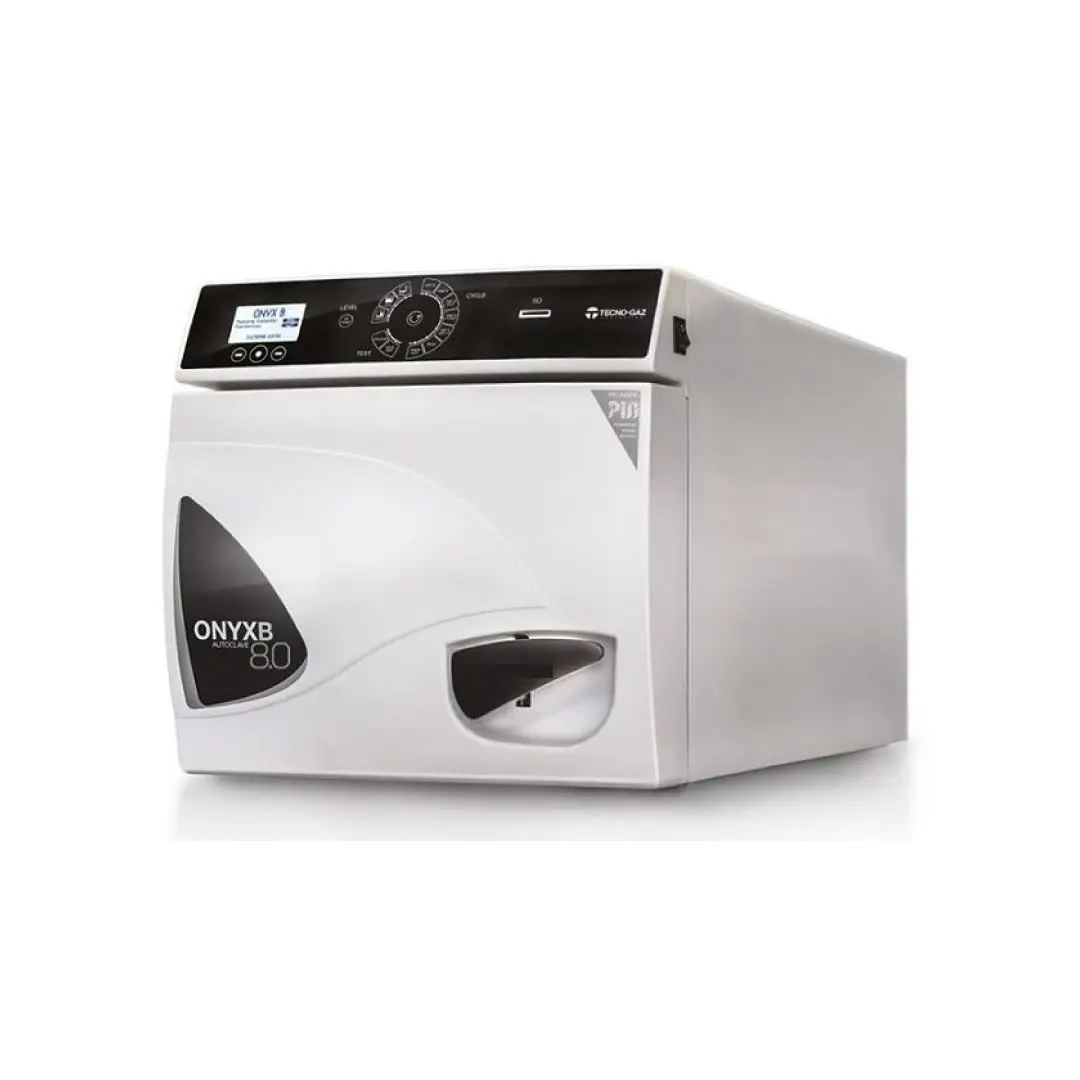

Overview of Tecno-Gaz Onyx 8.0 Autoclave
The Tecno-Gaz Onyx 8.0 Autoclave represents a new concept in integrated sterilization systems, designed as a unique and essential device for medical and dental facilities. This cutting-edge sterilizer stands out with its remarkable load capacity, capable of sterilizing approximately 8 kg of instruments, significantly more than standard models (4 kg), thereby enhancing workflow efficiency and saving considerable time. The Tecno-Gaz Onyx 8.0 Autoclave is truly a leader in its class.
The Onyx 8.0 features cycles for all needs, ensuring optimal results for various instrument types. It incorporates advanced technologies such as the P.I.D. (Proportional Integral Derivate) system for continuous monitoring and real-time diagnostics, an SD card system for secure data logging and updates, and the FL (Full Load) system for efficient water management. The integrated PHD (Pre-Heating Device) system further reduces cycle times. With its double tank system for clean and waste water and compatibility with the PURA Plus osmosis system, the Tecno-Gaz Onyx 8.0 Autoclave provides superior biological risk prevention and dependable, traceable sterilization solutions.
Technical Specifications for Tecno-Gaz Onyx 8.0 Autoclave
Type
Integrated Sterilization System (Class B Sterilizer, EN 13060 Compliant)
Load Capacity
Approx. 8 kg of instruments (Double the standard 4 kg capacity) – a key feature of the Onyx 8.0 Autoclave.
Dimensions (L × H × D)
474 × 497 × 795 mm
Space Occupied (Open Door)
495 mm
Weight (Empty Tanks)
66 kg
Weight (Full Tanks + Room Full)
76 kg
Working Temperature Range
+5°C to +40°C
Maximum Altitude
2000 m
Maximum Relative Humidity
80% at 30°C, 50% at 40°C
Load Capacity of Support Area
2058 N/m²
Potential Sound Level
< 70 dB(A)
Power Voltage
230 V AC ±10%, single phase
Maximum Power
2.2 kW
Frequency
50 / 60 Hz
Power Cord
2 + 1 × 1 mm²
Fuses
5×20 mm, 12 A
Heat Transmitted
3.6 × 10⁶ J/hour
Chamber Material
Stainless steel AISI 304
Chamber Size (Diameter × Height)
Ø 245 × 500 mm
Maximum Working Pressure
2.4 bar (relative)
Maximum Vacuum
-0.9 bar (relative)
Maximum Temperature
138°C
Clean Water Tank Volume
4.5 L
Used Water Tank Volume
4.5 L
Usable Cycles Per Fill
2 cycles
Maximum Used Water Temperature
50°C
Tank Material
Polyethylene
Diameter
56 mm
Filtering Capacity
0.3 µm
Pre-heating System
Integrated PHD (Pre-Heating Device) System with stand-by function for minimum temperature maintenance, significantly reducing overall cycle times for the Tecno-Gaz Onyx 8.0 Autoclave.
Water Management
FL (Full Load) System with automatic clean water tank management, level sensor control, and automatic lock to prevent overflow. Direct connection to PURA Plus osmosis system is supported for this advanced autoclave.
Data Logging & Updates
SD Card System for comprehensive recording and storage of all sterilization cycles (downloadable to PC for management) and enables constant machine firmware updates on the Onyx 8.0.
Operator Authentication
Integrated ID System with password protection, allowing association of the operator with each sterilized load for full traceability and enhanced security with the Tecno-Gaz Onyx 8.0 Autoclave.
Drying System
Optimized drying phase fully managed by the advanced microprocessor, ensuring effective drying for all load types in the Onyx 8.0 Autoclave.
Energy Efficiency
Low energetic consumption with an unbeatable consumption/load ratio, contributing to economic savings and environmental benefits of this Tecno-Gaz autoclave.
Key Features of Tecno-Gaz Onyx 8.0 Autoclave
Cycles for All Needs
The Tecno-Gaz Onyx 8.0 Autoclave offers a wide range of pre-set, non-modifiable automatic cycles designed to rationalize workflow and operative efficiency, guaranteeing perfect and safe sterilization.
Large 8 kg Load Capacity
This feature of the Onyx 8.0 Autoclave significantly increases sterilization throughput by handling approximately 8 kg of instruments per cycle, double the standard load, resulting in a 50% time saving.
Energy Saving Autoclave
The Tecno-Gaz Onyx 8.0 Autoclave features low energetic consumption and an unbeatable consumption/load ratio, leading to economic savings and environmental benefits.

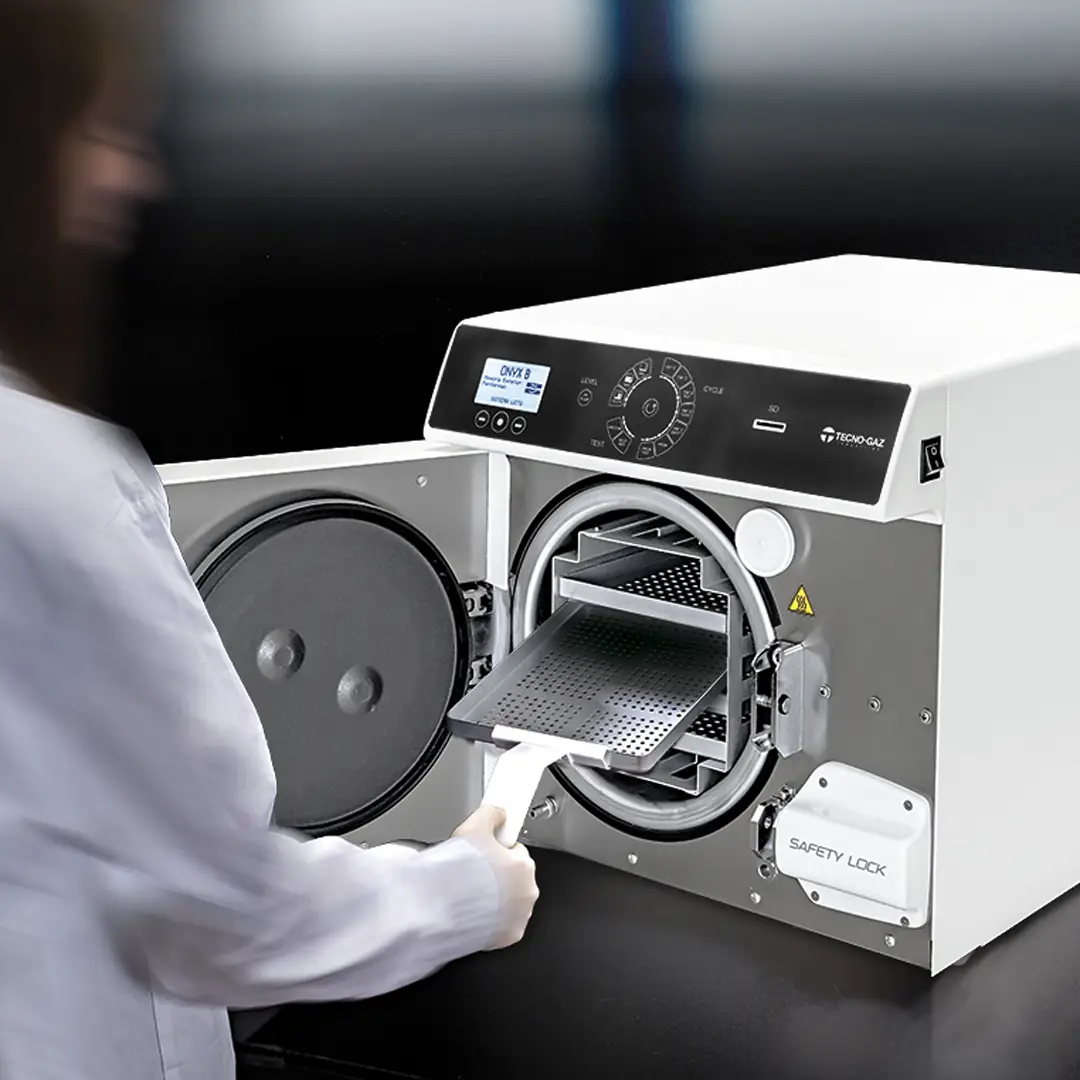

Longer Trays (+30%)
Wide trays allow for the insertion of instruments in large envelopes and rational load placement according to guidelines, optimizing instrument management with the Onyx 8.0 Autoclave.
P.I.D. (Proportional Integral Derivate) Control System
A technologically advanced closed-loop control system that constantly monitors the autoclave's operating system, providing real-time diagnostic and automatic intervention capabilities for maximum reliability and minimal idle times.
SD Card System for Data Logging & Updates
Ensures recording and storage of all cycles, which can be easily downloaded to a PC for management, and allows for constant machine updating through simple data download for your Tecno-Gaz Onyx 8.0 Autoclave.
FL (Full Load) System & Dual Water Tanks
An automatic clean water tank system with level sensor control and automatic lock to prevent manual loads and water overflow, complemented by a double tank for clean and waste water, enhancing the efficiency of the Onyx 8.0 Autoclave.
PHD (Pre-Heating Device) System
A preheating system with stand-by for minimum temperature maintenance, significantly reducing the time of all sterilization cycles on this Tecno-Gaz Onyx 8.0 Autoclave.
ID System with Password Protection
An integrated operator authentication system protected by a password, permitting, at the end of the cycle, association of the operator to the sterilized load, ensuring full traceability for the Onyx 8.0 Autoclave.
