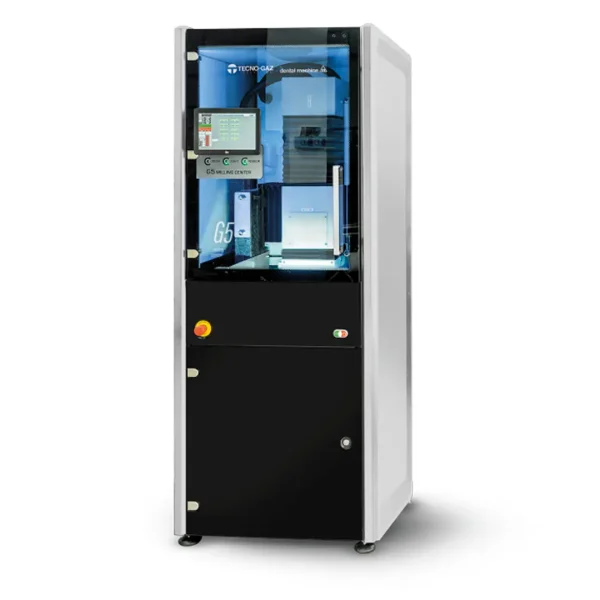

Tecno-Gaz G5
Milling Machine
High-End 5-Axis Wet & Dry Milling with Full Granite Structure
5-Axis Wet & Dry
Full Granite Axes
20-Tool Capacity
G5 Overview
The Tecno-Gaz G5 Milling Machine represents the high-end of dental milling technology, designed for laboratories with high production volumes and a demand for superior quality implant solutions. This 5-axis continuous interpolation CNC milling machine stands out with its unique construction: all three Cartesian axes (X, Y, Z) are made of black granite from South Africa, a feature unrivaled in the dental industry. This granite structure ensures exceptional dimensional and thermal stability, superior wear resistance, and excellent vibration absorption, leading to unparalleled precision, repeatability, and durability.
The G5 is a universal machine capable of milling any type of prosthetic work from a vast range of materials, including soft materials (wax, PMMA, PEEK) and hard metals (titanium, Cr-Co, zirconium dioxide). It supports both dry milling (with an efficient dust extraction system) and wet milling (equipped with a closed-circuit water pump and filters for lubrication during hard material processing). Featuring a powerful Jäger spindle with up to 50,000 rpm and a 2.1 KW power output, along with a 20-tool automatic changer, the G5 ensures efficient, high-quality milling and significantly reduces manual finishing times for complex restorations like custom abutments, bars, and screw-retained bridges.Read More...
Technical Specifications
Number of Axes
5-axis continuous interpolation
Milling Type
Dry & Wet Milling
Spindle
Jäger, 2.1 KW max power
Spindle Speed
10,000 - 50,000 rpm
Tool Capacity
20 positions (automatic tool changer)
Tool Shank Diameter
2 to 10 mm
Tool Length
Up to 60 mm
Dimensions (WxHxD)
760 mm x 1960 mm x 1040 mm
Weight
800 Kg
Axis Movement
Linear optical lines on X, Y, Z axes; Brushless motors with encoder
Construction Material
Full black granite structure on X, Y, Z Cartesian axes
Machining Precision
1 µm (0.001 mm)
Linear Axis Resolution
± 0,00005 mm (0.05 μ)
Rotation Axis Resolution
± 0,0008 rad
Cooling System (Wet)
Two filters and a tank with a close circuit water pump
Dust Extraction (Dry)
Connection to central vacuum system
Compressed Air Requirement
External compressor: 7 atm (ext.) - 120 l/min
Power Supply
220÷240 V; 50÷60 Hz (single phase)
Noise Level
<60 dB
Compatible Materials
Wax, PMMA, Resins, Composite, Pre-sintered Zirconium Dioxide, Aluminium Oxide, Hydroxyapatite, Titanium (Grades 2 & 5), Cr-Co, PEEK, Glass Ceramics
Key Features of Tecno-Gaz G5
Full Granite Structure (X,Y,Z Axes)
Unique design with black granite on all three Cartesian axes ensures unmatched precision, stability, and durability.
5-Axis Continuous Interpolation
Enables complex geometries and optimal undercut management for all types of prosthetic works.
Powerful Jäger Spindle
2.1 KW spindle with 10,000-50,000 rpm for efficient and precise machining of a wide range of materials, including hard metals.
Integrated Wet & Dry Milling Systems
Dedicated systems for both wet (with closed-circuit water pump and filters) and dry (with central vacuum connection) milling.
20-Tool Automatic Changer
Automatic tool changer with capacity for 20 tools, maximizing workflow efficiency and reducing manual intervention.
Exceptional Machining Precision
Achieves 1 µm precision with high-resolution linear and rotational axes for superior surface finishes.
High Production Volumes
Structured for the milling of high-quality implant solutions and handling large workloads efficiently.
Universal Material Processing
Capable of milling an extensive range of materials from soft to very hard, including all major dental materials.
