Tecno-Gaz
Europa B Evo24 Autoclave
Advanced Class B Sterilization for Optimal Safety.
Class B Sterilization
24 Liters Chamber
Fractional Vacuum
Tecno-Gaz

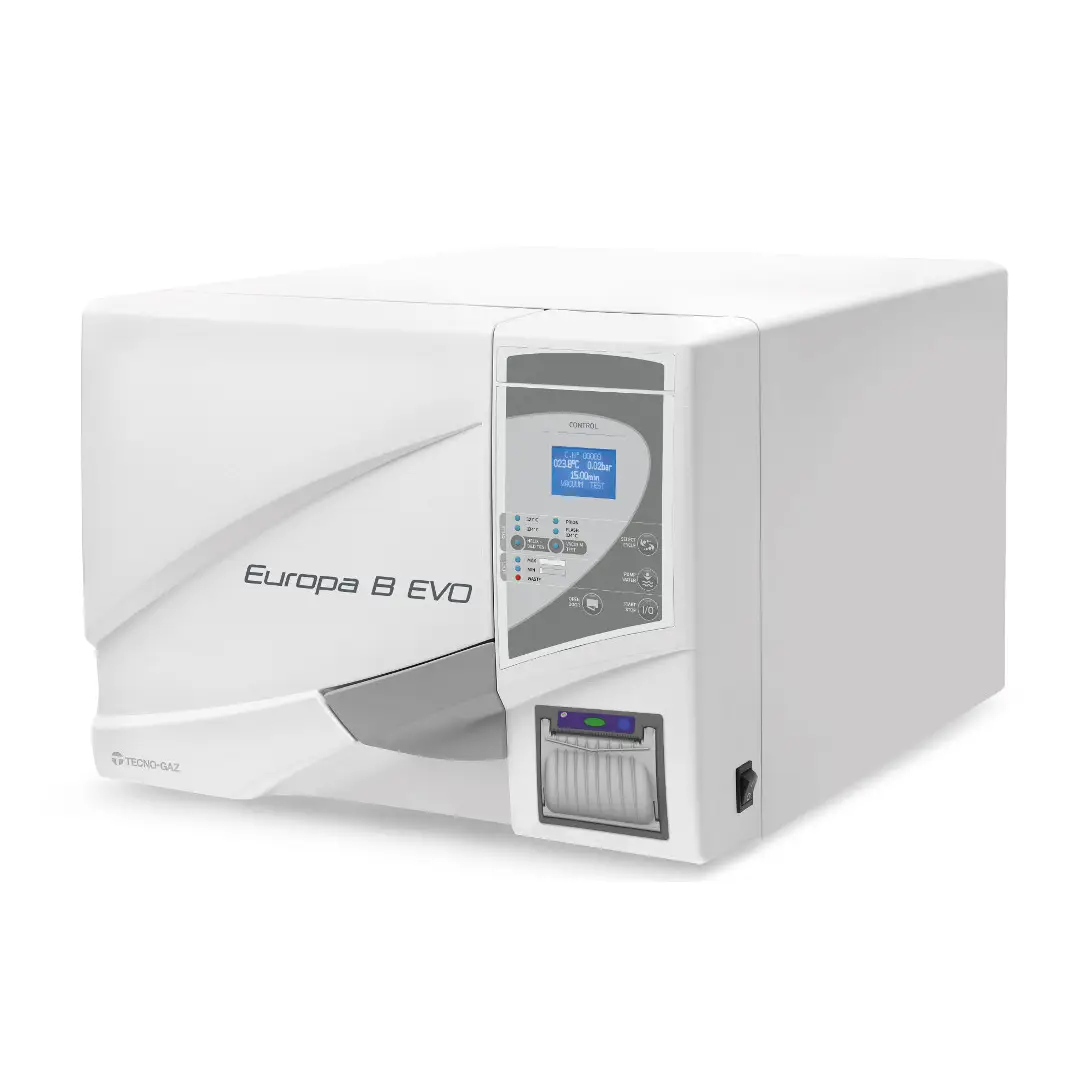

Tecno-Gaz Europa B Evo24 Autoclave Overview
The Tecno-Gaz Europa B Evo24 Autoclave is a cutting-edge Class B sterilizer designed for comprehensive sterilization in medical, dental, and laboratory environments. It ensures the highest level of safety and efficacy for all types of instruments and materials: solids, hollows, porous items, whether free or packaged.
This autoclave stands out with its fractional vacuum system, which effectively removes air pockets, guaranteeing thorough steam penetration even for the most complex loads. Its intuitive control panel, pre-set sterilization cycles, and advanced safety features make it a reliable and user-friendly solution for preventing biological risks. The Europa B Evo24 is built with a robust AISI 304 stainless steel circular chamber and incorporates a P.I.D. system for continuous control and monitoring of operational parameters, ensuring consistent and safe sterilization cycles. Read More ...
Technical Specifications
Type
Class B Autoclave
Chamber Volume
24 Liters
Chamber Material
AISI 304 Stainless Steel
Chamber Dimensions
Ø 245 mm x Depth 500 mm
Max Load Capacity
8 kg (Solid), 2 kg (Porous)
Vacuum System
Fractional Vacuum (4 stages)
Max Vacuum Level
0.9 bar
Sterilization Cycles
134°C (wrapped/unwrapped), 121°C (wrapped/unwrapped), Flash, Prion
Control System
P.I.D. (Proportional Integral Derivate)
Display
Graphic Display (Blue)
Water Filling
Pump-operated with auto-stop; Optional direct connection
Safety Devices
Electromagnetic, Electrical, Dynamic door locks
Connectivity
Connectors for B-Test Biological Incubator
Power Supply
230V~50Hz
Max Power Consumption
2200 W
Dimensions (WxDxH)
480 x 600 x 450 mm
Weight
58 kg
Key Features of Tecno-Gaz Europa B Evo24 Autoclave
Fractional Vacuum System
Alternates negative and positive pressure phases for complete air removal, ensuring optimal steam penetration for all load types, especially hollow and porous materials.
P.I.D. System
Proportional Integral Derivate system for constant control and monitoring of the operating system, providing real-time diagnostics and quick intervention in case of anomalies.
Triple Safety Door Lock
Features electromagnetic, electrical, and dynamic safety devices on the door for maximum operator and patient safety during operation.
Automatic Barometric Alignment
Ensures consistent performance regardless of atmospheric pressure variations, enhancing the reliability of sterilization cycles.
Dedicated Sterilization Cycles
Includes pre-set cycles at 134°C and 121°C for various materials, plus "flash" and "prion" cycles for specific sterilization needs.
Advanced Water Management
Features independent tanks for clean and used water, with pump-operated automatic filling and optional direct water connection.
B-Test Biological Incubator Ready
The only autoclave globally equipped with connectors for managed B-Test biological incubator, offering advanced biological control and traceability.
Integrated Test Cycles
Equipped with Helix test, Bowie & Dick test, and Vacuum test cycles for periodic verification of device functionality and sterilization effectiveness.
