Fomos Suction Unit FoVac-06

  • Model: FoVac-06
  • Suction Flow Rate: 760 L/min
  • Max Vacuum: -32 KPa
  • Power: 1.45 kVA
  • Noise Level: 70 dB(A)
  • Target Use: Hospitals, specialized surgical centers, maximum demand environments.
Fomos Suction Unit FoVac-06

Fomos
Suction Unit FoVac-06

Intelligent Suction. Powerful Performance.

Reliability New Generation Unfailing Power

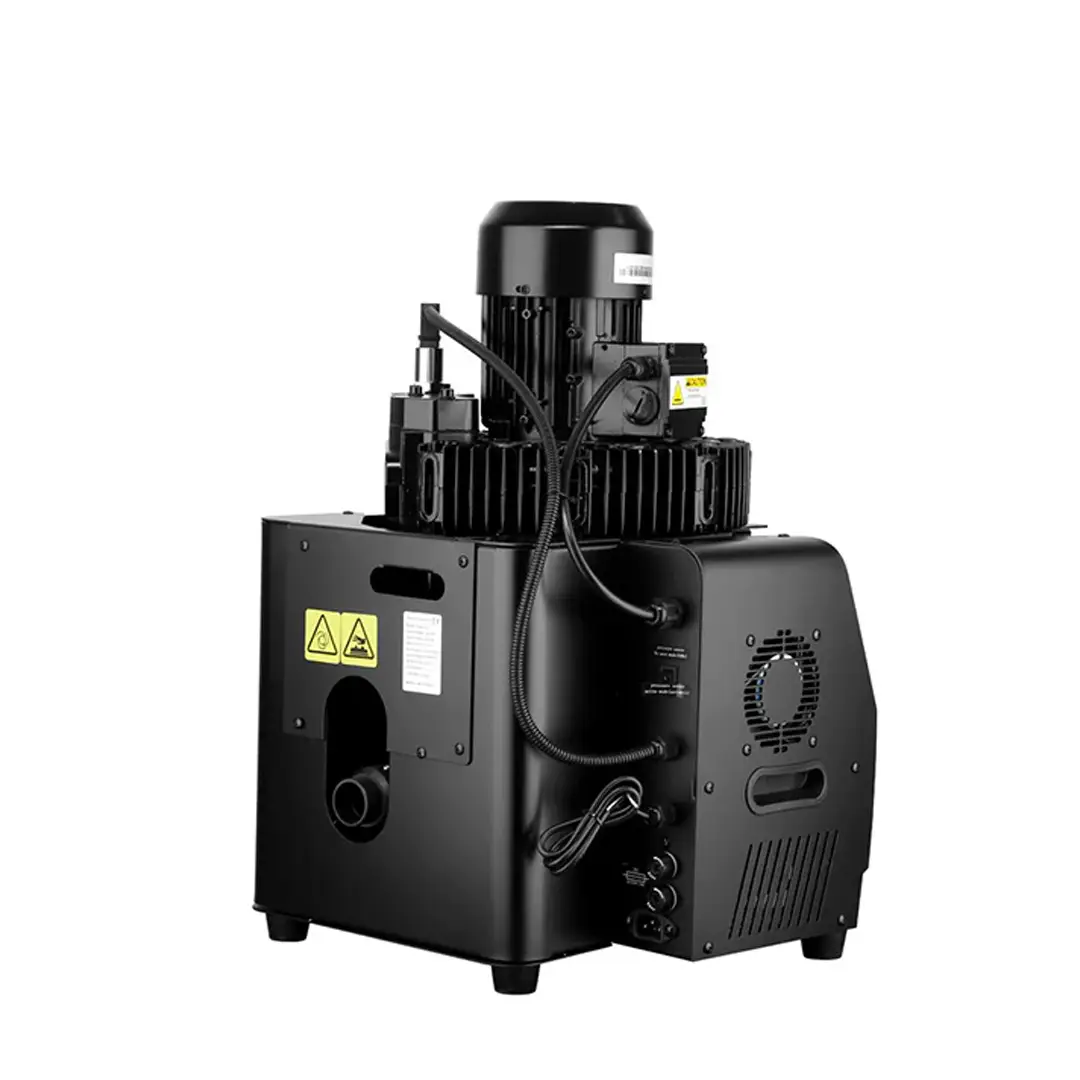

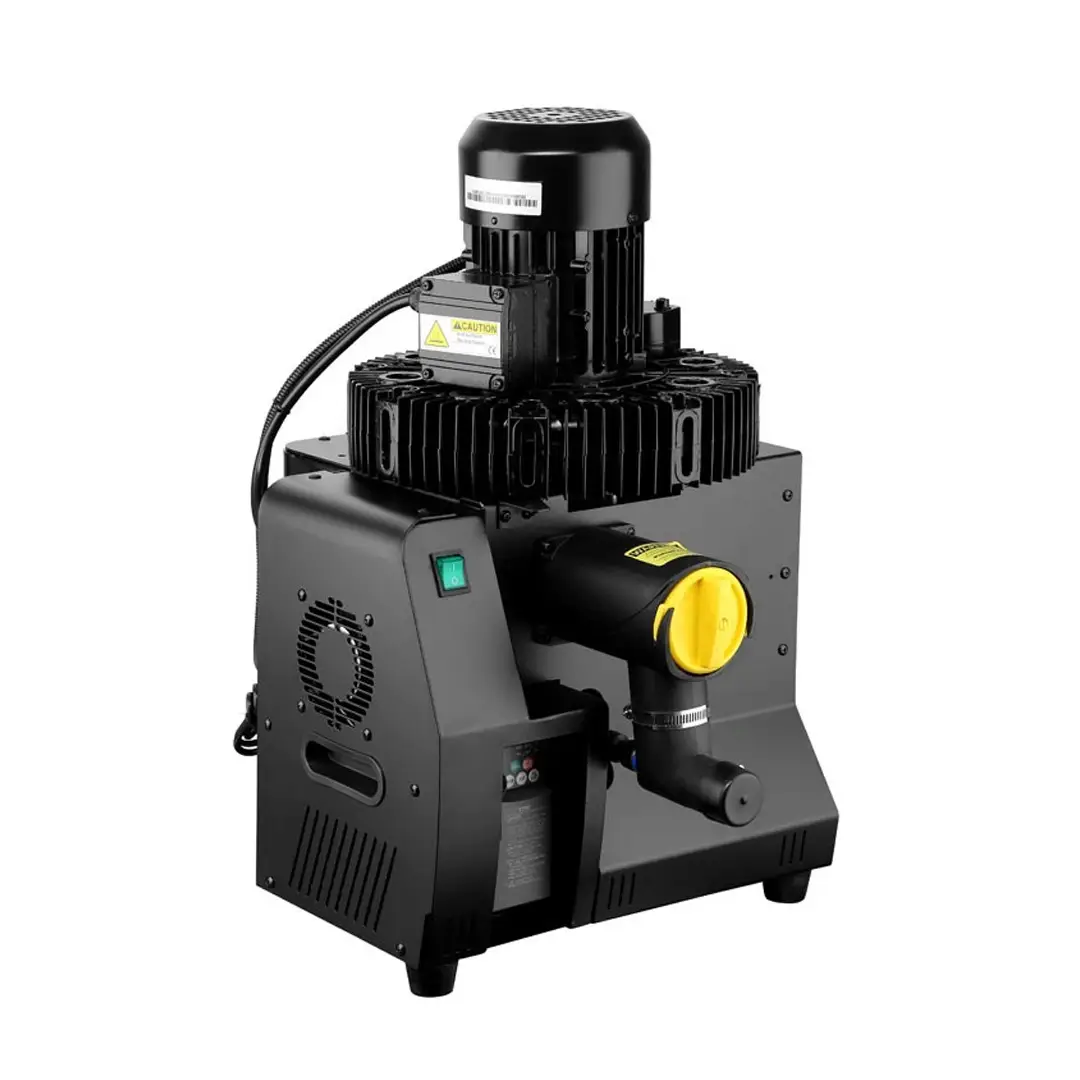

Fomos Suction Unit FoVac-06 Overview

The Fomos Suction Unit FoVac-06 represents the pinnacle of the FoVac series, engineered to deliver absolute maximum suction power for the most demanding clinical, hospital, and advanced surgical settings. It boasts an unparalleled suction flow rate of 760 L/min and our highest vacuum pressure at an immense -32 KPa, guaranteeing superior fluid and debris removal during the most complex and lengthy procedures, including maxillofacial surgery.
Fomos Suction Unit FoVac-06 system intelligently commands its high-torque, variable-speed motor (0-3600 r/min), providing uncompromising, instantaneous power on demand while maintaining remarkable energy efficiency. Get more information here.

Technical Specifications

Model
FoVac-06
Electric Voltage
AC220V-50Hz
Work Rate
1.45 (kVA)
Suction Flow Rate
760 (L/min)
Max Vacuum
-32 (KPa)
Transfer Speed
0-3600 (r/min)
Noise Sound
70 (dB(A))
Product Size
410*510*630 (mm)
Package Size
480*530*750 (mm)
Net Weight
36 (Kg)
Gross Weight
46 (Kg)

Key Features of Fomos Suction Unit FoVac-06

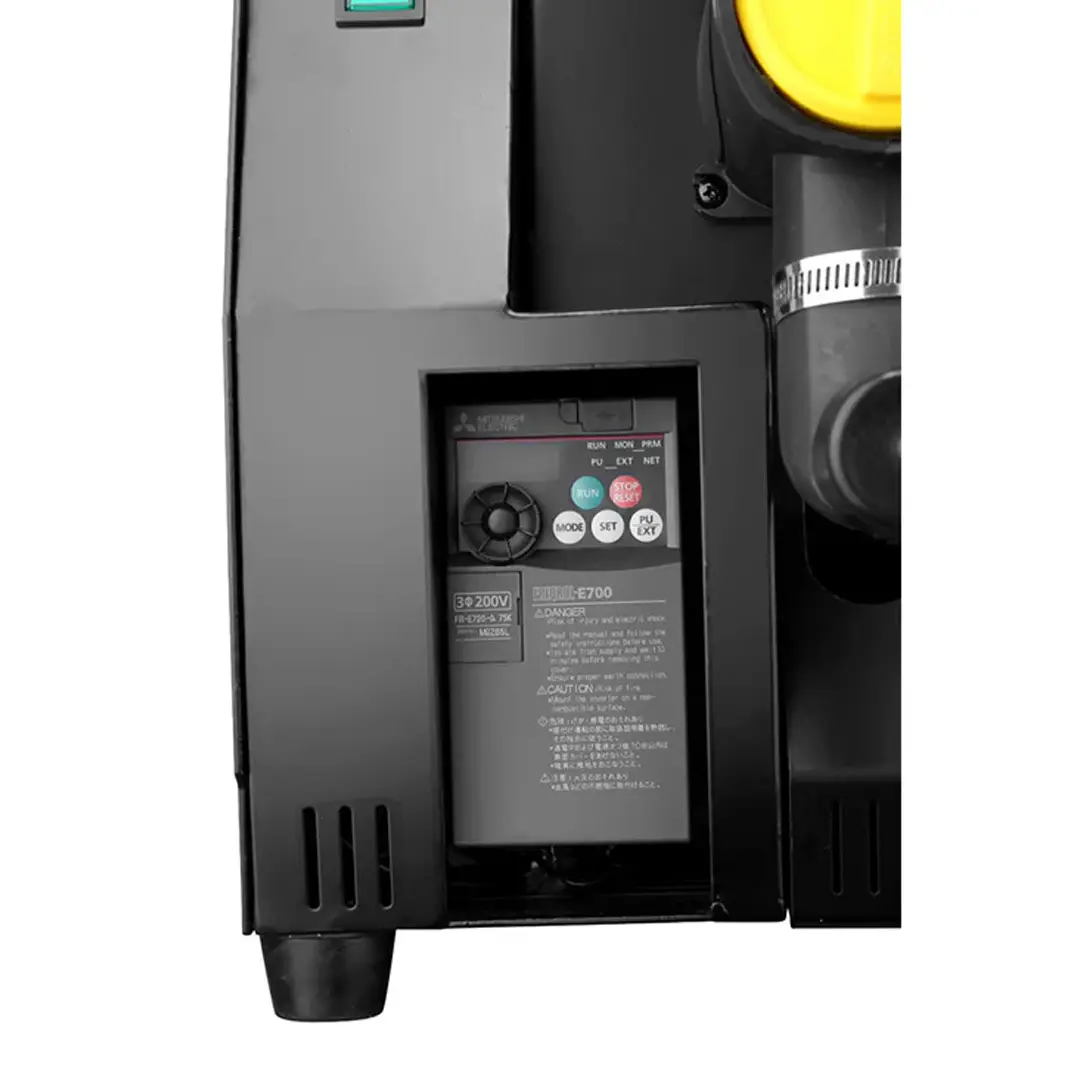

Control System with Inverter

Advanced inverter technology provides flexible and intelligent control to optimize suction power, maximizing user satisfaction and clinical efficiency.

Automatic Vacuum Regulation

An automatic pressure sensor reacts to clinical demand, adjusting suction power accordingly (e.g., increasing frequency from 40-45Hz for one user to 50-55Hz for two users).

Extended Motor Lifespan

By intelligently managing motor speed, the system prevents overheating, significantly saves energy, and extends the motor’s operational lifetime.

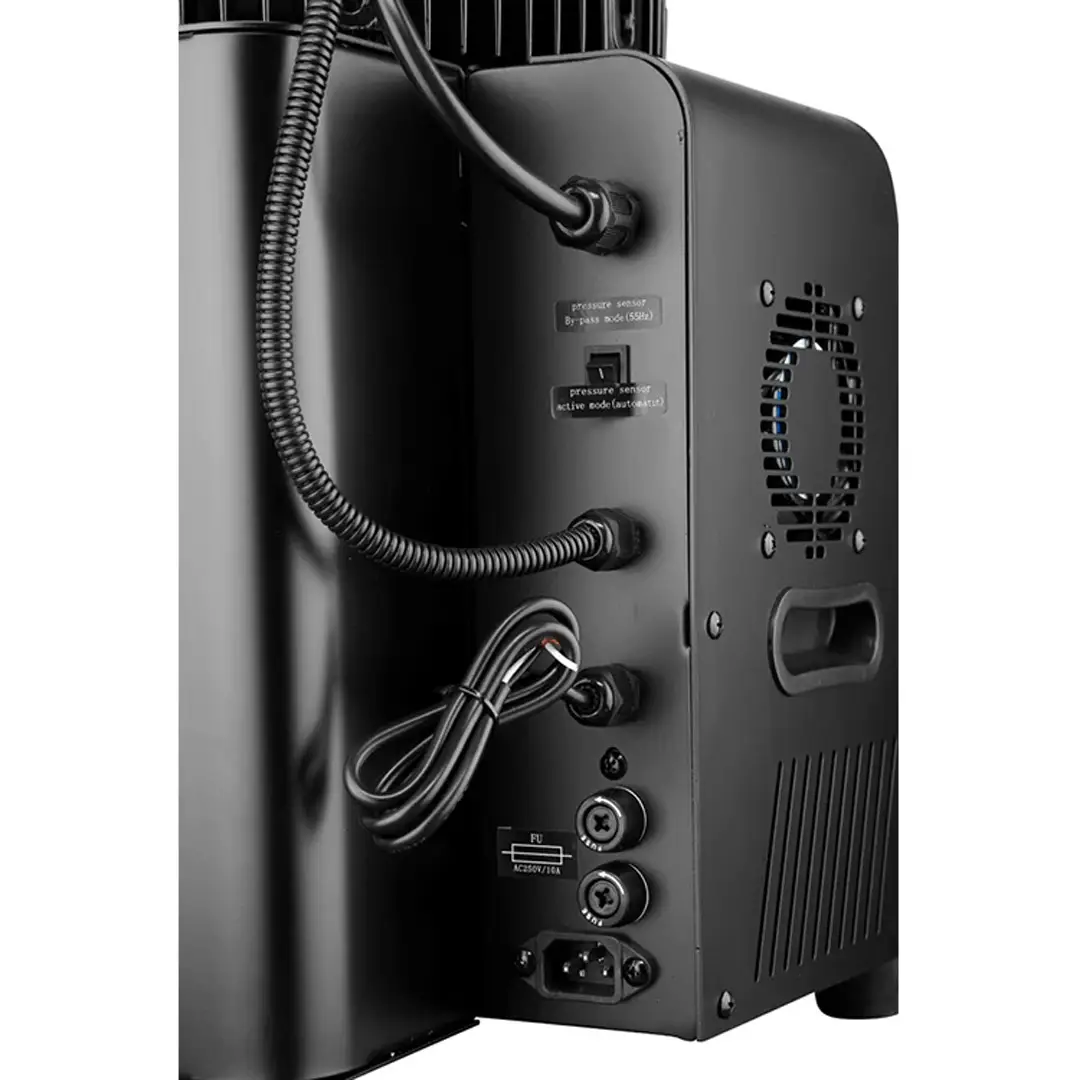

Emergency By-pass Mode

If the pressure sensor malfunctions or maximum power is needed instantly, the By-pass mode provides a quick and easy solution by setting the motor to 55Hz immediately.

Reliable Performance

Engineered to deliver high and stable suction power (up to -32 KPa) to meet the needs of all types of dental surgeries and procedures.

Consistent Motor Speed

Equipped with motors running at speeds from 2900 to 3600 rpm, ensuring a continuous and strong airflow.

Professional Design

Features a robust metal body and a compact footprint, built for long-term use in demanding clinical environments.

Standard Operating Voltage

Compatible with the standard AC220V/50Hz voltage for seamless integration into most clinics and medical facilities.
