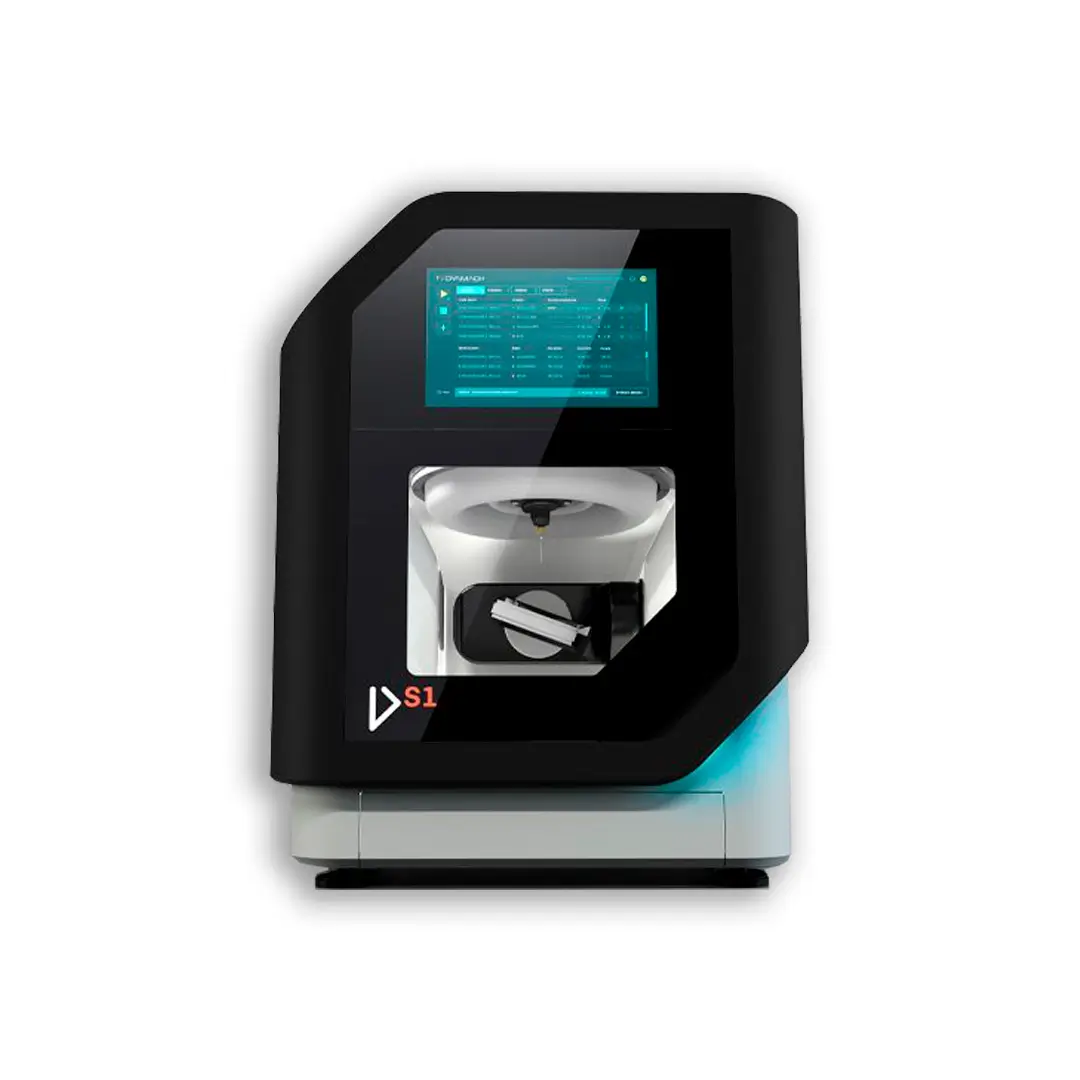

Dyamach DS1 Milling Machine Overview
The Dyamach DS1 is a 5-axis compact milling machine designed for dry machining processes, specifically suited for crafting crowns and bridges. The Dyamach DS1 is an innovative machine which boasts a new design that combines agility, precision, and exceptional accessibility. Its primary goal is to efficiently and reliably produce a wide range of soft materials needed for dental prostheses. The user-friendly interface of the Dyamach NC makes it easy to operate, while its robust construction ensures durability without compromising ergonomics or portability .
Technical Specifications
Size
52 x 54 x h65 cm / 20.47 x 21.26 x h25.59 inch
Weight
65 Kg / 143.3 lb
Spindle power
0,75 kW
Spindle speed
100.000 rpm
Number of tools
14
Tool shaft
Ø 3 mm - 4 mm / 0.12 inch - 0.16 inch
Rated pressure
6 Bar
Blank diameter
Ø 98±0.5h
Key Features of Dyamach DS1 Milling Machine
Size and weight
52 x 54 x h65 cm / 65 Kg 20.47 x 21.26 x h25.59 inch / 143.3 lb.
Spindle power and speed
0.75 kW / 100.000 rpm
Machining type
Dry
Collet diameter >
Ø 3 mm / 4 mm Ø 0.12 inch / 0.16 inch
Automatic calibration
YES
Spindle tilt degrees
A-axis 360° B-axis -180° /+40°
Removable rack-type tool magazine
14 tools
Rapid loading / unloading
Disc holder
