Dazzle
3D Printer L300
Industrial-Grade LCD (MSLA) Stereolithography Printer
4K Resolution
293x165x300mm Build Volume
Automated Resin & Air Systems
Dazzle

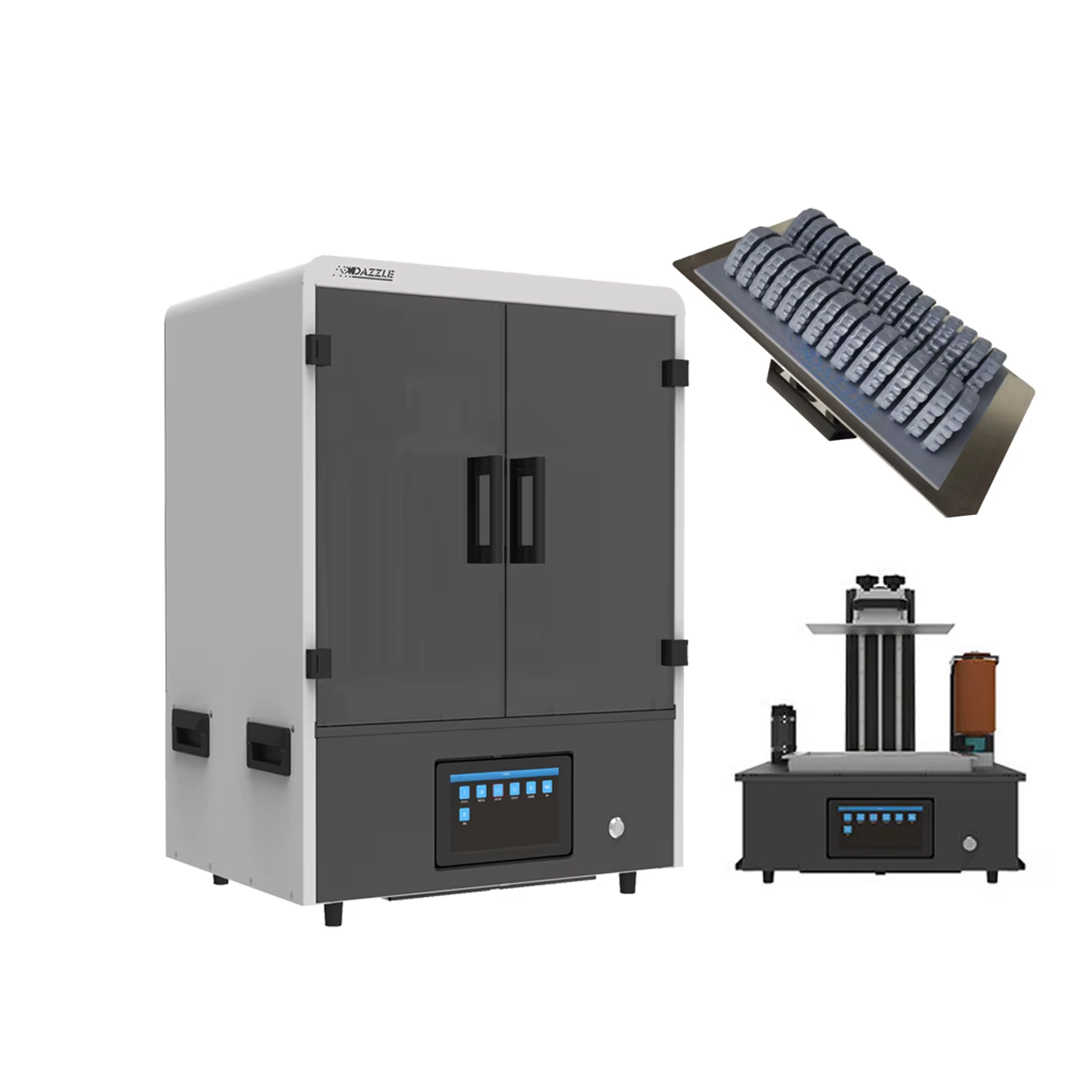

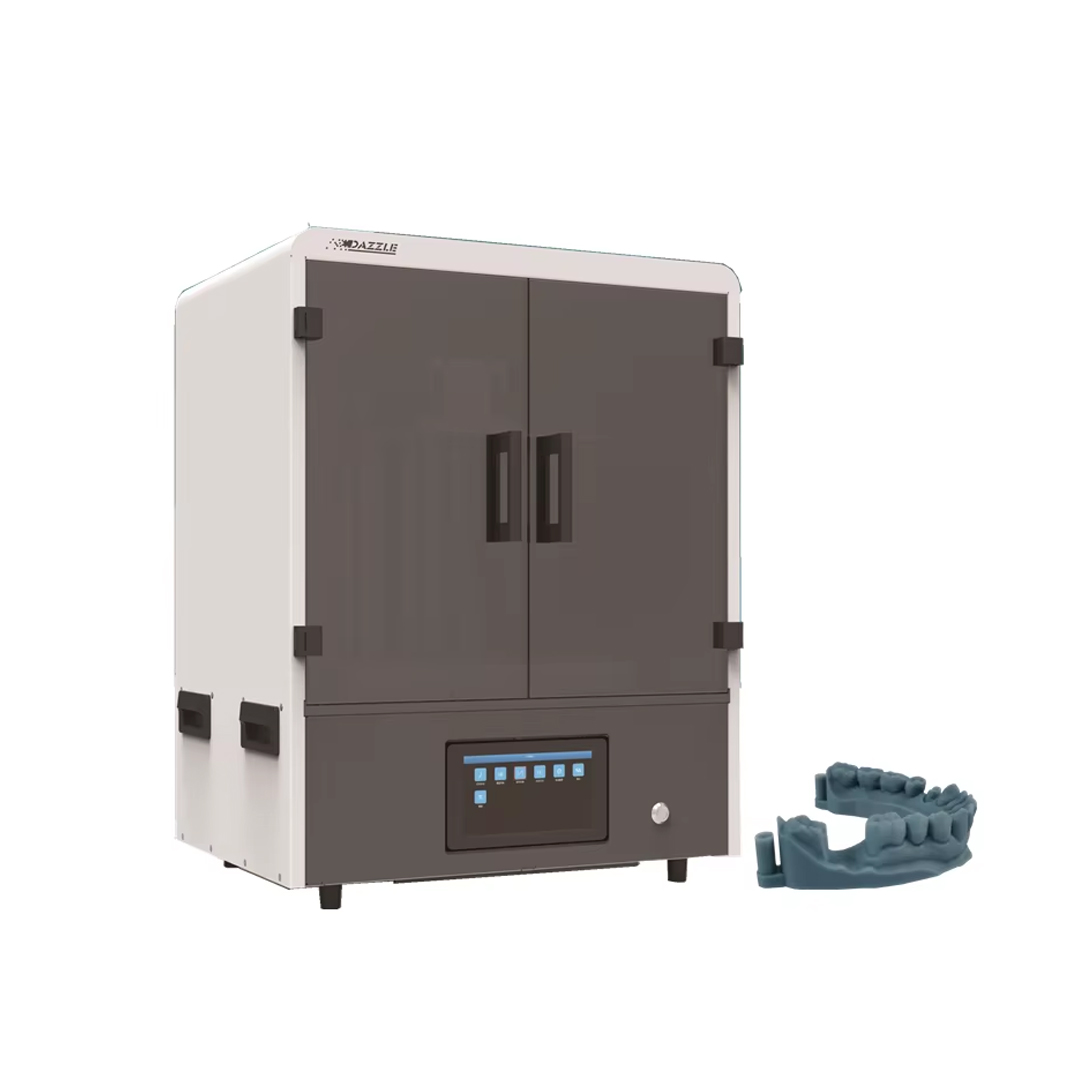

Dazzle 3D Printer L300 Overview
Dazzle 3D Printer L300 is an industrial-grade LCD (MSLA) Stereolithography printer designed for high-volume, high-precision manufacturing.It features a large build volume of 293(L)*165(W)*300(H)mm and boasts a 4K (3840*2160 pixels) LCD panel for exceptionally detailed pattern generation. The printer uses a powerful 405nm, 260 Watt, parallel uniform UV LED light source.
With a Z-axis precision of 10 microns and XY-axis precision of 76 microns, Dazzle 3D Printer L300 ensures outstanding surface finish and accuracy. It includes automated air-purification system, and a streamlined water cooling system.Connectivity options include USB, Ethernet, and multi-user Wi-Fi uplink.The Dazzle 3D Printer L300 is also equipped with a smart 7-inch full-color touch screen that is 90° rotatable.Get more information here.
Technical Specifications
Model NO.
L300 3D Printer
Technology Type
LCD (MSLA) Stereolithography
Overall Size
567(L)*439(W)*702(H)mm
Build Volume (Print Size)
293(L)*165(W)*300(H)mm
Printing Speed
12-36mm/hr, adjustable
Net Weight
45kg
Light Source
405nm, 260 Watt, parallel uniform UV LED light
Resolution
4K (3840*2160 pixels) LCD panel
Layer Thickness
0.025/0.035/0.05/0.1 mm
Precision
Z Axis: 10 microns, XY Axis: 76 microns
Z-Axis Slide
High-precision dual Z-Axis slides
Input Format
.STL/.OBJ/.SLC/.DDEP/.DDWP
Cooling System
Streamlined water cooling system + Air cooling system
Resin Fill System
Automated resin fill system (Easily replaceable)
Air-purification System
Automated air-purification system
Connectivity
USB/Ethernet & multi-user uplink for Wi-Fi
Screen
Smart 7 inches full-color touch screen, 90° rotatable
Software
DDStarter
Systems Requirement
Windows, Mac
Supports
Automatic and manual supports generation (optional)
Resin
Dazzle resin, compatible with 3rd party resin.
Input Power
100-240V, 50-60Hz, 2A
Warranty
One year warranty, lifetime free technical support consult
Key Features of the L300
4K LCD Panel
High-resolution 4K (3840*2160 pixels) LCD panel for precise and detailed prints.
Large Build Volume
Expansive build volume of 293x165x300mm for larger models and batch production.
Advanced Cooling Systems
Features both streamlined water cooling and air cooling systems for stable operation.
Automated Systems
Includes automated resin fill and air-purification systems for enhanced convenience and efficiency.
Smart Touch Screen
A 7-inch full-color touch screen with 90° rotation for intuitive control and monitoring.
