Tecno-Gaz Onyx 6.0 Autoclave
The Next Evolution in Compact, High-Capacity Class B Sterilization.
Class B Sterilization
6 Liter Chamber
Advanced Drying System
Overview of Tecno-Gaz Onyx 6.0 Autoclave
The Tecno-Gaz Onyx 6.0 Autoclave represents the pinnacle of modern Class B sterilization, building upon the success of its predecessors like the Tecno-Gaz Onyx 5.0 Autoclave. Designed for demanding dental practices, medical clinics, and specialized laboratories, the Onyx 6.0 delivers enhanced efficiency and capacity within an incredibly compact footprint. Its innovative 6-liter chamber and advanced features make it an ideal choice for facilities seeking superior performance and space optimization.
This state-of-the-art autoclave features an intuitive touch-screen display for seamless control over its comprehensive range of pre-set sterilization cycles, ensuring ease of use and consistently reliable results. The Onyx 6.0 incorporates a powerful fractional vacuum system for thorough air removal, guaranteeing optimal steam penetration for all types of instruments – solid, hollow, or porous, packaged or unpackaged. Key advancements include an advanced drying system for perfectly dry instruments, an energy-saving pre-heating system, and a 20% increase in loading capacity compared to similar compact models. Adhering to the highest safety and performance standards, the Onyx 6.0 provides superior biological risk prevention and dependable operation. For the latest details and product sheet, refer to the Official Tecno-Gaz Onyx 6.0 Product Page.
Technical Specifications for Tecno-Gaz Onyx 6.0 Autoclave
Type
Class B Autoclave
Chamber Volume
6 Liters (approx. 20% increased capacity vs. compact 5L models)
Chamber Material
AISI 304 Stainless Steel
Vacuum System
Advanced Fractional Vacuum with Thomas Gardner Denver Pump
Sterilization Cycles
134°C (wrapped/unwrapped), 121°C (wrapped/unwrapped), Prion, and custom cycles
Control System
Microprocessor with revolutionary PID system
Display
High-Resolution Color Touch-Screen
Water Filling
Multiple options: Top fill, Front suction, Direct connection to Pura Plus reverse osmosis system
Safety Devices
Electromagnetic door lock, safety valves, advanced self-diagnostics
Connectivity
USB port for data logging (Optional IoT connectivity available)
Power Supply
230V~50Hz
Max Power Consumption
2.2 kW
Dimensions (WxDxH)
474*497*620mm.
Weight
64 kg
Key Features of Tecno-Gaz Onyx 6.0 Autoclave

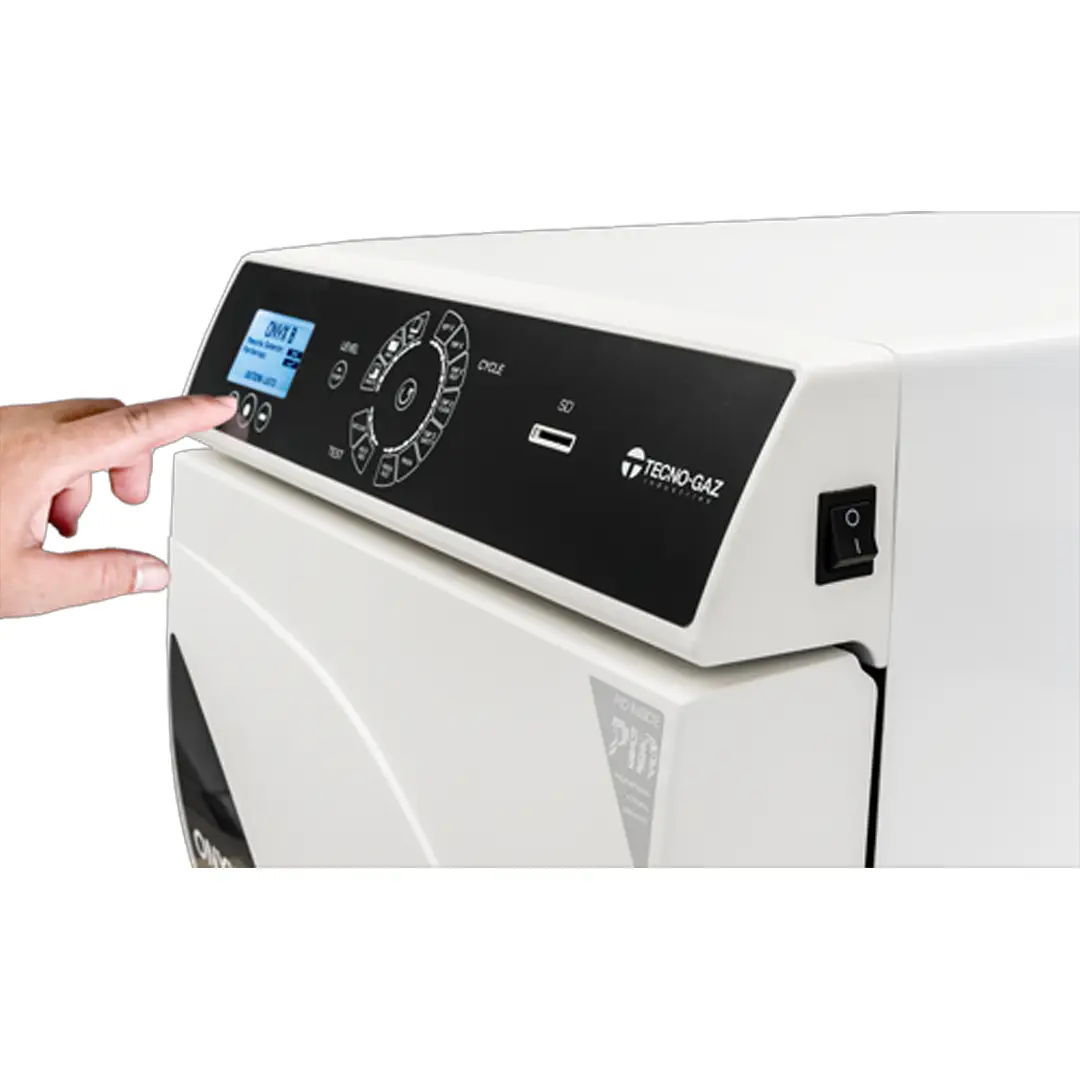

Intuitive Touch-Screen Display
Easily navigate and select sterilization cycles with a modern, user-friendly color touch-screen interface.
Enhanced 6-Liter Compact Design
Offers powerful Class B sterilization capabilities with 20% more loading capacity in an ultra-compact footprint (only 62cm deep), perfect for space-constrained practices.
Advanced Drying System
Ensures instruments are perfectly dry at the end of each cycle, preventing corrosion and facilitating immediate use or packaging.
Energy Saving Pre-Heating System
Reduces cycle times and minimizes power consumption, lowering operational costs and contributing to environmental sustainability.
Revolutionary PID Control System
Continuously monitors and adjusts autoclave parameters, performing automatic technical interventions for maximum reliability and minimal downtime.
Versatile Water Filling Options
Flexible water management with options for top fill, front suction, or direct connection to advanced reverse osmosis systems like Pura Plus.
