Elosdent i5A Milling Machine
High-precision 5-axis milling for a wide range of dental materials, including titanium and CoCr.
5-Axis Milling
High Precision (5μm)
20-Tool ATC

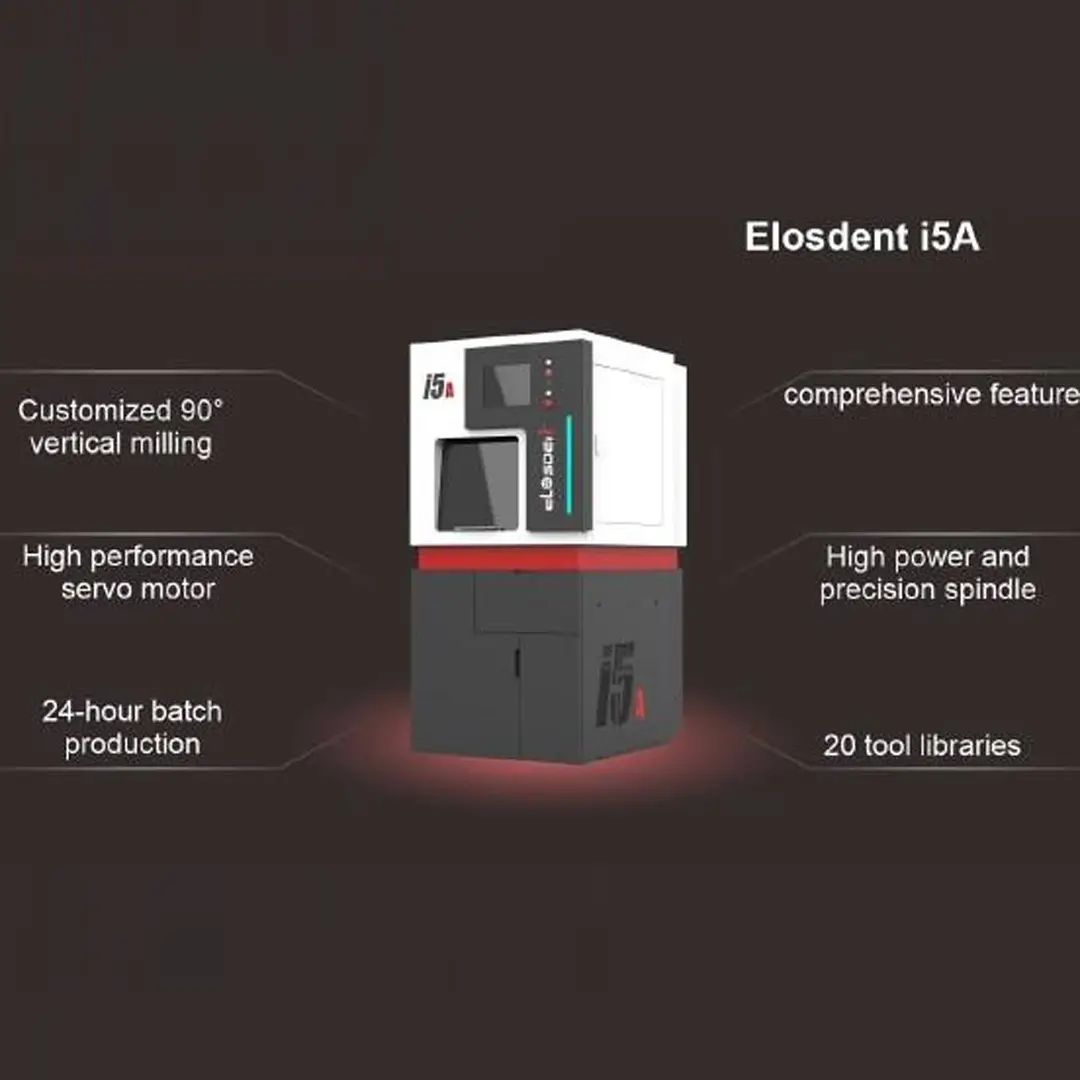

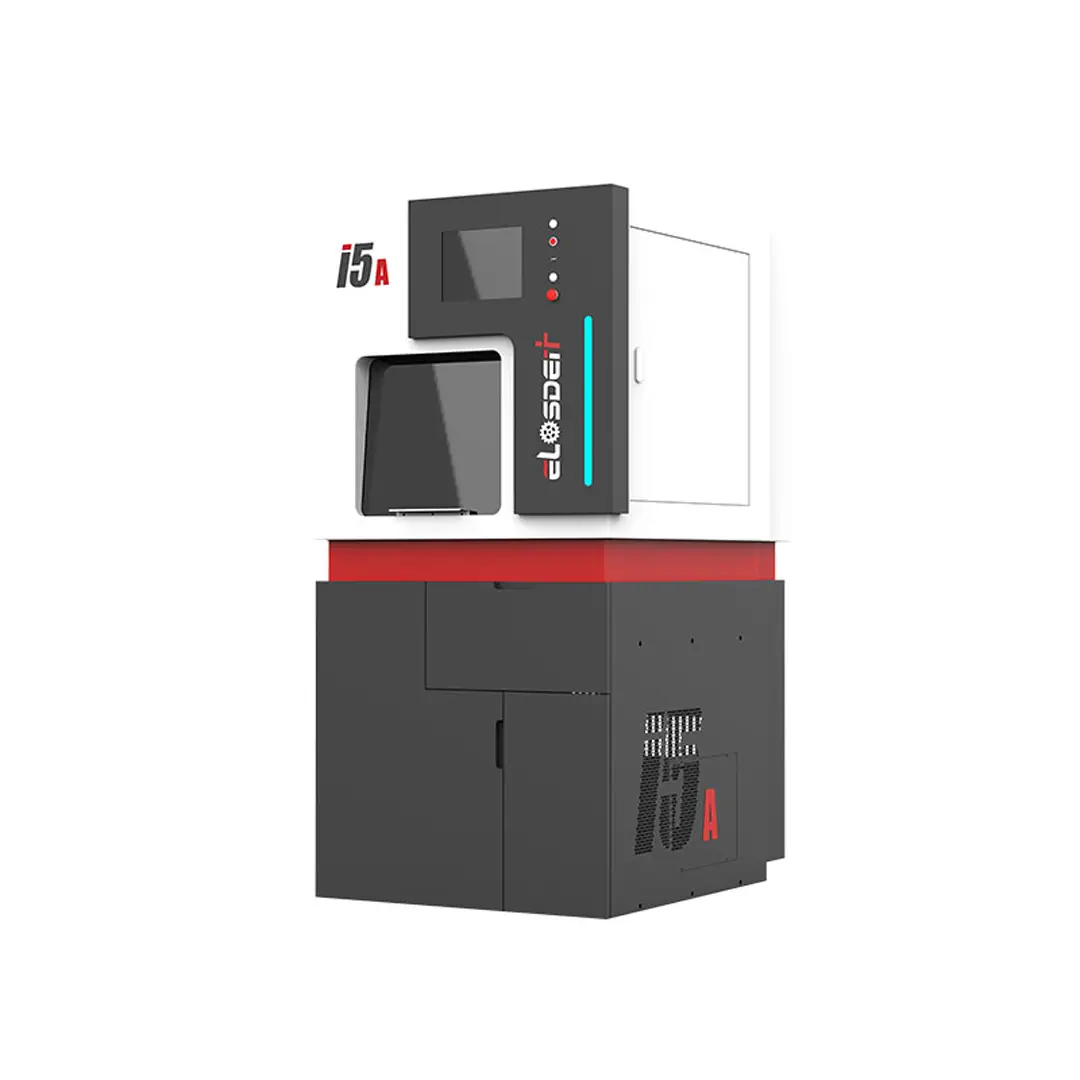

Elosdent i5A Overview
The Elosdent i5A is a robust and highly precise 5-axis dental milling machine engineered for performance and reliability. Built on a heavy-duty cast iron bed with a durability of over 4 years, it guarantees maximum stability and vibration damping for consistently accurate results. The machine's mechanics, featuring a high-precision assembly process, ground lead screws, and high-quality guide rails, ensure flawless operation and exceptional repeatability.
Equipped with a powerful 2.7kW spindle reaching speeds of up to 60,000 RPM and a high-speed servo system, the i5A delivers efficient and smooth milling across a wide spectrum of materials, from Wax and PMMA to hard metals like Titanium and CoCr. Its 20-tool automatic tool changer (ATC) and high-precision tool compensation system enable complex, unattended operations, significantly improving lab productivity. The i5A stands as a comprehensive solution for modern digital dentistry, offering unparalleled precision for crowns, abutments, bars, and frameworks.
Technical Specifications
Axes
5 Simultaneous Axes
Axis Angle
A: ±30° | B: ±40° (140x150 disk) / -50° to +310° (98mm disk)
Spindle Power / Speed
2.7kW / 60,000 RPM
Milling Accuracy
5μm
Repeatability Accuracy
3μm
Tool Magazine
20 Tools (Automatic Tool Changer)
Compatible Materials
Titanium, CoCr, PMMA, PEEK, WAX, Resin Ceramics
Machine Size (W×D×H)
820 × 1050 × 1780 mm
Weight
950 kg
Bed Structure
Cast Iron Bed
Key Features of Elosdent i5A
5-Axis Simultaneous Milling
Provides exceptional flexibility to fabricate complex geometries, undercuts, and detailed restorations with ease.
High-Speed Spindle
The powerful 2.7kW spindle with 60,000 RPM ensures fast, efficient, and smooth milling for superior surface quality.
20-Tool Automatic Changer
Large capacity tool magazine allows for unattended operation and seamless transitions between different tools and materials.
Exceptional Precision (5μm)
Achieves extremely high accuracy for perfect fits, supported by a high-speed servo system and precision mechanics.
Versatile Material Milling
Capable of milling a wide range of materials including Titanium, CoCr, PMMA, PEEK, Wax, and modern resin ceramics.
Heavy-Duty Cast Iron Bed
Provides a solid, stable foundation that minimizes vibrations, ensuring consistent accuracy and long-term machine life.
Efficient Milling Times
Optimized for speed: produce a crown in 18-23 mins, an abutment in 15 mins, and complex bars in as little as 3 hours.
Precision Mechanics
Utilizes ground lead screws and high-quality guide rails for smooth, reliable movement and repeatable accuracy.
Advanced Servo System
A high-speed, high-precision servo system drives the machine's axes, delivering rapid yet accurate performance.
