Elosdent i5 Milling Machine
The Elosdent i5 Milling Machine: Unmatched precision, versatility, and efficiency for comprehensive dental prosthetic fabrication.
5-Axis Milling
Wet & Dry Capability
High Precision (5 µm)
Wide Material Range

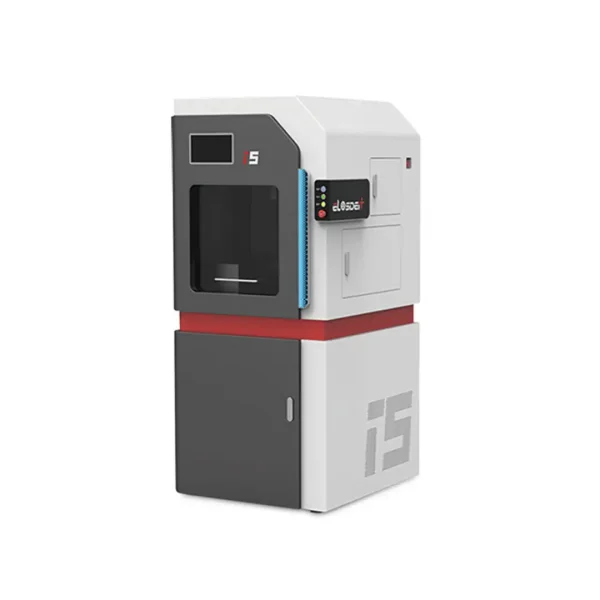

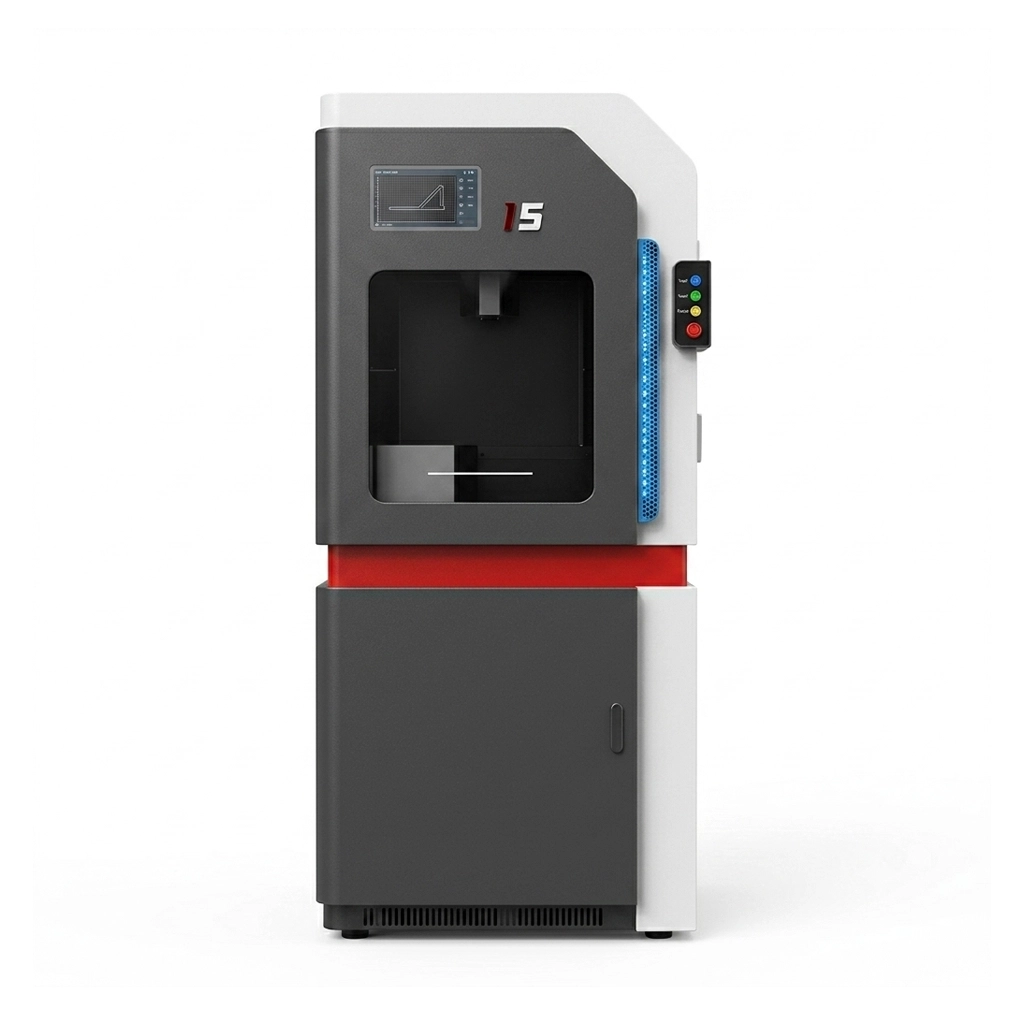

Elosdent i5 Milling Machine Overview
The Elosdent i5 Milling Machine is a state-of-the-art 5-axis wet/dry milling unit, meticulously engineered to meet the demanding requirements of modern dental laboratories and clinics. It delivers unparalleled precision, efficiency, and versatility in the fabrication of a vast array of dental prosthetics, including intricate crowns, bridges, inlays, onlays, veneers, custom abutments, and more. With its advanced capabilities, the Elosdent i5 ensures exceptional accuracy and a superior surface finish across all your restorative work.
Distinguishing itself with true simultaneous 5-axis motion and both wet and dry milling functionality, the Elosdent i5 effortlessly processes a comprehensive spectrum of dental materials. From robust Titanium and aesthetic Zirconia to versatile PMMA, durable PEEK, precise WAX, innovative Resin Ceramics, and strong CoCr, this machine handles it all. Its high-performance spindle and generous 32-tool magazine minimize manual intervention, optimizing workflow for both high-volume production and specialized custom fabrications. The Elosdent i5's compact design and robust construction ensure reliable, long-term operation within any dental facility, boosting productivity and enabling a diverse range of in-house manufacturing capabilities.Get more information here
Technical Specifications
Milling Axes
5 simultaneous axes
A-axis Angle
±35°
B-axis Angle
±35° for 140×150 disk cube / ±45° for 98mm disk
Accuracy
5 µm
Repeatability Accuracy
3 µm
Weight
1200 kg
Tool Magazine
32 tools
XYZ Limit
160×320×200 mm
Machine Size
940×1080×1910 mm
Spindle Power
3.0 kW
Max Speed
40,000 rpm
Processable Materials
Titanium (square disk / round disk / blank), PMMA, PEEK, WAX, Resin ceramics, CoCr
Milling Time (Approx.)
Crown: 18–23 minutes, Abutment: 15 minutes, Bar: 3–3.5 hours, Framework: 3–4 hours
Key Features of Elosdent i5 Milling Machine
Advanced 5-Axis Simultaneous Milling
Leverages 5 simultaneous axes for complex geometries and undercuts, ensuring superior fit and marginal integrity for every restoration. Includes precise A-axis (±35°) and B-axis (±35°/±45°) angles.
Integrated Wet & Dry Capabilities
Offers the flexibility to mill both dry materials (Zirconia, PMMA, WAX) and wet materials (Glass-Ceramics, Titanium) with an integrated cooling system, expanding your production versatility.
High-Performance 3.0 kW Spindle
Equipped with a powerful 3.0 kW spindle capable of reaching 40,000 RPM, ensuring rapid material removal and an exceptionally smooth, high-quality surface finish.
Large 32-Tool Magazine
Features an expansive automatic tool changer with 32 positions, minimizing manual intervention, enabling continuous and unattended operation, and supporting diverse tooling needs.
Exceptional Precision and Repeatability
Boasts an accuracy of 5 µm and a repeatability accuracy of 3 µm, guaranteeing consistent, highly accurate restorations that meet the highest clinical standards.
Wide Range of Processable Materials
Capable of processing Titanium (various forms), PMMA, PEEK, WAX, Resin ceramics, and CoCr, providing comprehensive material flexibility for any dental indication.
Optimized Milling Times
Achieves impressive milling times, such as 18–23 minutes for a crown and 15 minutes for an abutment, enhancing laboratory throughput and efficiency.
Robust & Optimized Machine Design
Despite its extensive capabilities, the machine features a compact footprint (940×1080×1910 mm) and robust construction, weighing 1200 kg for stability and durability.
High Productivity for Dental Labs
The combination of speed, precision, automation, and material versatility makes the **Elosdent i5 Milling Machine** an ideal solution for increasing productivity and expanding service offerings in dental laboratories.
